Wellbore #00 Wellbore Classification: GW Status: PR - 4/1/2025 Measured TD: 9210 ft. Vertical TD: 9138 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20042630 | Expiration Date: | 11/22/2005 | | Proposed Top PZ Location: | Sec:14 Twp: 5S 96W | Footage: 1650 FSL 990 FWL | | Bottom Hole Location: | Sec:14 Twp: 5S 96W | Footage: 1650 FSL 990 FWL | | Proposed Depth/Form: | 11549 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit: |
| | |

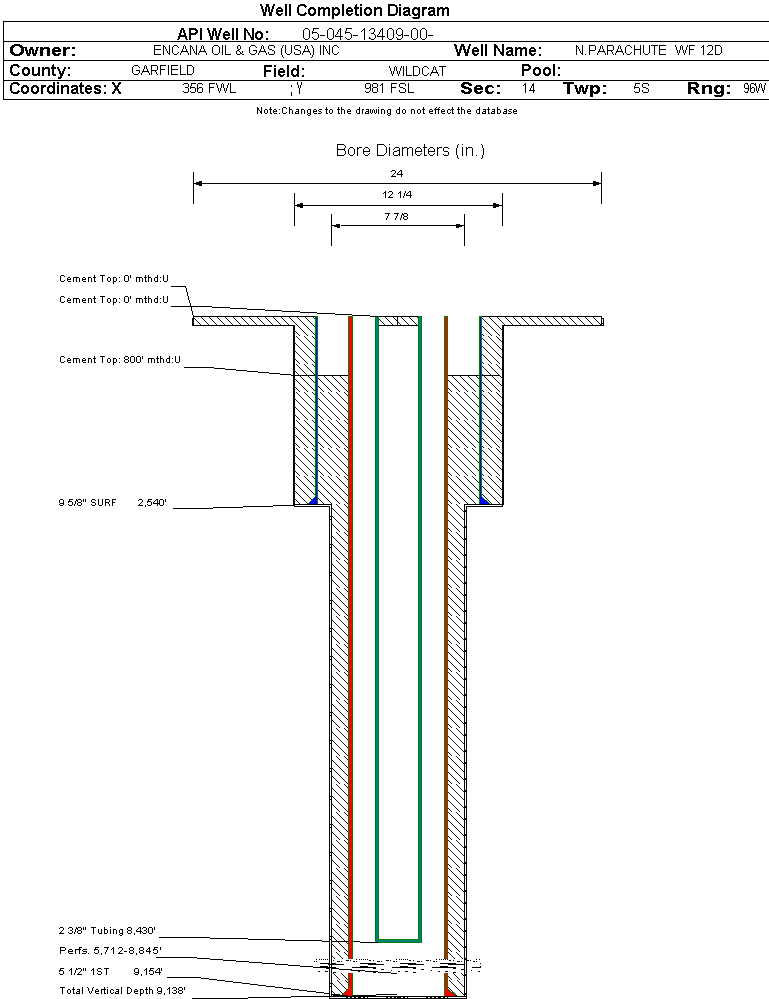

| Wellbore Completed | | Completion Date: | 4/19/2005 | | Spud Date: | 3/24/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 9210 ft. | Measured PB depth: | 8948 ft. | | True Vertical TD: | 9138 ft. | True Vertical PB depth: | 8877 ft. | | Top PZ Location: | Sec:14 Twp: 5S 96W | Footage: 1650 FSL 990 FWL | | Bottom Hole Location: | Sec:14 Twp: 5S 96W | Footage: 1650 FSL 990 FWL | | Log Types: | | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 110 ft., Weight: 0 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 110 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2540 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 780, Top: 0 ft., Bottom: 2550 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 9154 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1705, Top: 800 ft., Bottom: 9154 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 5510 ft. | 9041 ft. | N | N | | ROLLINS | 9042 ft. | 9210 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 4/1/2025 Interval Top: 5712 ft. Interval Bottom: 8845 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 5/24/2005 | Choke Size: | 0.500 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/19/2005 | | Treatment Summary: | STAGES 01-09 TREATED W/TOTAL OF 31588 BBLS OF SLICKWATER, 1,147,910 LBS 20/40 SAND. 54 BBLS HCL. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8430 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/2/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 24 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 24 | | CALC_MCF_GAS | 988 | | CASING_PRESS | 900 | | MCF_GAS | 988 | | TUBING_PRESS | 400 |
| | Perforation Data: | | Interval Top: | 5712 ft. | # Of Holes: | 199 | | Interval Bottom: | 8845 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 19 |
| Total Gas Produced (MCF) | 5221 |
| GOR | 274789 |
| GOR Determination | MCFE |
| Average BOE per Day | 2.510 |
| Average MCFE per Day | 14.563 |
| Federal Financial Assurance | i | |
|
|
