Wellbore #00 Wellbore Classification: GW Status: PR - 10/21/2004 Measured TD: 6765 ft. Vertical TD: 6625 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/21/2004 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20042646 | Expiration Date: | 11/21/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 235 FSL 601 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 235 FSL 601 FWL | | Proposed Depth/Form: | 6812 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-8 , Unit Acreage: 160, Drill Unit: SW/4 |
| | |

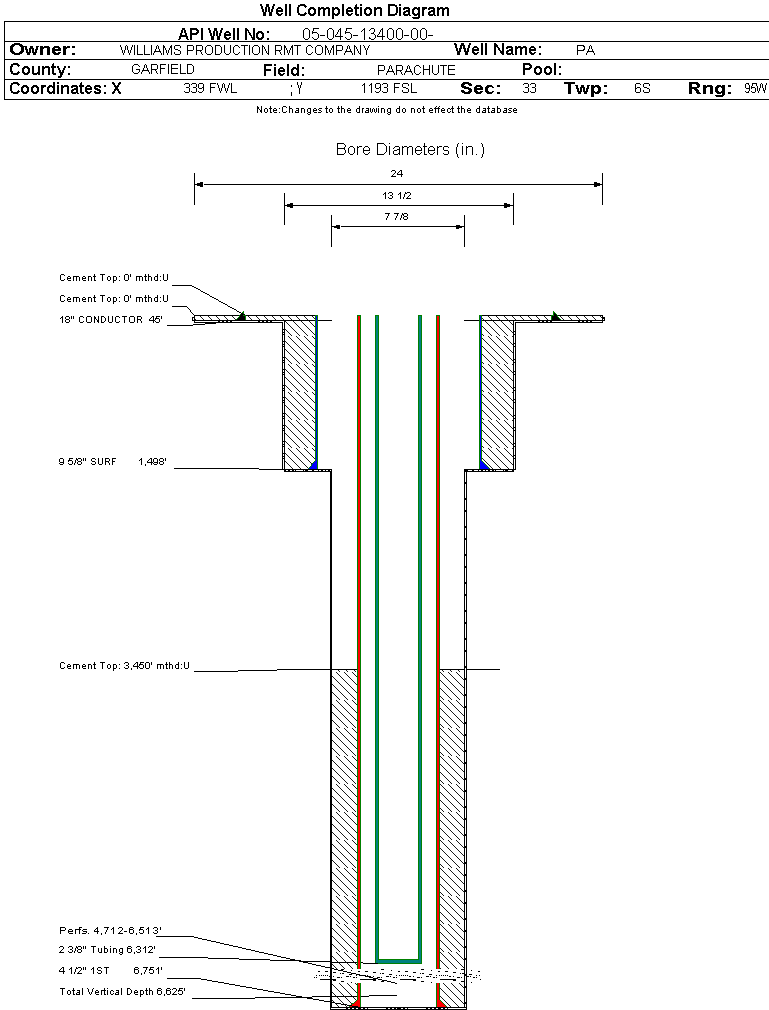

| Wellbore Completed | | Completion Date: | 6/19/2005 | | Spud Date: | 6/2/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 6765 ft. | Measured PB depth: | 6562 ft. | | True Vertical TD: | 6625 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 235 FSL 601 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 235 FSL 601 FWL | | Log Types: | CBL; HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1498 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 425, Top: 0 ft., Bottom: 1498 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6751 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 940, Top: 3450 ft., Bottom: 6751 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 1288 ft. | | N | N | | FORT UNION | 1564 ft. | | N | N | | MESAVERDE | 3408 ft. | | N | N | | CAMEO | 5914 ft. | | N | N | | ROLLINS | 6579 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 1/20/2006 Interval Top: 4712 ft. Interval Bottom: 6513 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/19/2005 | | Treatment Summary: | 7/19/05 COBRAMAX TREATMENT 90 SAND JET PERFORATIONS, 4200 GALS 7.5% HCL ACID; 775000# 20/40 SAND, 17497 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6312 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/20/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CASING_PRESS | 834 | | MCF_GAS | 833 | | TUBING_PRESS | 641 |
| | Perforation Data: | | Interval Top: | 4712 ft. | # Of Holes: | 90 | | Interval Bottom: | 6513 ft. | Hole Size: | 0.75 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 26 |
| Total Gas Produced (MCF) | 20512 |
| GOR | 788923 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.768 |
| Average MCFE per Day | 56.656 |
