COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-13370		Well Classification: GW Status: PR - 7/31/2005
Well Name/No:GMU #26-5D (J26NW)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/31/2005
FacilityID:274668LocationID:335308
County:GARFIELD #045Location:NWSE 26 6S93W 6
Field:MAMM CREEK - #52500Elevation:5751 ft.
Basin:PICEANCE BASIN
Planned Location:1848FSL  2568 FELLat/Long: 39.495180 / -107.742385Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.495490 / -107.742630Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/31/2005             Measured TD: 8264 ft.    Vertical TD: 8004 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/31/2005
Wellbore PermitDIRECTIONAL
Permit #:20042553 Expiration Date:11/14/2005
Proposed Top PZ Location:Sec: Twp: Footage: 2630 FNL  1320 FWL
Bottom Hole Location:Sec: Twp: Footage: 2630 FNL  1320 FWL
Proposed Depth/Form:8264 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:GRASS MESA FEDE Unit Number:COC 56608X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:3/10/2005
Spud Date:2/20/2005Spud Date Is:ACTUAL
Measured TD:8264 ft.Measured PB depth:8215 ft.
True Vertical TD:8004 ft.True Vertical PB depth:0 ft.
Top PZ Location:Sec:26 Twp: 6S 93WFootage: 2562 FSL  1455 FWL
Bottom Hole Location:Sec:26 Twp: 6S 93WFootage: 2562 FSL  1455 FWL
Log Types:CBL, RST / GR

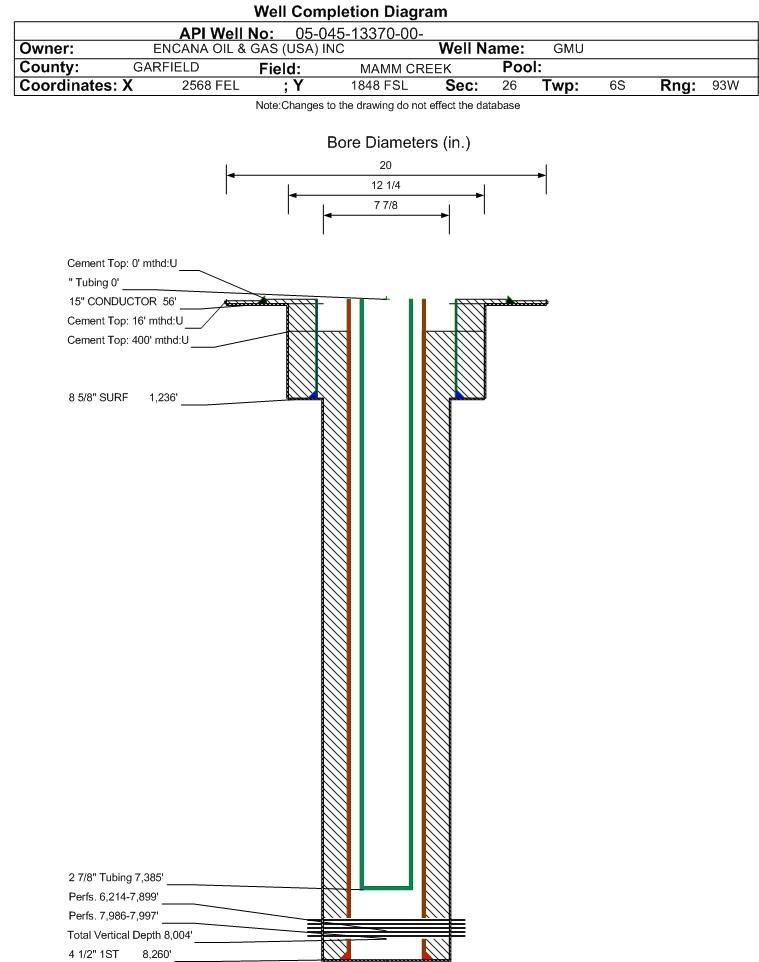

Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 15 in., Top: 0 ft., Depth: 56 ft., Weight: 0 , Citings Type: ACTUAL
Cement:Sacks: 4, Top: 16 ft., Bottom: 56 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1236 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 850, Top: 0 ft., Bottom: 1240 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8260 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1860, Top: 400 ft., Bottom: 8260 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.4793 ft.NN
WILLIAMS FORK4794 ft.7972 ft.NN
ROLLINS7973 ft.8264 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 7/31/2005                 Interval Top: 7986 ft.    Interval Bottom: 7997 ft.

 Completed Information for Formation ROLLINS
1st Production Date:7/25/2005Choke Size:
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/25/2005
Treatment Summary:SES STAGE 1 TREATMENT LISTED BELOW.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:FLOWING
Hours Tested:Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 4
MCF_GAS 255
Perforation Data:
Interval Top:7986 ft.# Of Holes:4
Interval Bottom:7997 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 7/31/2005                 Interval Top: 6214 ft.    Interval Bottom: 7899 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:7/25/2005Choke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:7/25/2005
Treatment Summary:STATE 1-6 TREATED WITH A TOTAL OF: 45,302 BBLS OF LSICKWATER, 912,244 LBS 20/40 SAND.
Tubing Size:2.875 in.Tubing Setting Depth:7385 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/31/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 15
BBLS_OIL 1
BTU_GAS 1170
CALC_BBLS_H2O 15
CALC_BBLS_OIL 1
CALC_GOR 102100
CALC_MCF_GAS 1021
CASING_PRESS 1200
MCF_GAS 1032
TUBING_PRESS 775
Perforation Data:
Interval Top:6214 ft.# Of Holes:118
Interval Bottom:7899 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)97
Total Gas Produced (MCF)15090
GOR155567
GOR DeterminationMCFE
Average BOE per Day7.398
Average MCFE per Day42.886

 Federal Financial Assurance  i Y

 Tribal Well  i No
