COGIS - WELL SCOUT CARD

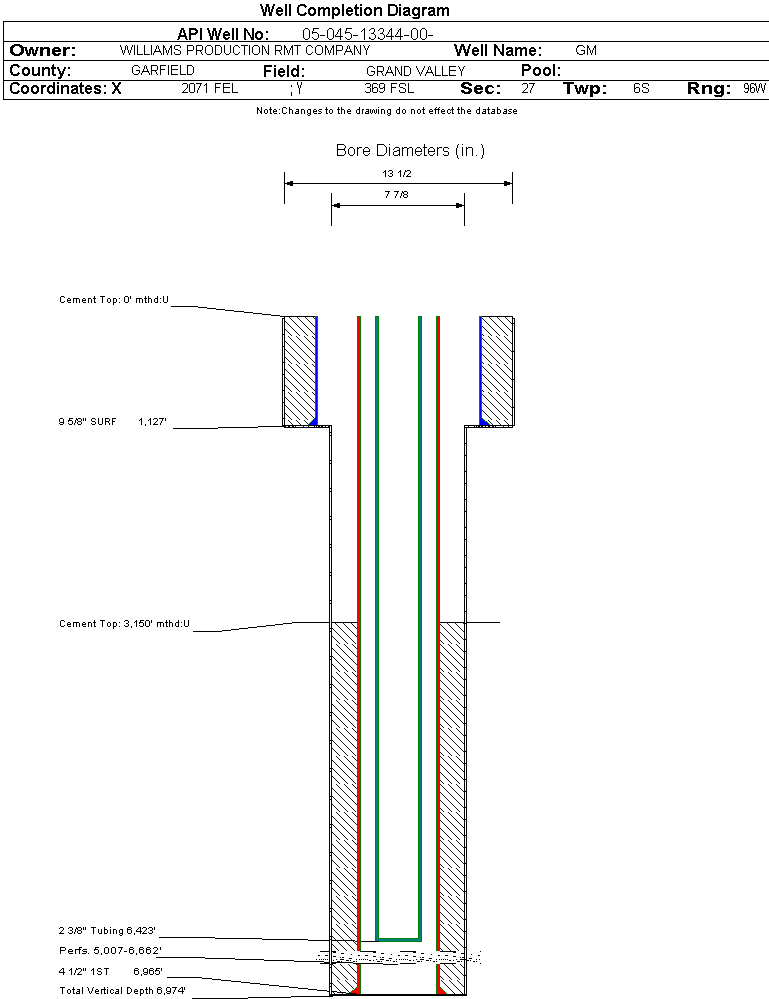

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-13344		Well Classification: GW Status: PR - 7/6/2005
Well Name/No:GM #534-27
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 49009
Facility Status:PRStatus Date7/6/2005
FacilityID:274269LocationID:335398
County:GARFIELD #045Location:SWSE 27 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5569 ft.
Basin:PICEANCE BASIN
Planned Location:369FSL  2071 FELLat/Long: 39.488768 / -108.092606Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.488963 / -108.092518Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/6/2005             Measured TD: 6990 ft.    Vertical TD: 6974 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/6/2005
Wellbore PermitDIRECTIONAL
Permit #:20042382 Expiration Date:10/20/2005
Proposed Top PZ Location:Sec: Twp: Footage: 160 FSL  1855 FEL
Bottom Hole Location:Sec: Twp: Footage: 160 FSL  1855 FEL
Proposed Depth/Form:6986 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-10 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:3/30/2005
Spud Date:2/25/2005Spud Date Is:ACTUAL
Measured TD:6990 ft.Measured PB depth:6915 ft.
True Vertical TD:6974 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 160 FSL  1855 FEL
Bottom Hole Location:Sec: Twp: Footage: 160 FSL  1855 FEL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 3 ft., Depth: 1127 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1127 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6965 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 3150 ft., Bottom: 6965 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1962 ft.NN
FORT UNION2283 ft.NN
MESAVERDE3721 ft.NN
CAMEO6348 ft.NN
ROLLINS6847 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/6/2005                  Interval Top: 5007 ft.    Interval Bottom: 6662 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/30/2005
Treatment Summary:4000 GALS 7 1/2% HCL, 587400# 30/50, 9954 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6423 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/21/2005Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1354
CASING_PRESS 1525
MCF_GAS 1354
TUBING_PRESS 1403
Perforation Data:
Interval Top:5007 ft.# Of Holes:68
Interval Bottom:6662 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)10150
GOR634375
GOR DeterminationMCFE
Average BOE per Day4.842
Average MCFE per Day28.074

 Federal Financial Assurance  i

 Tribal Well  i No
