COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-13341		Well Classification: GW Status: PR - 6/14/2005
Well Name/No:CLOUGH #RWF 612-21
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:CR160
Facility Status:PRStatus Date6/14/2005
FacilityID:274171LocationID:335221
County:GARFIELD #045Location:SWNW 21 6S94W 6
Field:RULISON - #75400Elevation:5392 ft.
Basin:PICEANCE BASIN
Planned Location:1844FNL  822 FWLLat/Long: 39.512939 / -107.899890Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.513062 / -107.899934Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/14/2005             Measured TD: 8080 ft.    Vertical TD: 8047 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/14/2005
Wellbore PermitDIRECTIONAL
Permit #:20042305 Expiration Date:10/17/2005
Proposed Top PZ Location:Sec: Twp: Footage: 1350 FNL  1084 FWL
Bottom Hole Location:Sec: Twp: Footage: 1350 FNL  1084 FWL
Proposed Depth/Form:7980 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-10 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:5/28/2005
Spud Date:1/21/2005Spud Date Is:ACTUAL
Measured TD:8080 ft.Measured PB depth:7721 ft.
True Vertical TD:8047 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1350 FNL  1084 FWL
Bottom Hole Location:Sec: Twp: Footage: 1350 FNL  1084 FWL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE

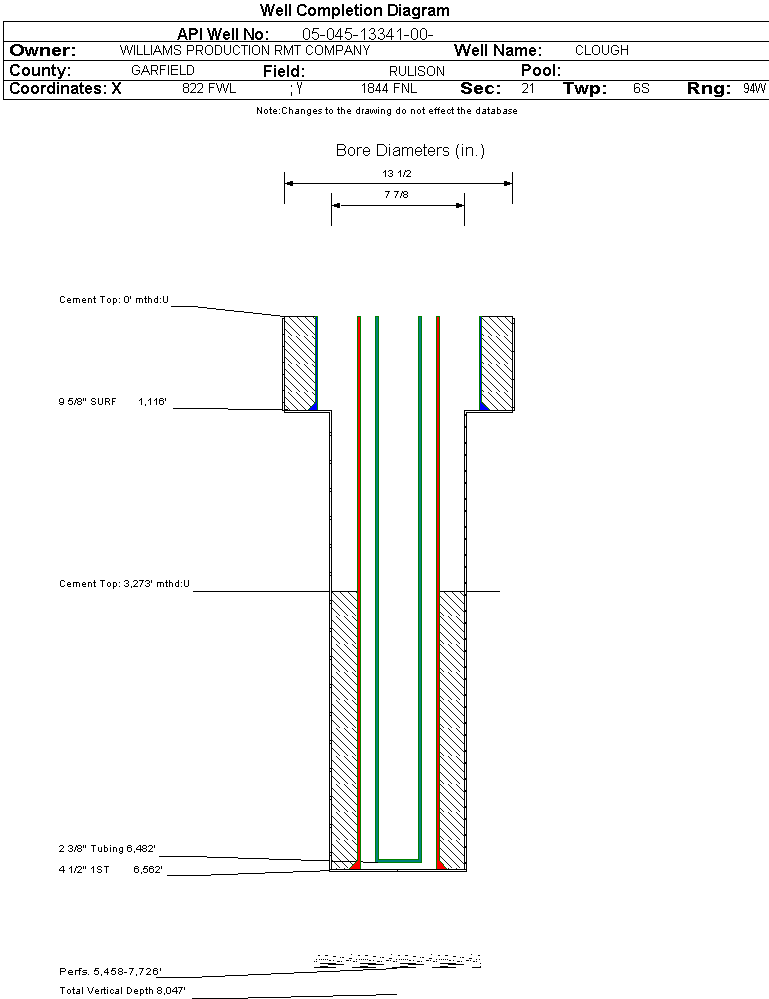

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1116 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 365, Top: 0 ft., Bottom: 1116 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6562 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 800, Top: 3273 ft., Bottom: 6562 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1719 ft.NN
MESAVERDE4194 ft.NN
CAMEO COAL6970 ft.NN
ROLLINS7901 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 6/14/2005                 Interval Top: 5458 ft.    Interval Bottom: 7726 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/28/2005
Treatment Summary:3000 GALS 7 1/2% HCL, 598600# 20/40, 14622 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6482 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/14/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1301
CASING_PRESS 1446
MCF_GAS 1301
TUBING_PRESS 1328
Perforation Data:
Interval Top:5458 ft.# Of Holes:102
Interval Bottom:7726 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)10342
GOR940181
GOR DeterminationMCFE
Average BOE per Day4.915
Average MCFE per Day28.499

 Federal Financial Assurance  i

 Tribal Well  i No
