COGIS - WELL SCOUT CARD

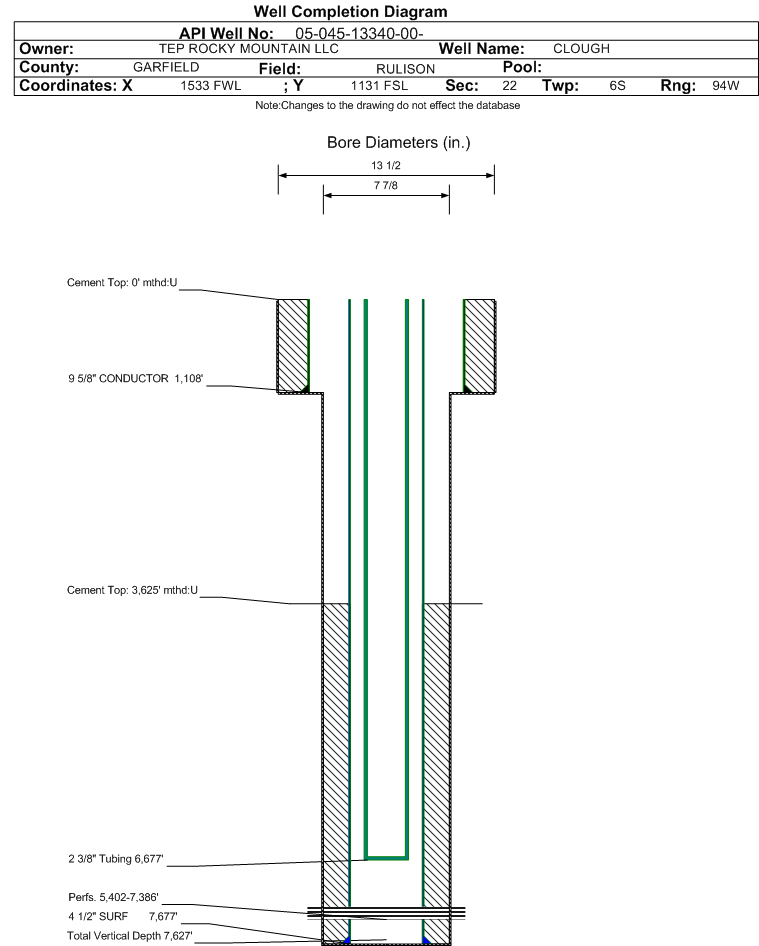

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-13340		Well Classification: GW Status: PR - 5/27/2005
Well Name/No:CLOUGH #RMV 122-22
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/27/2005
FacilityID:274122LocationID:335218
County:GARFIELD #045Location:SESW 22 6S94W 6
Field:RULISON - #75400Elevation:5226 ft.
Basin:PICEANCE BASIN
Planned Location:1131FSL  1533 FWLLat/Long: 39.506489 / -107.878410Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.506613 / -107.878518Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/27/2005             Measured TD: 7697 ft.    Vertical TD: 7627 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/27/2005
Wellbore PermitDIRECTIONAL
Permit #:20042227 Expiration Date:10/13/2005
Proposed Top PZ Location:Sec: Twp: Footage: 1811 FSL  1919 FWL
Bottom Hole Location:Sec: Twp: Footage: 1811 FSL  1919 FWL
Proposed Depth/Form:7799 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: S/2
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7799 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:4/12/2005
Spud Date:3/1/2005Spud Date Is:ACTUAL
Measured TD:7697 ft.Measured PB depth:7489 ft.
True Vertical TD:7627 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1811 FSL  1919 FWL
Bottom Hole Location:Sec: Twp: Footage: 1811 FSL  1919 FWL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL
Casing:String Type: CONDUCTOR, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1108 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1108 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7677 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1080, Top: 3625 ft., Bottom: 7677 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1449 ft.NN
MESAVERDE3955 ft.NN
CAMEO6742 ft.NN
ROLLINS7710 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/27/2005                 Interval Top: 5402 ft.    Interval Bottom: 7386 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/12/2005
Treatment Summary:4750 GALS 7 1/2% HCL. 629500# 20/40,14840 BBLS SLICKWATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6677 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/16/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1358
CASING_PRESS 1510
MCF_GAS 1358
TUBING_PRESS 1372
Perforation Data:
Interval Top:5402 ft.# Of Holes:97
Interval Bottom:7386 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)34
Total Gas Produced (MCF)14146
GOR416058
GOR DeterminationMCFE
Average BOE per Day6.771
Average MCFE per Day39.304

 Federal Financial Assurance  i

 Tribal Well  i No
