COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-13338		Well Classification: OW Status: PR - 3/27/2005
Well Name/No:WILLIAMS #GM 544-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/27/2005
FacilityID:274126LocationID:334948
County:GARFIELD #045Location:SESE 1 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5418 ft.
Basin:PICEANCE BASIN
Planned Location:937FSL  1271 FELLat/Long: 39.462229 / -108.053475Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.462302 / -108.053761Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 3/27/2005             Measured TD: 6707 ft.    Vertical TD: 6657 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 3/27/2005
Wellbore PermitDIRECTIONAL
Permit #:20042230 Expiration Date:10/13/2005
Proposed Top PZ Location:Sec: Twp: Footage: 614 FSL  794 FEL
Bottom Hole Location:Sec: Twp: Footage: 614 FSL  794 FEL
Proposed Depth/Form:6735 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:3/27/2005
Spud Date:1/10/2005Spud Date Is:ACTUAL
Measured TD:6707 ft.Measured PB depth:6630 ft.
True Vertical TD:6657 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 614 FSL  794 FEL
Bottom Hole Location:Sec: Twp: Footage: 614 FSL  794 FEL
Log Types:RESERVOIR MONITOR TOOL ELITE, C B L

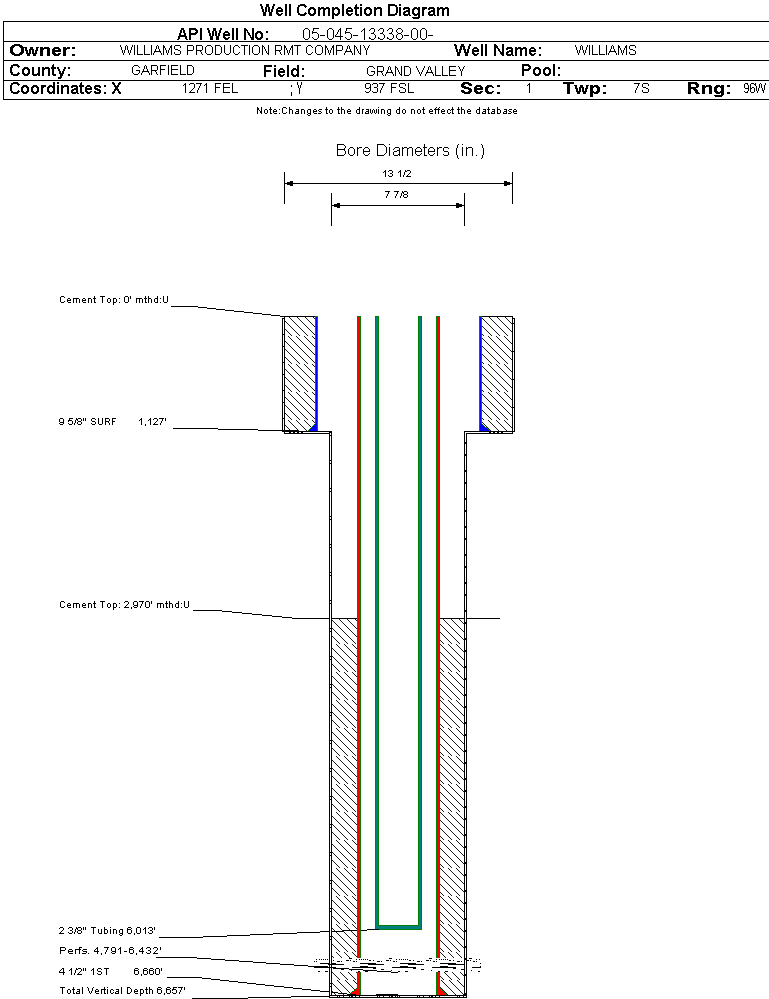

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1127 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1126 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6660 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 790, Top: 2970 ft., Bottom: 6660 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1764 ft.NN
FORT UNION2002 ft.NN
MESAVERDE3585 ft.NN
CAMEO6099 ft.NN
ROLLINS6613 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 4/1/2013                  Interval Top: 4791 ft.    Interval Bottom: 6432 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/27/2005
Treatment Summary:4000 GALS 7 1/2% HCL, 844000# 30/50, 14207 BBLS SLICKWATER, 6002-6432' 1000 GALS 7 1/2% HCL,116300 # 30/50,2328 BBLS SLICKWATER,5750-5904' 750 GALS 7 1/2% HCL,153000# 30/50, 2968 BBLS SLICKWATER,5419-5675' 750 GALS 7 1/2% HCL,20330# 30/50,3193 BBLS SLICKW
Tubing Size:2.375 in.Tubing Setting Depth:6013 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/9/2005Test Method:
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_MCF_GAS 1495
CASING_PRESS 1599
TUBING_PRESS 1495
Perforation Data:
Interval Top:4791 ft.# Of Holes:94
Interval Bottom:6432 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)17
Total Gas Produced (MCF)13563
GOR797823
GOR DeterminationMCFE
Average BOE per Day6.458
Average MCFE per Day37.438

 Federal Financial Assurance  i

 Tribal Well  i No
