Wellbore #00 Wellbore Classification: GW Status: PR - 4/3/2005 Measured TD: 7310 ft. Vertical TD: 7235 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/3/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20042244 | Expiration Date: | 10/13/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 660 FNL 660 FWL | | Bottom Hole Location: | Sec:29 Twp: | Footage: 660 FNL 660 FWL | | Proposed Depth/Form: | 7500 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

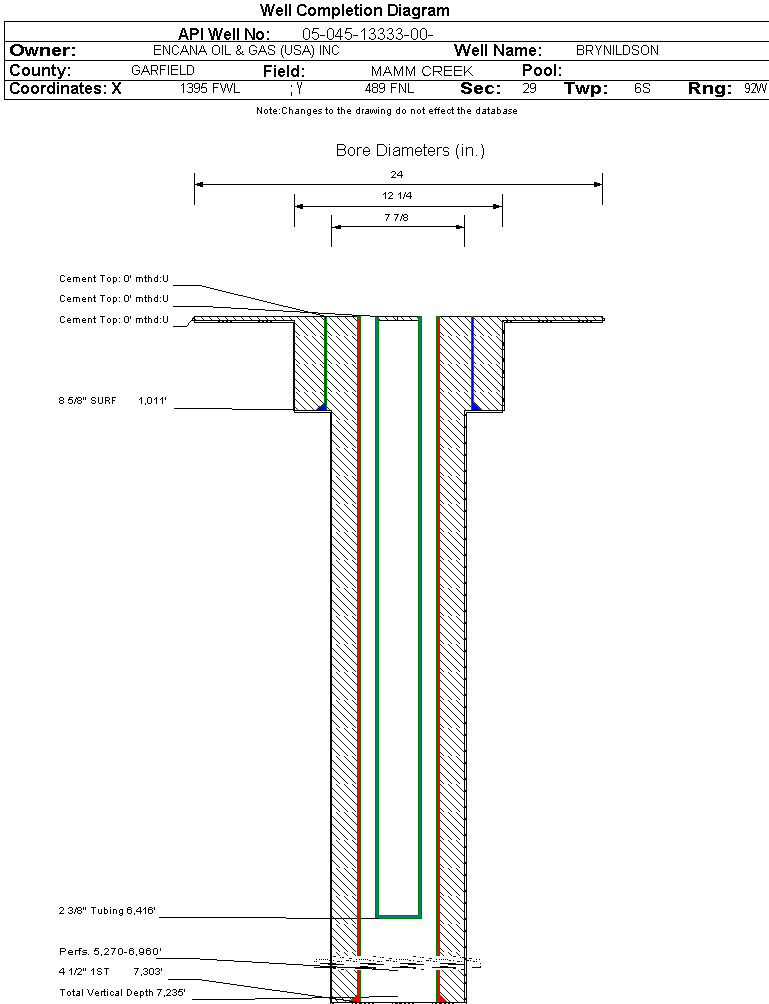

| Wellbore Completed | | Completion Date: | 4/2/2005 | | Spud Date: | 1/15/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7310 ft. | Measured PB depth: | 7166 ft. | | True Vertical TD: | 7235 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 660 FNL 660 FWL | | Bottom Hole Location: | Sec:29 Twp: | Footage: 660 FNL 660 FWL | | Log Types: | DIL/SFL,CNL/FDC | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 3, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1011 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 705, Top: 0 ft., Bottom: 1011 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7303 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 2130, Top: 0 ft., Bottom: 7310 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 4109 ft. | N | N | | WILLIAMS FORK | 4110 ft. | 7173 ft. | N | N | | ROLLINS | 7174 ft. | 7310 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 4/3/2005 Interval Top: 5270 ft. Interval Bottom: 6960 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/2/2005 | | Treatment Summary: | STAGES 1 THROUGH 5 WERE TREATED WITH A TOTAL OF 17,855 BBLS SLICKWATER AND 631,437# OF 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6416 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/3/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 256 | | BBLS_OIL | 16 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 256 | | CALC_BBLS_OIL | 16 | | CALC_GOR | 96 | | CALC_MCF_GAS | 153 | | CASING_PRESS | 2297 | | MCF_GAS | 1533 | | TUBING_PRESS | 1797 |
| | Perforation Data: | | Interval Top: | 5270 ft. | # Of Holes: | 102 | | Interval Bottom: | 6960 ft. | Hole Size: | 0.41 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 104 |
| Total Gas Produced (MCF) | 26866 |
| GOR | 258326 |
| GOR Determination | MCFE |
| Average BOE per Day | 12.969 |
| Average MCFE per Day | 75.225 |
| Federal Financial Assurance | i | |
|
|
