Wellbore #00 Wellbore Classification: GW Status: PA - 11/3/2021 Measured TD: 5833 ft. Vertical TD: 5570 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 11/3/2021 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20042228 | Expiration Date: | 10/7/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1310 FNL 670 FEL | | Bottom Hole Location: | Sec:9 Twp: | Footage: 1310 FNL 670 FEL | | Proposed Depth/Form: | 6541 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55972X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

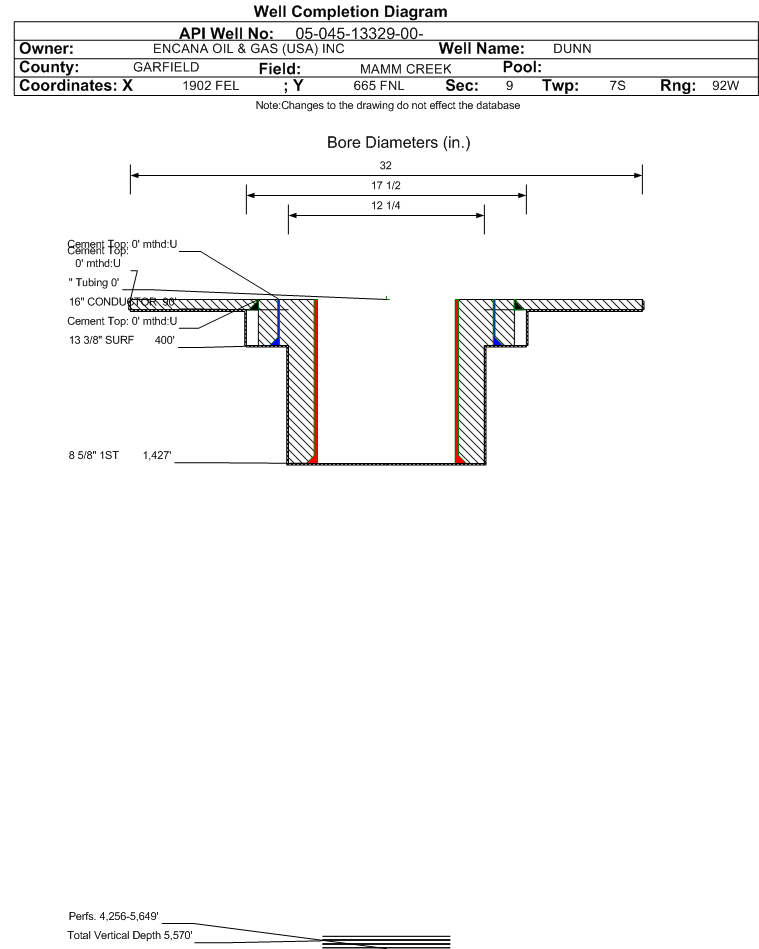

| Wellbore Completed | | Completion Date: | 2/26/2005 | | Spud Date: | 11/17/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 5833 ft. | Measured PB depth: | 5762 ft. | | True Vertical TD: | 5570 ft. | True Vertical PB depth: | 5499 ft. | | Top PZ Location: | Sec: Twp: | Footage: 1310 FNL 670 FEL | | Bottom Hole Location: | Sec:9 Twp: | Footage: 1310 FNL 670 FEL | | Log Types: | RST, CBL / GR / TEMP, GR-PEX | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 90 ft., Weight: 52.7# , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 90 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 400 ft., Weight: 48# , Citings Type: ACTUAL | | Cement: | Sacks: 500, Top: 0 ft., Bottom: 400 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1526 ft., Weight: 24# , Citings Type: ACTUAL | | Cement: | Sacks: 950, Top: 0 ft., Bottom: 1526 ft., Determination Method: CALC | | Casing: | String Type: 2ND, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5829 ft., Weight: 11.6# , Citings Type: ACTUAL | | Cement: | Sacks: 1550, Top: 2610 ft., Bottom: 5829 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 2559 ft. | N | N | | WILLIAMS FORK | 3208 ft. | 5833 ft. | N | N |
Formation WMFK Formation Classification: GW Status: AB - 8/3/2022 Interval Top: 4256 ft. Interval Bottom: 5260 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/26/2005 | | Treatment Summary: | STAGES 1-5 TREATED WITH A TOTAL OF: 20,638 BBLS OF SLICKWATER, 832,840 LBS 20/40 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 580 | | BBLS_OIL | 6 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 580 | | CALC_BBLS_OIL | 6 | | CALC_GOR | 26333 | | CALC_MCF_GAS | 158 | | CASING_PRESS | 1635 | | MCF_GAS | 158 | | TUBING_PRESS | 645 |
| | Perforation Data: | | Interval Top: | 4256 ft. | # Of Holes: | 72 | | Interval Bottom: | 5260 ft. | Hole Size: | 0.41 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 08/03/2022 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
