COGIS - WELL SCOUT CARD

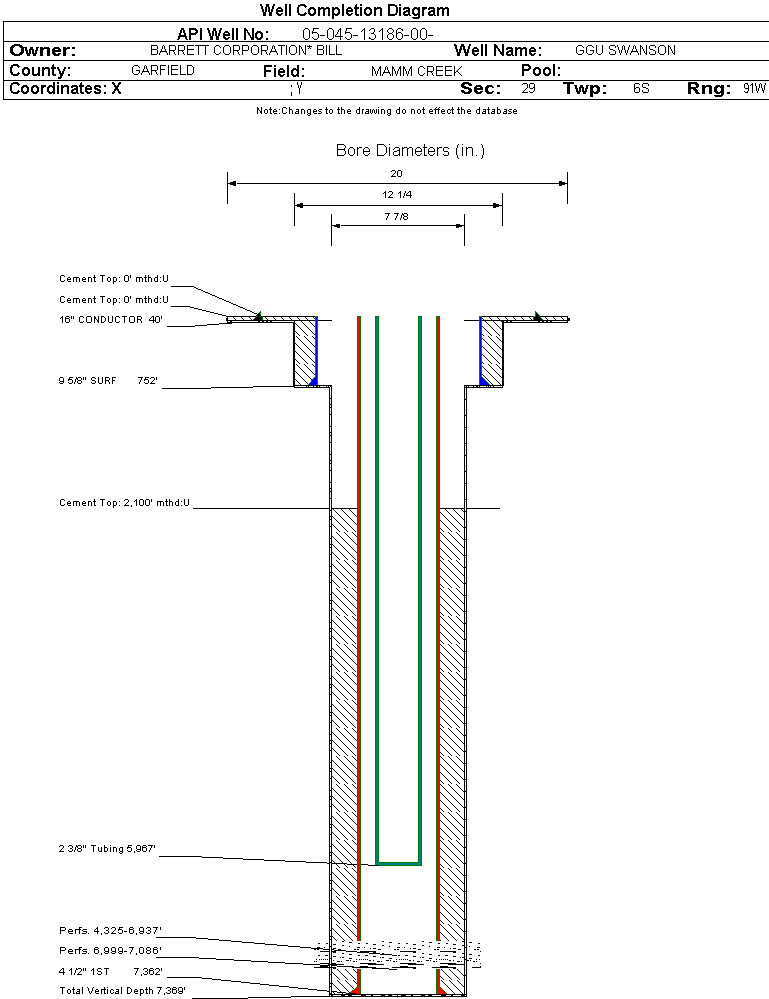

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-13186		Well Classification: GW Status: PR - 7/9/2007
Well Name/No:GGU SWANSON #23C-29-691
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/9/2007
FacilityID:288310LocationID:335224
County:GARFIELD #045Location:NESW 29 6S91W 6
Field:MAMM CREEK - #52500Elevation:6013 ft.
Basin:PICEANCE BASIN
Planned Location:1434FSL  1781 FWLLat/Long: 39.495300 / -107.581003Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.496276 / -107.580975Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/9/2007             Measured TD: 7400 ft.    Vertical TD: 7369 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/9/2007
Wellbore PermitDIRECTIONAL
Permit #:20075971 Expiration Date:12/18/2008
Proposed Top PZ Location:Sec:29 Twp: 6S 91W Footage: 2162 FSL  1992 FWL
Bottom Hole Location:Sec:29 Twp: 6S 91W Footage: 2162 FSL  1992 FWL
Proposed Depth/Form:7332 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH UN Unit Number:COC 052447X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-9 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:4/29/2007
Spud Date:4/14/2007Spud Date Is:ACTUAL
Measured TD:7400 ft.Measured PB depth:7319 ft.
True Vertical TD:7369 ft.True Vertical PB depth:7288 ft.
Top PZ Location:Sec:29 Twp: 6S 91WFootage: 2162 FSL  1992 FWL
Bottom Hole Location:Sec:29 Twp: 6S 91WFootage: 2162 FSL  1992 FWL
Log Types:HALLIBURTON HRI/SD/DSN; SHLUMBERGER CBL/GR/CCL; WEATHERFORD TEMP. LOG
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 752 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 0 ft., Bottom: 752 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7362 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1160, Top: 2100 ft., Bottom: 7362 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3413 ft.NN
ROLLINS6997 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 7/9/2007                  Interval Top: 6999 ft.    Interval Bottom: 7086 ft.

 Completed Information for Formation ROLLINS
1st Production Date:7/2/2007Choke Size:
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/14/2007
Treatment Summary:4,837 BBLS OF SLICKWATER, 81,000 LBS OF 20-40 SAND, AND 25,474 LBS OF 20-40 SB
Tubing Size:2.375 in.Tubing Setting Depth:5967 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/9/2007Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1
CALC_MCF_GAS 95
MCF_GAS 95
Perforation Data:
Interval Top:6999 ft.# Of Holes:24
Interval Bottom:7086 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 7/9/2007                  Interval Top: 4325 ft.    Interval Bottom: 6937 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:7/2/2007Choke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/14/2007
Treatment Summary:72,938 BBLS OF SLICKWATER, 1,624,113 LBS OF 20-40 SAND, 54,770 LBS 30/50 SAND
Tubing Size:2.375 in.Tubing Setting Depth:5967 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/9/2007Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1
CALC_MCF_GAS 1808
MCF_GAS 1808
Perforation Data:
Interval Top:4325 ft.# Of Holes:204
Interval Bottom:6937 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)59
Total Gas Produced (MCF)9852
GOR166983
GOR DeterminationMCFE
Average BOE per Day4.817
Average MCFE per Day27.933

 Federal Financial Assurance  i

 Tribal Well  i No
