Wellbore #00 Wellbore Classification: GW Status: PR - 6/22/2007 Measured TD: 7211 ft. Vertical TD: 6961 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/22/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20066036 | Expiration Date: | 12/10/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1583 FNL 848 FWL | | Bottom Hole Location: | Sec:29 Twp: 6S 91W | Footage: 1583 FNL 848 FWL | | Proposed Depth/Form: | 7429 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GIBSON GULCH UN | Unit Number: | COC 052447 | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-9 , Unit Acreage: , Drill Unit: |
| | |

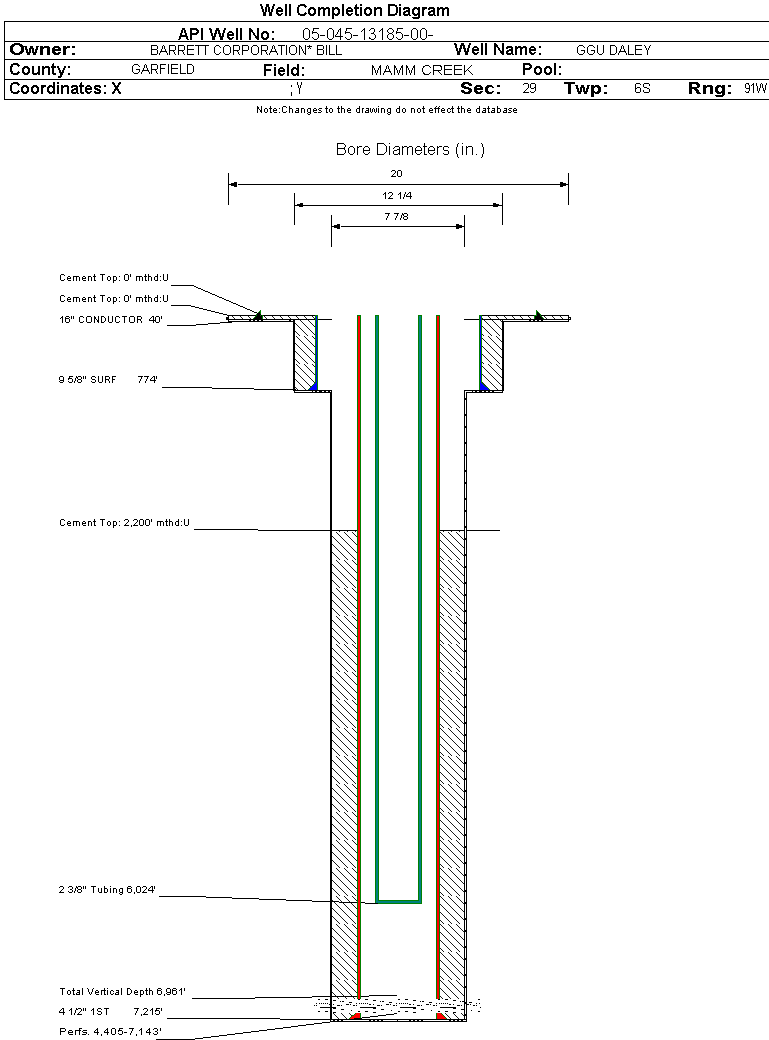

| Wellbore Completed | | Completion Date: | 4/15/2007 | | Spud Date: | 3/30/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7211 ft. | Measured PB depth: | 7172 ft. | | True Vertical TD: | 6961 ft. | True Vertical PB depth: | 6922 ft. | | Top PZ Location: | Sec:29 Twp: 6S 91W | Footage: 1591 FNL 671 FWL | | Bottom Hole Location: | Sec:29 Twp: 6S 91W | Footage: 1591 FNL 671 FWL | | Log Types: | HALLIBURTON HRI/SD/DSN; SCHLUMBERGER CBL/GR/CCL; WEATHERFORD TEMP. LOG | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 774 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 230, Top: 0 ft., Bottom: 777 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7215 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1086, Top: 2200 ft., Bottom: 7211 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3614 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 6/22/2007 Interval Top: 4405 ft. Interval Bottom: 7143 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 6/10/2007 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/25/2007 | | Treatment Summary: | 73,687 BBLS OF CWS-600, 1,553,424 LBS OF 20-40 SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6024 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/22/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CALC_MCF_GAS | 1913 | | MCF_GAS | 1913 |
| | Perforation Data: | | Interval Top: | 4405 ft. | # Of Holes: | 212 | | Interval Bottom: | 7143 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 40 |
| Total Gas Produced (MCF) | 10843 |
| GOR | 271075 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.230 |
| Average MCFE per Day | 30.340 |
| Federal Financial Assurance | i | |
|
|
