Wellbore #00 Wellbore Classification: GW Status: PR - 10/12/2006 Measured TD: 7770 ft. Vertical TD: 7671 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/12/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20065327 | Expiration Date: | 12/7/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2475 FNL 577 FWL | | Bottom Hole Location: | Sec:29 Twp: 6S 94W | Footage: 2475 FNL 577 FWL | | Proposed Depth/Form: | 7762 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 320, Drill Unit: N2 |
| | |

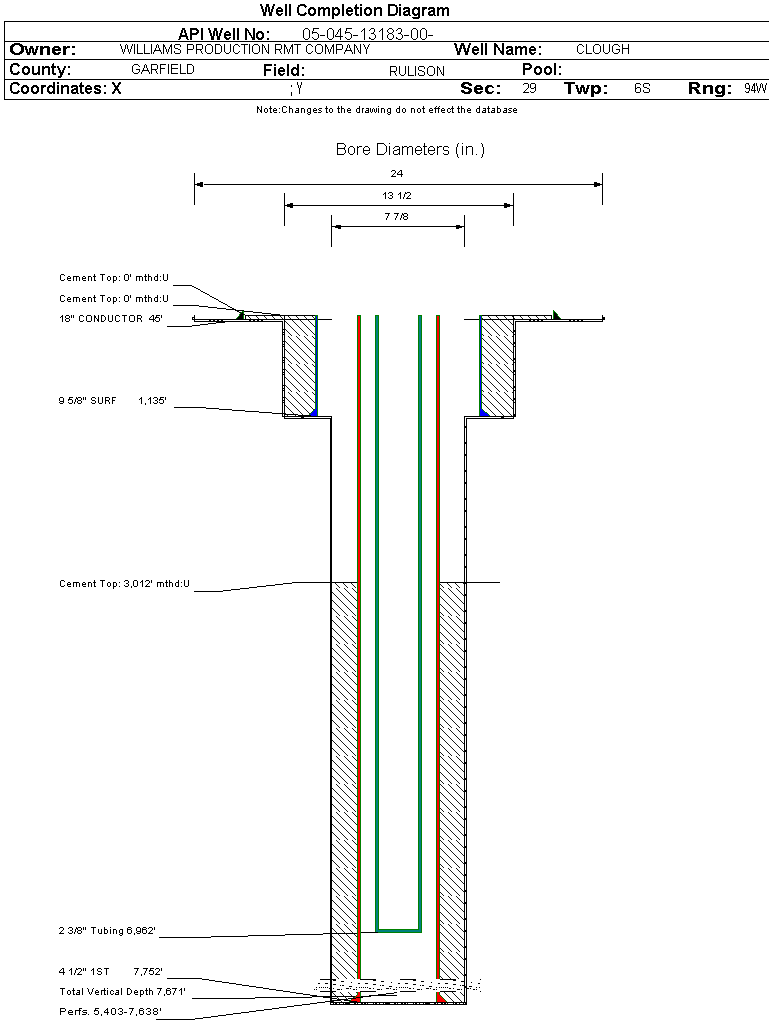

| Wellbore Completed | | Completion Date: | 4/27/2007 | | Spud Date: | 4/13/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7770 ft. | Measured PB depth: | 7724 ft. | | True Vertical TD: | 7671 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:29 Twp: 6S 94W | Footage: 2469 FNL 579 FWL | | Bottom Hole Location: | Sec:29 Twp: 6S 94W | Footage: 2469 FNL 579 FWL | | Log Types: | CBL;HIGH RESOLUTION IN,SPECTRAL DEN,DUAL SPACED NEU; MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 48 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1135 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1135 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7752 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1054, Top: 3012 ft., Bottom: 7752 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1761 ft. | | N | N | | MESAVERDE | 4147 ft. | | N | N | | CAMEO | 6735 ft. | | N | N | | ROLLINS | 7691 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 8/13/2007 Interval Top: 5403 ft. Interval Bottom: 7638 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 6/30/2007 | Choke Size: | 0.172 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/27/2007 | | Treatment Summary: | 4,250 GALS 7 1/2% HCL; 722,400# 20/40 SAND; 22,028 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6962 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/13/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CASING_PRESS | 2480 | | MCF_GAS | 1658 | | TUBING_PRESS | 2368 |
| | Perforation Data: | | Interval Top: | 5403 ft. | # Of Holes: | 160 | | Interval Bottom: | 7638 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 29 |
| Total Gas Produced (MCF) | 24604 |
| GOR | 848413 |
| GOR Determination | MCFE |
| Average BOE per Day | 11.696 |
| Average MCFE per Day | 67.871 |
| Federal Financial Assurance | i | Y |
|
|
