Wellbore #00 Wellbore Classification: GW Status: PR - 7/25/2007 Measured TD: 6730 ft. Vertical TD: 6565 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/25/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20074336 | Expiration Date: | 9/19/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1042 FSL 2180 FEL | | Bottom Hole Location: | Sec:29 Twp: 6S 96W | Footage: 1048 FNL 1983 FEL | | Proposed Depth/Form: | 6810 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-20 , Unit Acreage: 160, Drill Unit: SE/4 |
| | |

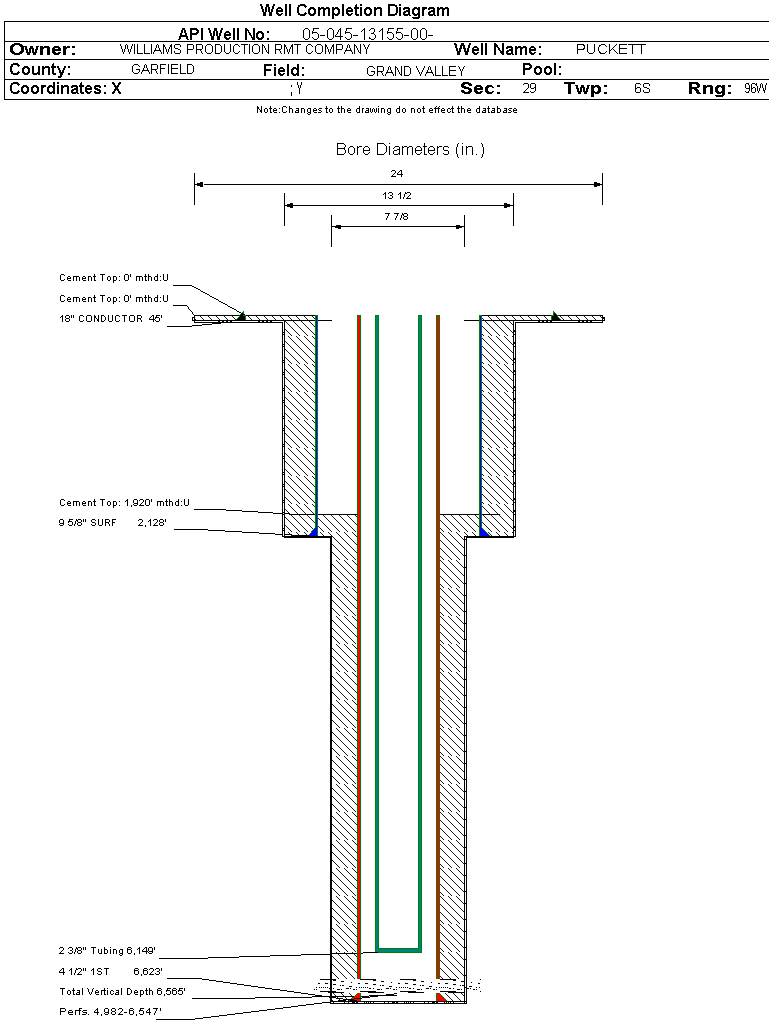

| Wellbore Completed | | Completion Date: | 2/17/2008 | | Spud Date: | 2/10/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 6730 ft. | Measured PB depth: | 6590 ft. | | True Vertical TD: | 6565 ft. | True Vertical PB depth: | 6425 ft. | | Top PZ Location: | Sec:29 Twp: 6S 96W | Footage: 1035 FSL 1971 FEL | | Bottom Hole Location: | Sec:29 Twp: 6S 96W | Footage: 1035 FSL 1971 FEL | | Log Types: | CBL, HRI/SD/DSN, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2128 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 474, Top: 0 ft., Bottom: 2128 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6623 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 849, Top: 1920 ft., Bottom: 6623 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1918 ft. | | N | N | | MESAVERDE | 3639 ft. | | N | N | | CAMEO | 6165 ft. | | N | N | | ROLLINS | 6604 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 4/30/2008 Interval Top: 4982 ft. Interval Bottom: 6547 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 3/17/2008 | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/15/2008 | | Treatment Summary: | 2979 GALS 7.5% HCL; 924,600# 30/50 SAND; 26791 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6149 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/30/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1093 | | CASING_PRESS | 1374 | | MCF_GAS | 1427 | | TUBING_PRESS | 1200 |
| | Perforation Data: | | Interval Top: | 4982 ft. | # Of Holes: | 108 | | Interval Bottom: | 6547 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 13 |
| Total Gas Produced (MCF) | 10460 |
| GOR | 804615 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.976 |
| Average MCFE per Day | 28.857 |
| Federal Financial Assurance | i | Y |
|
|
