Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-13151		Well Classification: GW	Status: PR - 7/25/2007
Well Name/No:	PUCKETT #GM 443-29 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	COC23794
Facility Status:	PR	Status Date	7/25/2007
FacilityID:	288043	LocationID:	335184
County:	GARFIELD #045	Location:	NESE 29 6S96W 6
Field:	GRAND VALLEY - #31290	Elevation:	5468 ft.
Basin:	PICEANCE BASIN
Planned Location:	1878FSL 1140 FEL	Lat/Long: 39.492925 / -108.127072	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.492927 / -108.127069	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 7/25/2007 Measured TD: 6690 ft. Vertical TD: 6642 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 7/25/2007
Wellbore Permit			DIRECTIONAL
Permit #:	2007433	Expiration Date:	9/19/2008
Proposed Top PZ Location:	Sec: Twp:	Footage: 2185 FSL 590 FEL
Bottom Hole Location:	Sec:29 Twp: 6S 96W	Footage: 2185 FSL 590 FEL
Proposed Depth/Form:	6721 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 510-20 , Unit Acreage: 160, Drill Unit: SE/4

Wellbore Completed
Completion Date:	12/17/2007
Spud Date:	12/9/2007	Spud Date Is:	ACTUAL
Measured TD:	6690 ft.	Measured PB depth:	6573 ft.
True Vertical TD:	6642 ft.	True Vertical PB depth:	6525 ft.
Top PZ Location:	Sec:29 Twp: 6S 96W	Footage: 2195 FSL 580 FEL
Bottom Hole Location:	Sec:29 Twp: 6S 96W	Footage: 2195 FSL 580 FEL
Log Types:	CBL;HIGH RES INDUC, SPECTRAL DENSITY,DUAL SPACED NEUTRON; MUD

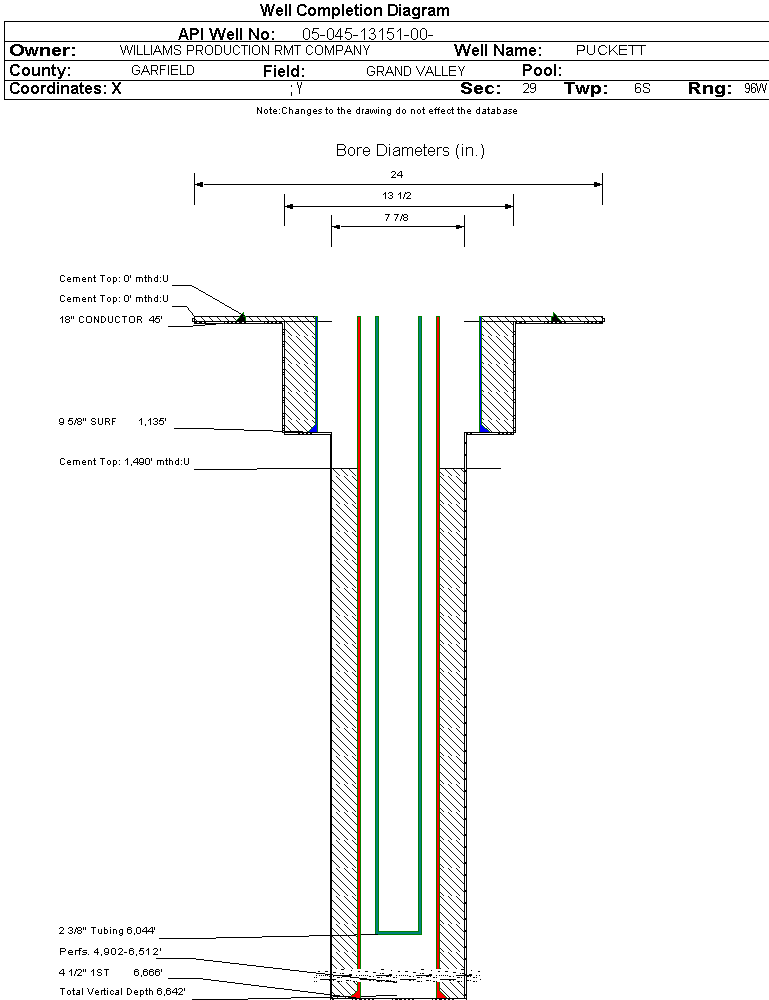

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method:
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1135 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 404, Top: 0 ft., Bottom: 1135 ft., Determination Method:
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6666 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 767, Top: 1490 ft., Bottom: 6666 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	1852 ft.		N	N
MESAVERDE	3512 ft.		N	N
CAMEO	6163 ft.		N	N
ROLLINS	6582 ft.		N	N

Formation WFCM Formation Classification: GW Status: PR - 4/30/2008 Interval Top: 4902 ft. Interval Bottom: 6512 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	3/13/2008	Choke Size:	0.250 in.
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	3/11/2008
Treatment Summary:	2409 GALS 7.5% HCL; 886,600# 30/50 SAND; 31,396 BBLS SLICKWATER

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	6044 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	4/30/2008	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1066
CASING_PRESS	1224
MCF_GAS	1237
TUBING_PRESS	1001

Perforation Data:
Interval Top:	4902 ft.	# Of Holes:	141
Interval Bottom:	6512 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	12
Total Gas Produced (MCF)	10279
GOR	856583
GOR Determination	MCFE
Average BOE per Day	4.891
Average MCFE per Day	28.361

Federal Financial Assurance

Tribal Well
