Wellbore #00 Wellbore Classification: GW Status: PR - 10/2/2006 Measured TD: 7630 ft. Vertical TD: 7233 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/2/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20065188 | Expiration Date: | 11/21/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1800 FNL 842 FWL | | Bottom Hole Location: | Sec:26 Twp: 6S 96W | Footage: 1800 FNL 842 FWL | | Proposed Depth/Form: | 7612 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-12 , Unit Acreage: 320, Drill Unit: W2 |
| | |

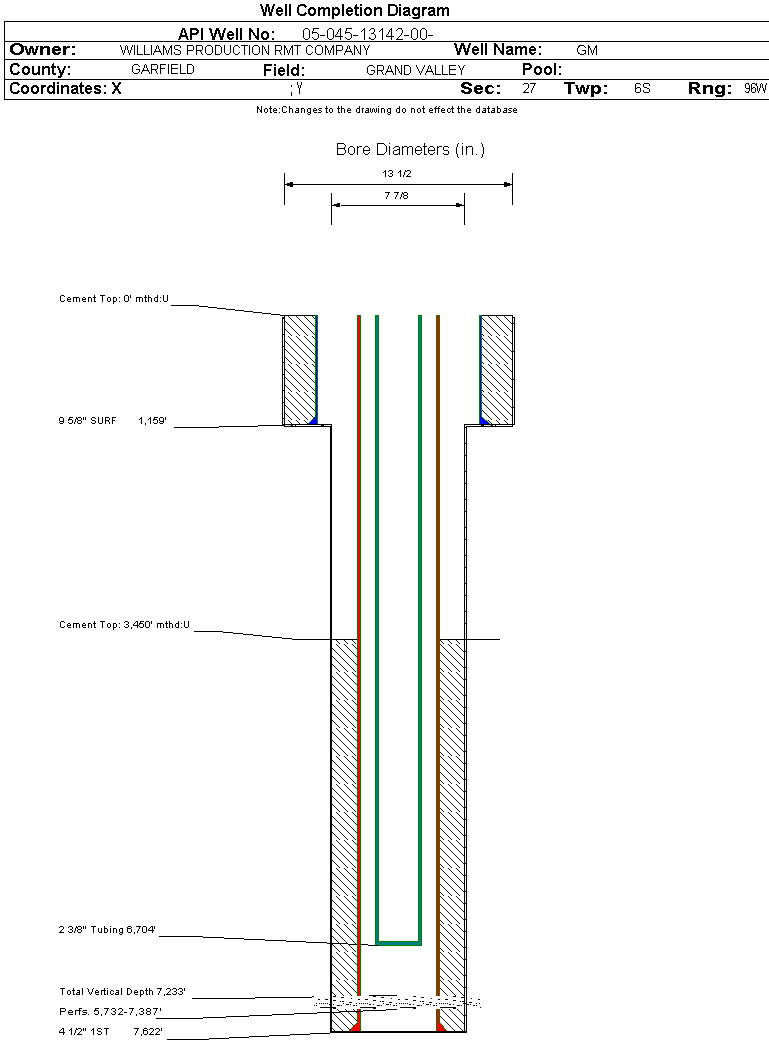

| Wellbore Completed | | Completion Date: | 2/28/2007 | | Spud Date: | 2/17/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7630 ft. | Measured PB depth: | 7598 ft. | | True Vertical TD: | 7233 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:26 Twp: 6S 96W | Footage: 1797 FNL 846 FWL | | Bottom Hole Location: | Sec:26 Twp: 6S 96W | Footage: 1797 FNL 846 FWL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE; MUDLOG | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1159 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1159 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7622 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 840, Top: 3450 ft., Bottom: 7622 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2297 ft. | | N | N | | MESAVERDE | 4293 ft. | | N | N | | CAMEO | 6999 ft. | | N | N | | ROLLINS | 7442 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 6/28/2007 Interval Top: 5732 ft. Interval Bottom: 7387 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/28/2007 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/26/2007 | | Treatment Summary: | 3216 GALS 7 1/2% HCL, 861100# 30/50 SAND, 23231 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6704 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/28/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CASING_PRESS | 1502 | | MCF_GAS | 1224 | | TUBING_PRESS | 1373 |
| | Perforation Data: | | Interval Top: | 5732 ft. | # Of Holes: | 106 | | Interval Bottom: | 7387 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 41 |
| Total Gas Produced (MCF) | 16200 |
| GOR | 395121 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.773 |
| Average MCFE per Day | 45.073 |
| Federal Financial Assurance | i | Y |
|
|
