COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-13140		Well Classification: GW Status: PR - 11/1/2019
Well Name/No:GM #512-26
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC27743
Facility Status:PRStatus Date11/1/2019
FacilityID:288054LocationID:335430
County:GARFIELD #045Location:SENE 27 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5680 ft.
Basin:PICEANCE BASIN
Planned Location:2241FNL  1081 FELLat/Long: 39.496306 / -108.089034Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.496308 / -108.089033Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/1/2019             Measured TD: 7505 ft.    Vertical TD: 7167 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/1/2019
Wellbore PermitDIRECTIONAL
Permit #:20065190 Expiration Date:11/21/2007
Proposed Top PZ Location:Sec: Twp: Footage: 2500 FNL  521 FWL
Bottom Hole Location:Sec:26 Twp: 6S 96W Footage: 2500 FNL  521 FWL
Proposed Depth/Form:7527 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-12 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:3/23/2007
Spud Date:3/12/2007Spud Date Is:ACTUAL
Measured TD:7505 ft.Measured PB depth:7473 ft.
True Vertical TD:7167 ft.True Vertical PB depth:
Top PZ Location:Sec:26 Twp: 6S 96WFootage: 2484 FNL  531 FWL
Bottom Hole Location:Sec:26 Twp: 6S 96WFootage: 2484 FNL  531 FWL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE

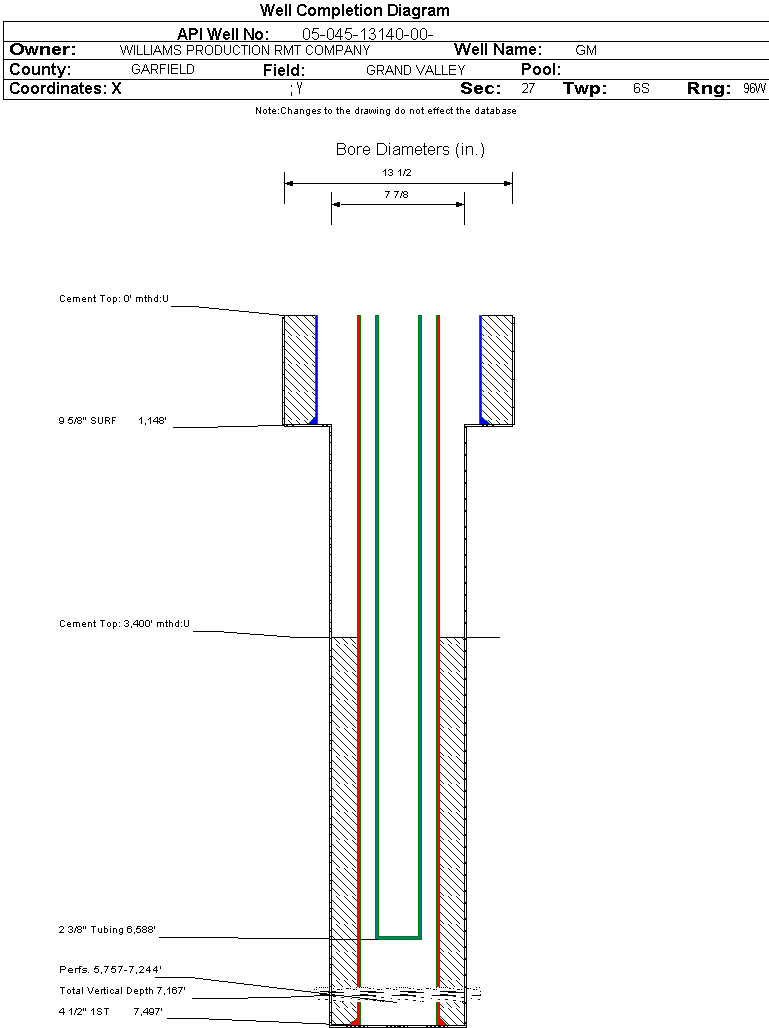

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1148 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 375, Top: , Bottom: 1148 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7497 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 532, Top: 3400 ft., Bottom: 7497 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2544 ft.NN
MESAVERDE4206 ft.NN
CAMEO6899 ft.NN
ROLLINS7346 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/1/2019                 Interval Top: 5757 ft.    Interval Bottom: 7244 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:5/8/2007Choke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/30/2007
Treatment Summary:2738 GALS 7 1/2% HCL; 811600 # 30/50 SAND; 22112 BBLS SLICKWATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6588 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/24/2007Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CASING_PRESS 1240
MCF_GAS 1276
TUBING_PRESS 1126
Perforation Data:
Interval Top:5757 ft.# Of Holes:97
Interval Bottom:7244 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)27
Total Gas Produced (MCF)10640
GOR394074
GOR DeterminationMCFE
Average BOE per Day5.088
Average MCFE per Day29.519

 Federal Financial Assurance  i Y

 Tribal Well  i No
