Wellbore #00 Wellbore Classification: GW Status: PR - 10/4/2006 Measured TD: 7054 ft. Vertical TD: 6984 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/4/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20065166 | Expiration Date: | 11/16/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 785 FSL 817 FWL | | Bottom Hole Location: | Sec:20 Twp: 6S 96W | Footage: 785 FSL 817 FWL | | Proposed Depth/Form: | 7022 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 160, Drill Unit: SW4 |
| | |

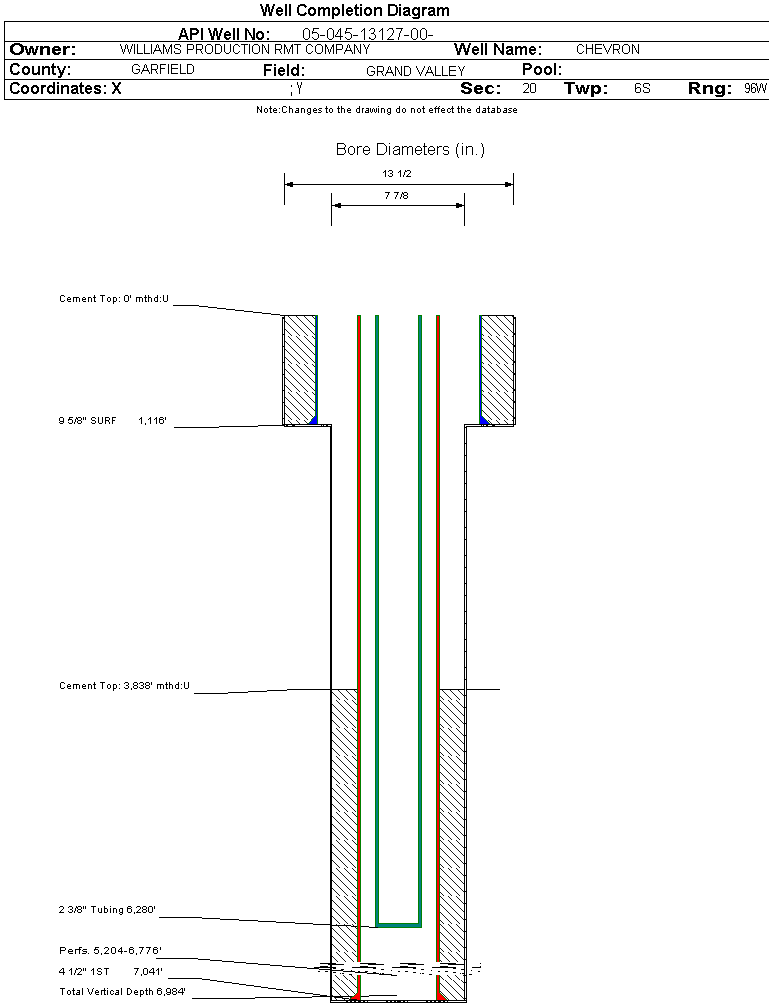

| Wellbore Completed | | Completion Date: | 4/28/2007 | | Spud Date: | 4/17/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7054 ft. | Measured PB depth: | 7016 ft. | | True Vertical TD: | 6984 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:20 Twp: 6S 96W | Footage: 780 FSL 809 FWL | | Bottom Hole Location: | Sec:20 Twp: 6S 96W | Footage: 780 FSL 809 FWL | | Log Types: | CBL;RESERVOIR MONITOR TOOL ELITE; MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1116 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 325, Top: 0 ft., Bottom: 1116 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7041 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 860, Top: 3838 ft., Bottom: 7041 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2138 ft. | | N | N | | MESAVERDE | 3838 ft. | | N | N | | CAMEO | 6445 ft. | | N | N | | ROLLINS | 6882 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 8/31/2007 Interval Top: 5204 ft. Interval Bottom: 6776 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 7/17/2007 | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/14/2007 | | Treatment Summary: | 3717 GAL 7 1/2 HCL; 981000 30/50 SAND; 26942 BBL SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6280 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/31/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CASING_PRESS | 1397 | | MCF_GAS | 1244 | | TUBING_PRESS | 1282 |
| | Perforation Data: | | Interval Top: | 5204 ft. | # Of Holes: | 125 | | Interval Bottom: | 6776 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 34 |
| Total Gas Produced (MCF) | 15528 |
| GOR | 456705 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.424 |
| Average MCFE per Day | 43.063 |
| Federal Financial Assurance | i | Y |
|
|
