Wellbore #00 Wellbore Classification: GW Status: SI - 12/1/2025 Measured TD: 7735 ft. Vertical TD: 7627 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 12/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20064947 | Expiration Date: | 11/12/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1150 FNL 436 FEL | | Bottom Hole Location: | Sec:36 Twp: 6S 96W | Footage: 1150 FNL 436 FEL | | Proposed Depth/Form: | 7744 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 160, Drill Unit: NE4 |
| | |

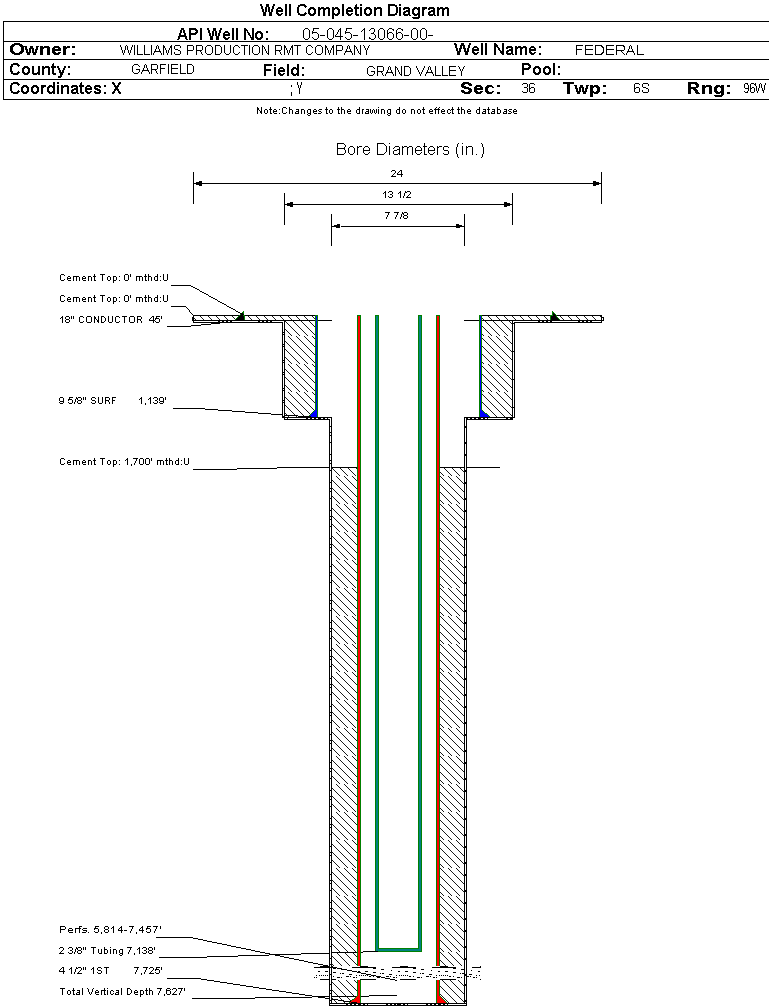

| Wellbore Completed | | Completion Date: | 5/28/2007 | | Spud Date: | 5/21/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7735 ft. | Measured PB depth: | 7489 ft. | | True Vertical TD: | 7627 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:36 Twp: 6S 96W | Footage: 1149 FNL 431 FEL | | Bottom Hole Location: | Sec:36 Twp: 6S 96W | Footage: 1149 FNL 431 FEL | | Log Types: | CBL; PE-ARRAY INDUCTION/GAMMA RAY/SP; MUDLOG | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1139 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 1139 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7725 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 865, Top: 1700 ft., Bottom: 7725 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2463 ft. | | N | N | | FORT UNION | 2748 ft. | | N | N | | MESAVERDE | 4466 ft. | | N | N | | CAMEO | 7085 ft. | | N | N | | ROLLINS | 7601 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: SI - 12/1/2025 Interval Top: 5814 ft. Interval Bottom: 7457 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/6/2007 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/6/2007 | | Treatment Summary: | 3080 GALS 7.5% HCL; 897,900# 30/50 SAND; 34,332 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7138 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/4/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CASING_PRESS | 2222 | | MCF_GAS | 1234 | | TUBING_PRESS | 1840 |
| | Perforation Data: | | Interval Top: | 5814 ft. | # Of Holes: | 118 | | Interval Bottom: | 7457 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 21 |
| Total Gas Produced (MCF) | 18519 |
| GOR | 881857 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.828 |
| Average MCFE per Day | 51.217 |
| Federal Financial Assurance | i | Y |
|
|
