Wellbore #00 Wellbore Classification: GW Status: PR - 9/25/2006 Measured TD: 8093 ft. Vertical TD: 7632 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/25/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20064919 | Expiration Date: | 11/12/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1980 FSL 2124 FWL | | Bottom Hole Location: | Sec:25 Twp: 6S 96W | Footage: 1980 FSL 2124 FWL | | Proposed Depth/Form: | 7957 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: S2 |
| | |

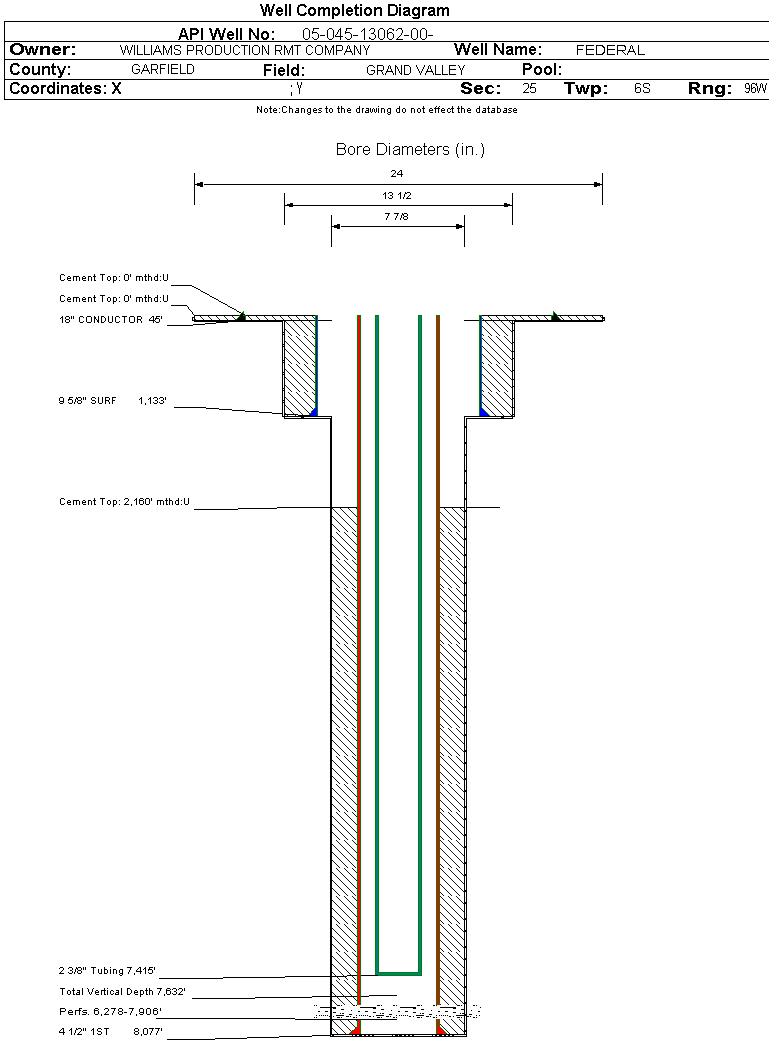

| Wellbore Completed | | Completion Date: | 4/29/2007 | | Spud Date: | 4/21/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 8093 ft. | Measured PB depth: | 8080 ft. | | True Vertical TD: | 7632 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:25 Twp: 6S 96W | Footage: 2113 FSL 2477 FWL | | Bottom Hole Location: | Sec:25 Twp: 6S 96W | Footage: 2113 FSL 2477 FWL | | Log Types: | CBL; RMTE | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: , Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1133 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 290, Top: , Bottom: 1133 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8077 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 874, Top: 2160 ft., Bottom: 8077 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2569 ft. | | N | N | | WILLIAMS FORK | 4817 ft. | | N | N | | CAMEO | 7451 ft. | | N | N | | ROLLINS | 7991 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 12/31/2007 Interval Top: 6278 ft. Interval Bottom: 7906 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 7/8/2007 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/30/2007 | | Treatment Summary: | 2998 GALS 7 1/2 % HCL; 876200 # 30/50 SAND; 37755 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7415 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/31/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1127 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CASING_PRESS | 1483 | | MCF_GAS | 1114 | | TUBING_PRESS | 1317 |
| | Perforation Data: | | Interval Top: | 6278 ft. | # Of Holes: | 107 | | Interval Bottom: | 7906 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 51 |
| Total Gas Produced (MCF) | 25024 |
| GOR | 490666 |
| GOR Determination | MCFE |
| Average BOE per Day | 11.959 |
| Average MCFE per Day | 69.369 |
| Federal Financial Assurance | i | Y |
|
|
