Wellbore #00 Wellbore Classification: GW Status: PR - 7/23/2007 Measured TD: 7072 ft. Vertical TD: 6528 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/23/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20064872 | Expiration Date: | 11/8/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2519 FNL 1645 FWL | | Bottom Hole Location: | Sec:5 Twp: 7S 95W | Footage: 2519 FNL 1645 FWL | | Proposed Depth/Form: | 7079 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-36 , Unit Acreage: 320, Drill Unit: N2 | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1706 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 1706 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7079 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

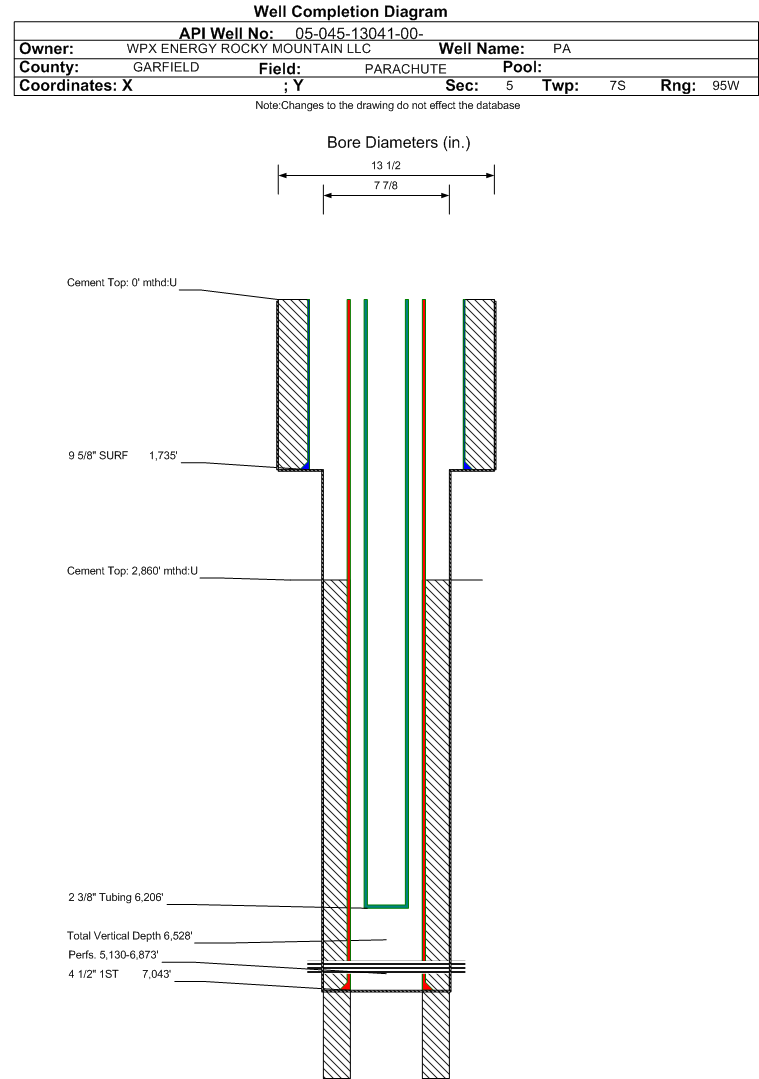

| Wellbore Completed | | Completion Date: | 4/14/2007 | | Spud Date: | 4/3/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7072 ft. | Measured PB depth: | 7000 ft. | | True Vertical TD: | 6528 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:5 Twp: 7S 95W | Footage: 2525 FNL 1659 FWL | | Bottom Hole Location: | Sec:5 Twp: 7S 95W | Footage: 2533 FNL 1656 FWL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1735 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 463, Top: 0 ft., Bottom: 1735 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7043 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 928, Top: 2860 ft., Bottom: 7943 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1468 ft. | | | | | MESAVERDE | 3799 ft. | | | | | CAMEO | 6455 ft. | | | | | ROLLINS | 6971 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 6/13/2007 Interval Top: 5130 ft. Interval Bottom: 6873 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 5/3/2007 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 5/2/2007 | | Treatment Summary: | 3000 GALS 7 1/2% HCL; 666,000# 30/50 SAND; 16,017 BBLS SLICKWATER (SUMMARY). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6206 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/13/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1084 | | CASING_PRESS | 1650 | | MCF_GAS | 1653 | | TUBING_PRESS | 1620 |
| | Perforation Data: | | Interval Top: | 5130 ft. | # Of Holes: | 111 | | Interval Bottom: | 6873 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 15 |
| Total Gas Produced (MCF) | 10335 |
| GOR | 689000 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.927 |
| Average MCFE per Day | 28.569 |
| Federal Financial Assurance | i | |
|
|
