Wellbore #00 Wellbore Classification: GW Status: TA - 11/5/2007 Measured TD: 10850 ft. Vertical TD: 10840 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW TA - 11/5/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20064620 | Expiration Date: | 10/30/2007 | | Proposed Top PZ Location: | Sec:9 Twp: 5S 96W | Footage: 1662 FNL 2314 FEL | | Bottom Hole Location: | Sec:9 Twp: 5S 96W | Footage: 1662 FNL 2314 FEL | | Proposed Depth/Form: | 12000 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15,510, Unit Acreage: , Drill Unit: |
| | |

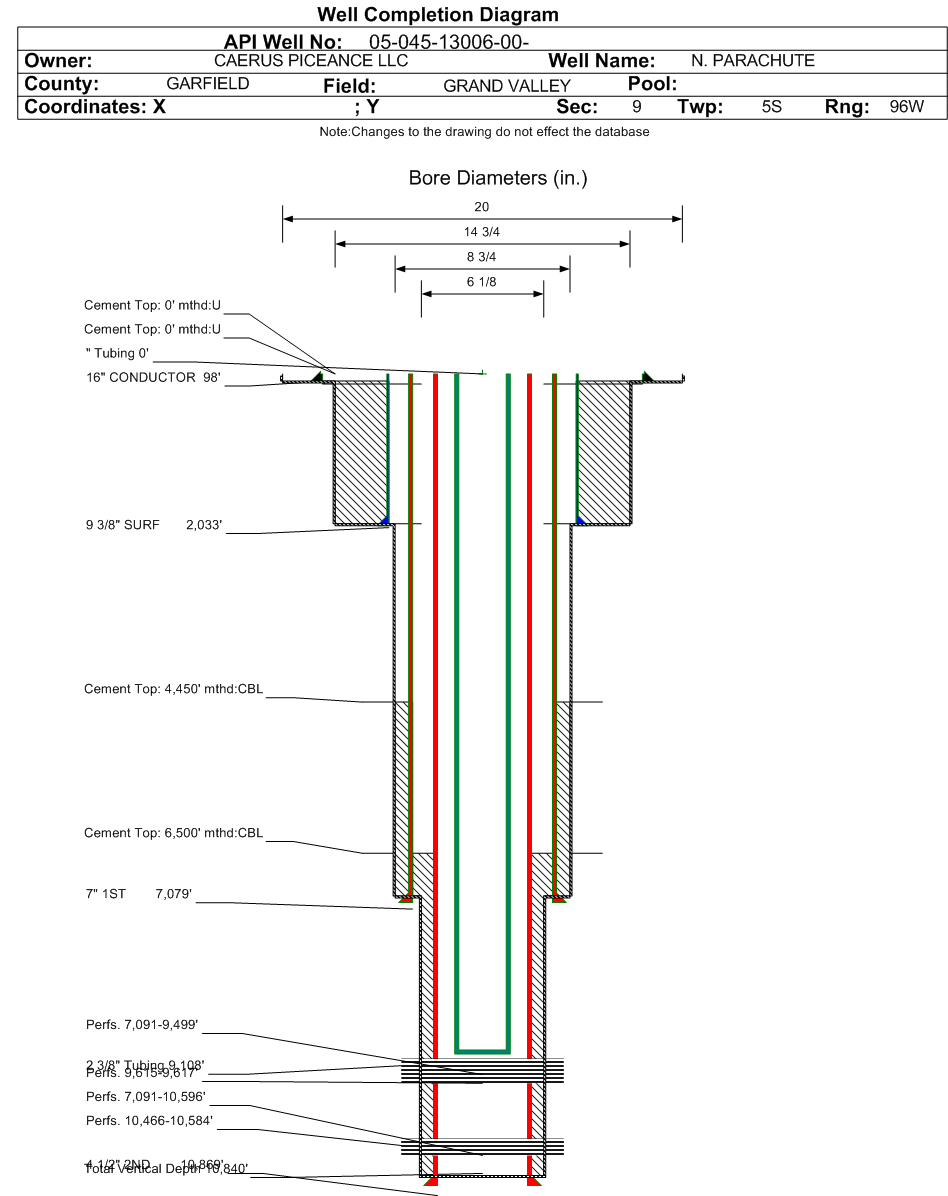

| Wellbore Completed | | Completion Date: | 7/21/2007 | | Spud Date: | 6/25/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 10850 ft. | Measured PB depth: | 10596 ft. | | True Vertical TD: | 10840 ft. | True Vertical PB depth: | 10587 ft. | | Top PZ Location: | Sec:9 Twp: 5S 96W | Footage: 1662 FNL 2314 FEL | | Bottom Hole Location: | Sec:9 Twp: 5S 96W | Footage: 1662 FNL 2314 FEL | | Log Types: | HDIL/ML/CZDL/CNL/GRL/CL;HDIL/ML/CZDL/CNL/GRL/CL; RPM; RPM; RPM/GSA; TEMP/GR, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 98 ft., Weight: 84# , Citings Type: ACTUAL | | Cement: | Sacks: 190, Top: 0 ft., Bottom: 138 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.375 in., Top: 0 ft., Depth: 2033 ft., Weight: 36# , Citings Type: ACTUAL | | Cement: | Sacks: 1405, Top: 0 ft., Bottom: 2033 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 7079 ft., Weight: 23# , Citings Type: ACTUAL | | Cement: | Sacks: 294, Top: 4450 ft., Bottom: 7079 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 10869 ft., Weight: 11.6# , Citings Type: ACTUAL | | Cement: | Sacks: 331, Top: 6500 ft., Bottom: 10869 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 2153 ft. | | N | N | | WASATCH G | 4782 ft. | | N | N | | OHIO CREEK | 6026 ft. | | N | N | | WILLIAMS FORK | 6468 ft. | | N | N | | CAMEO | 9355 ft. | | N | N | | ROLLINS | 9916 ft. | | N | N | | COZZETTE | 10156 ft. | | N | N | | SEGO | 10532 ft. | | N | N |
Formation SEGO Formation Classification: GW Status: TA - 2/4/2019 Interval Top: 10466 ft. Interval Bottom: 10584 ft.| Completed Information for Formation SEGO | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | SEGO | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/14/2007 | | Treatment Summary: | SEE ABOVE FOR TREATMENT PROCEDURE |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation SEGO. |
| | Perforation Data: | | Interval Top: | 10466 ft. | # Of Holes: | 16 | | Interval Bottom: | 10584 ft. | Hole Size: | 0.35 in. |
|
Formation RLNS Formation Classification: GW Status: TA - 2/4/2019 Interval Top: 9615 ft. Interval Bottom: 9617 ft.| Completed Information for Formation ROLLINS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | ROLLINS | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/14/2007 | | Treatment Summary: | SEE ABOVE FOR TREATMENT PROCEDURE |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation RLNS. |
| | Perforation Data: | | Interval Top: | 9615 ft. | # Of Holes: | 6 | | Interval Bottom: | 9617 ft. | Hole Size: | 0.35 in. |
|
Formation WFILS Formation Classification: GW Status: CM - 11/5/2007 Interval Top: 7091 ft. Interval Bottom: 10596 ft.| Completed Information for Formation WILLIAMS FORK-ILES | | 1st Production Date: | 11/15/2007 | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK-ILES | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/14/2007 | | Treatment Summary: | FRACTURED WITH: 23,761 BBLS SLICKWATER; 14,000 LBS 40/70, 940,000 LBS 20/40 JORDAN UNIMIN |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9108 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/5/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 852 | | BBLS_OIL | 0 | | BTU_GAS | 961 | | CALC_BBLS_H2O | 852 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1684 | | CASING_PRESS | 2590 | | MCF_GAS | 1684 | | TUBING_PRESS | 2590 |
| | Perforation Data: | | Interval Top: | 7091 ft. | # Of Holes: | 192 | | Interval Bottom: | 10596 ft. | Hole Size: | 0.35 in. |
|
Formation WMFK Formation Classification: GW Status: TA - 2/4/2019 Interval Top: 7091 ft. Interval Bottom: 9499 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/14/2007 | | Treatment Summary: | SEE ABOVE FOR TREATMENT INFORMATION. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WMFK. |
| | Perforation Data: | | Interval Top: | 7091 ft. | # Of Holes: | 170 | | Interval Bottom: | 9499 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 05/29/2024 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2029 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (TA ) | Y | Defined Inactive
07/31/2018 |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
