Wellbore #00 Wellbore Classification: GW Status: PR - 9/8/2007 Measured TD: 6535 ft. Vertical TD: 6490 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/8/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20064405 | Expiration Date: | 10/12/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 400 FSL 660 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 92W | Footage: 400 FSL 660 FEL | | Proposed Depth/Form: | 6522 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 80, Drill Unit: S2SE |
| | |

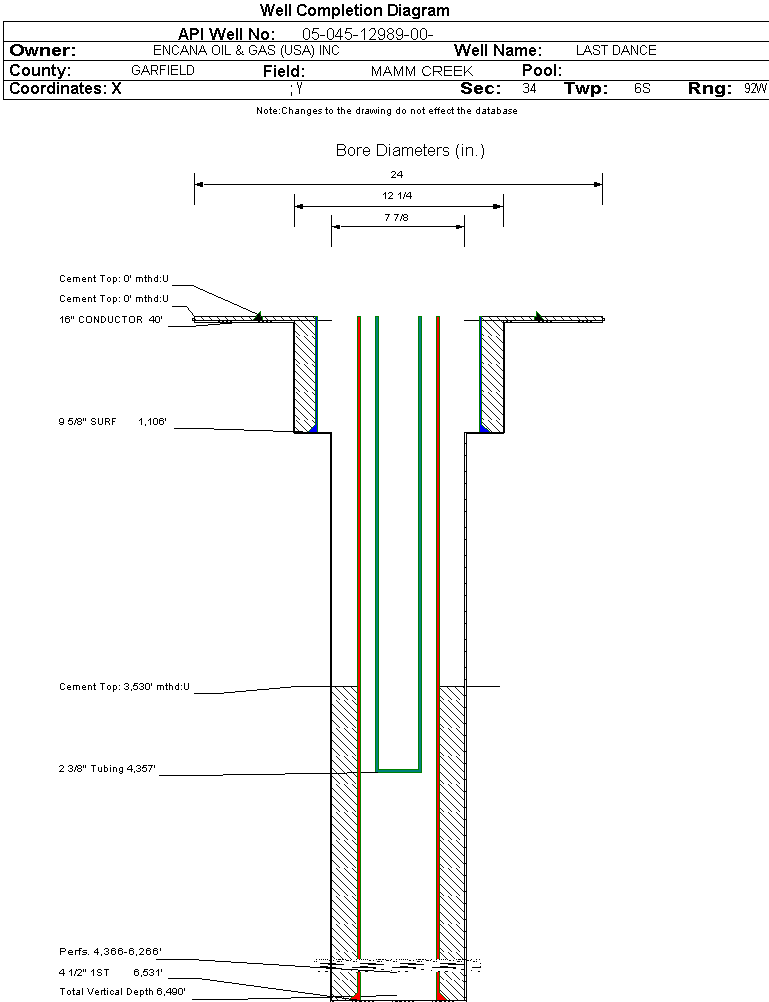

| Wellbore Completed | | Completion Date: | 7/13/2007 | | Spud Date: | 7/6/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 6535 ft. | Measured PB depth: | 6480 ft. | | True Vertical TD: | 6490 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:34 Twp: 6S 92W | Footage: 408 FSL 654 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 92W | Footage: 408 FSL 654 FEL | | Log Types: | CBL, RST GR, CBL/GR/TEMP/ RST/GR | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 350, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1106 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 570, Top: 0 ft., Bottom: 1106 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6531 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 855, Top: 3530 ft., Bottom: 6535 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3328 ft. | N | N | | WILLIAMS FORK | 3329 ft. | 6428 ft. | N | N | | ROLLINS | 6429 ft. | 6535 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 9/8/2007 Interval Top: 4366 ft. Interval Bottom: 6266 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 8/26/2007 | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/23/2007 | | Treatment Summary: | STAGES 01-06 TREATED WITH A TOTAL OF 40,264 BBLS OF SLICKWATER, 971,870 LBS 20-40 WHITE SAND, 13,500 LBS NON API SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 4357 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/8/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 590 | | BBLS_OIL | 2 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 590 | | CALC_BBLS_OIL | 2 | | CALC_GOR | 381500 | | CALC_MCF_GAS | 763 | | CASING_PRESS | 1975 | | MCF_GAS | 763 | | TUBING_PRESS | 1375 |
| | Perforation Data: | | Interval Top: | 4366 ft. | # Of Holes: | 136 | | Interval Bottom: | 6266 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 55 |
| Total Gas Produced (MCF) | 13616 |
| GOR | 247563 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.587 |
| Average MCFE per Day | 38.197 |
| Federal Financial Assurance | i | |
|
|
