COGIS - WELL SCOUT CARD

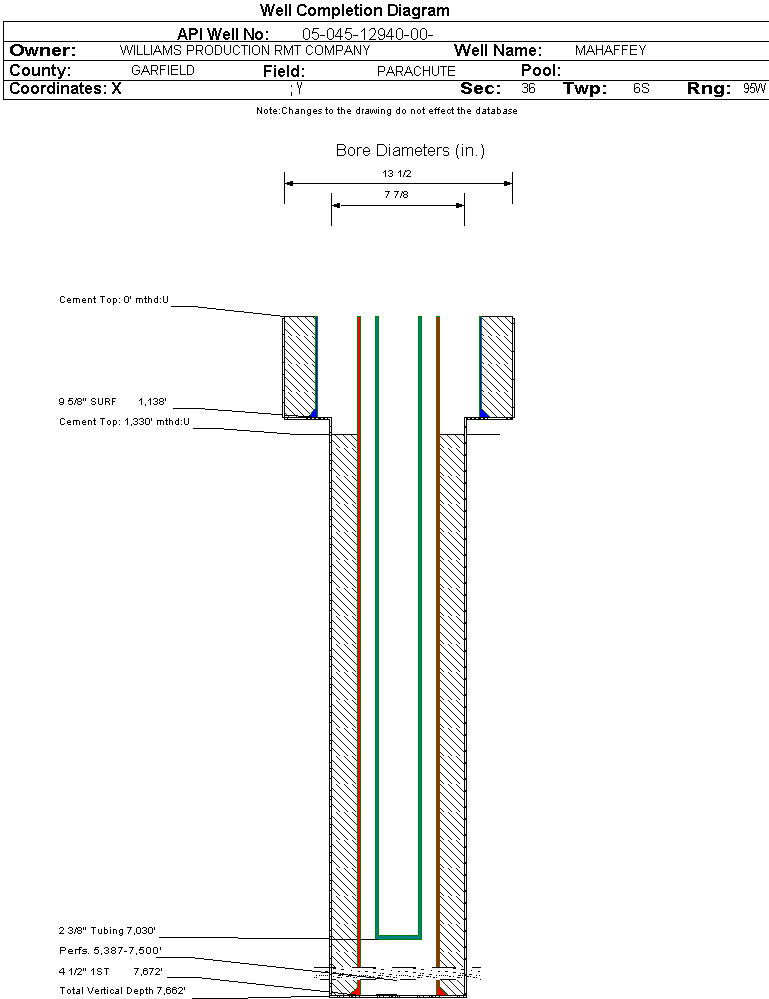

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-12940		Well Classification: GW Status: PR - 2/1/2022
Well Name/No:MAHAFFEY #PA 413-36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/1/2022
FacilityID:287267LocationID:334597
County:GARFIELD #045Location:NWSW 36 6S95W 6
Field:PARACHUTE - #67350Elevation:5242 ft.
Basin:PICEANCE BASIN
Planned Location:1863FSL  1095 FWLLat/Long: 39.478720 / -107.952210Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.478725 / -107.952214Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/1/2022             Measured TD: 7687 ft.    Vertical TD: 7662 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/1/2022
Wellbore PermitDIRECTIONAL
Permit #:20064346 Expiration Date:10/3/2007
Proposed Top PZ Location:Sec: Twp: Footage: 2223 FSL  779 FWL
Bottom Hole Location:Sec:36 Twp: 6S 95W Footage: 2223 FSL  779 FWL
Proposed Depth/Form:7703 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-35 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:3/8/2007
Spud Date:2/27/2007Spud Date Is:ACTUAL
Measured TD:7687 ft.Measured PB depth:7638 ft.
True Vertical TD:7662 ft.True Vertical PB depth:
Top PZ Location:Sec:36 Twp: 6S 95WFootage: 2217 FSL  783 FWL
Bottom Hole Location:Sec:36 Twp: 6S 95WFootage: 2217 FSL  783 FWL
Log Types:CBL; HIGH RESOLUTION IND; SPECTRAL DENSITY, DUAL SPACED NEUTRON
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1138 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 285, Top: 0 ft., Bottom: 1138 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7672 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1011, Top: 1330 ft., Bottom: 7672 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1781 ft.NN
MESAVERDE4096 ft.NN
CAMEO6863 ft.NN
ROLLINS7551 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/1/2022                  Interval Top: 5387 ft.    Interval Bottom: 7500 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:5/8/2007Choke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/4/2007
Treatment Summary:4185 GALS 7 1/2% HCL, 914,200# 30/50 SAND, 21,416 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:7030 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/22/2007Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CASING_PRESS 1365
MCF_GAS 1177
TUBING_PRESS 1185
Perforation Data:
Interval Top:5387 ft.# Of Holes:135
Interval Bottom:7500 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)7
Total Gas Produced (MCF)5251
GOR750142
GOR DeterminationMCFE
Average BOE per Day2.503
Average MCFE per Day14.510

 Federal Financial Assurance  i

 Tribal Well  i No
