Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-12821		Well Classification: GW	Status: PR - 7/17/2007
Well Name/No:	FEDERAL #RMV 166-8 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	COC62160
Facility Status:	PR	Status Date	7/17/2007
FacilityID:	286865	LocationID:	335743
County:	GARFIELD #045	Location:	NESE 8 6S94W 6
Field:	RULISON - #75400	Elevation:	5940 ft.
Basin:	PICEANCE BASIN
Planned Location:	1804FSL 510 FEL	Lat/Long: 39.537417 / -107.904515	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.537420 / -107.904519	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 7/17/2007 Measured TD: 8933 ft. Vertical TD: 8757 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 7/17/2007
Wellbore Permit			DIRECTIONAL
Permit #:	20074082	Expiration Date:	9/20/2008
Proposed Top PZ Location:	Sec: Twp:	Footage: 2058 FSL 1925 FEL
Bottom Hole Location:	Sec:8 Twp: 6S 94W	Footage: 2058 FSL 1925 FEL
Proposed Depth/Form:	9012 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: S/2

Wellbore Completed
Completion Date:	6/14/2008
Spud Date:	5/29/2008	Spud Date Is:	ACTUAL
Measured TD:	8933 ft.	Measured PB depth:	8914 ft.
True Vertical TD:	8757 ft.	True Vertical PB depth:	8738 ft.
Top PZ Location:	Sec:8 Twp: 6S 94W	Footage: 2060 FSL 1899 FEL
Bottom Hole Location:	Sec:8 Twp: 6S 94W	Footage: 2060 FSL 1899 FEL
Log Types:	CBL, RMTE, MUD

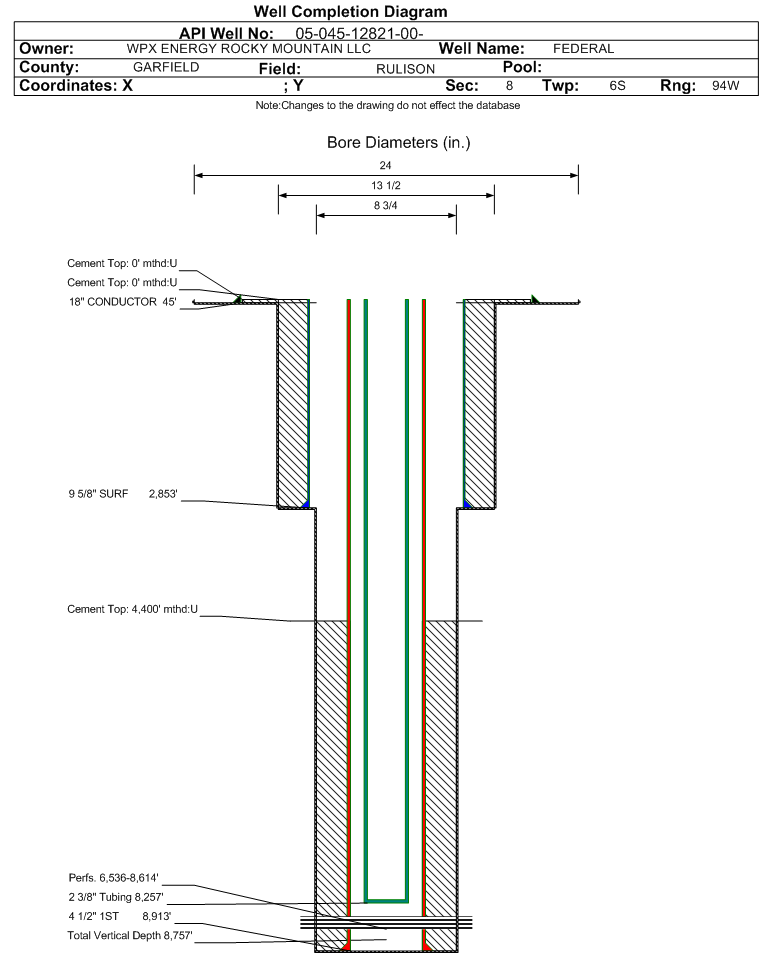

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 48 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method:
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2853 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 797, Top: 0 ft., Bottom: 2853 ft., Determination Method:
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8913 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1280, Top: 4400 ft., Bottom: 8913 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	2588 ft.		N	N
MESAVERDE	5166 ft.		N	N
CAMEO	7974 ft.		N	N

Formation WFCM Formation Classification: GW Status: PR - 2/1/2009 Interval Top: 6536 ft. Interval Bottom: 8614 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	10/19/2008	Choke Size:	0.172 in.
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	10/17/2008
Treatment Summary:	3492 GALS 7.5% HCL; 934,200# 20/40 SAND; 24,692 BBLS SLICKWATER

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	8257 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	2/1/2009	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BBLS_H2O	0
BTU_GAS	1170
CALC_BBLS_OIL	0
CASING_PRESS	986
MCF_GAS	963
TUBING_PRESS	714

Perforation Data:
Interval Top:	6536 ft.	# Of Holes:	118
Interval Bottom:	8614 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	61
Total Gas Produced (MCF)	15481
GOR	253786
GOR Determination	MCFE
Average BOE per Day	7.476
Average MCFE per Day	43.371

Federal Financial Assurance

Tribal Well
