Wellbore #00 Wellbore Classification: GW Status: PR - 9/10/2012 Measured TD: 9560 ft. Vertical TD: 788 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/10/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20081689 | Expiration Date: | 5/4/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2005 FSL 715 FWL | | Bottom Hole Location: | Sec:8 Twp: 6S 94W | Footage: 2005 FSL 715 FWL | | Proposed Depth/Form: | 9486 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: S/2 |
| | |

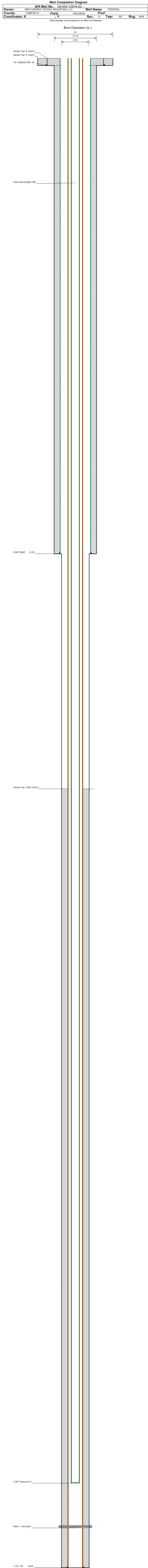

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 5/3/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 9560 ft. | Measured PB depth: | 9498 ft. | | True Vertical TD: | 788 ft. | True Vertical PB depth: | 8726 ft. | | Top PZ Location: | Sec:8 Twp: 6s 94w | Footage: 2451 FSL 1863 FWL | | Bottom Hole Location: | Sec:8 Twp: 6S 94W | Footage: 2437 FSL 1836 FWL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE, MUD | | Log Types: | | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 3133 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 875, Top: 0 ft., Bottom: 3133 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9545 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1275, Top: 4620 ft., Bottom: 9545 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 7138 ft., Depth: , Bottom: 7282 ft., Sacks: 50, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2549 ft. | | | | | MESAVERDE | 5786 ft. | | | | | CAMEO | 8591 ft. | | | | | ROLLINS | 9449 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 9/10/2012 Interval Top: 7138 ft. Interval Bottom: 9294 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 8/7/2008 | | Treatment Summary: | 3000 GAL 7 1/2% HCL; 691,600 # 20/40 SAND; 21,006 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9011 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_GOR | 0 | | CASING_PRESS | 1676 | | MCF_GAS | 1259 | | TUBING_PRESS | 1260 |
| | Perforation Data: | | Interval Top: | 7138 ft. | # Of Holes: | 118 | | Interval Bottom: | 9294 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 66 |
| Total Gas Produced (MCF) | 17390 |
| GOR | 263484 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.399 |
| Average MCFE per Day | 48.706 |
| Federal Financial Assurance | i | Y |
|
|
