Wellbore #00 Wellbore Classification: GW Status: PR - 2/28/2009 Measured TD: 8973 ft. Vertical TD: 8688 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/28/2009 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20084134 | Expiration Date: | 8/4/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 772 FSL 1999 FEL | | Bottom Hole Location: | Sec:8 Twp: 6S 94W | Footage: 772 FSL 1999 FEL | | Proposed Depth/Form: | 9047 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: S/2 |
| | |

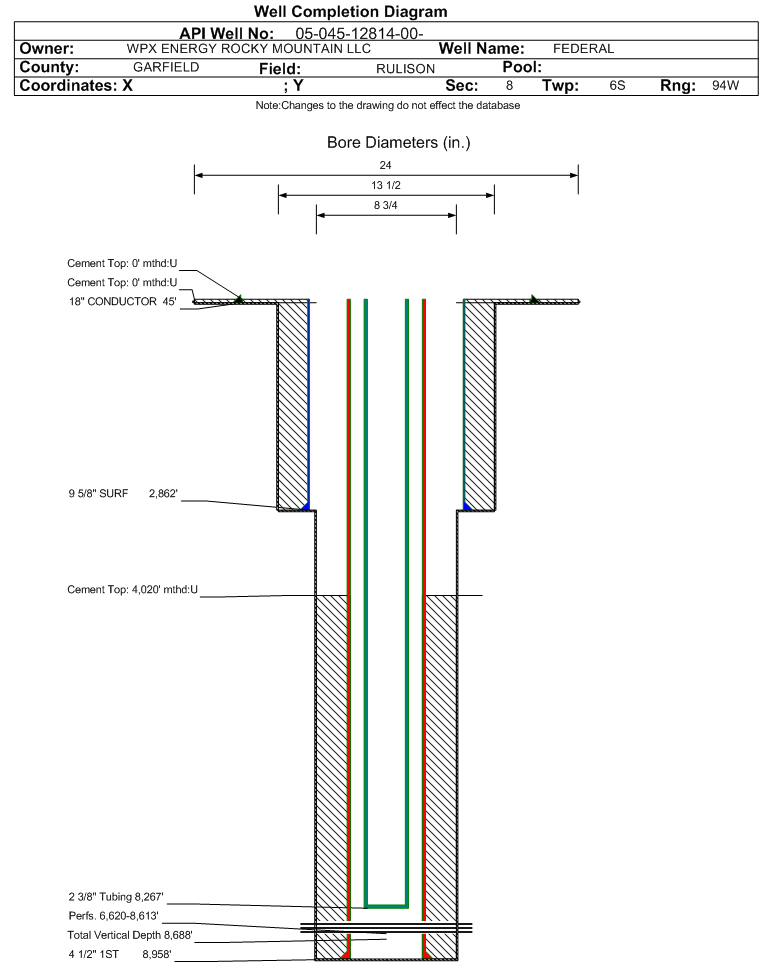

| Wellbore Completed | | Completion Date: | 11/21/2008 | | Spud Date: | 10/30/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 8973 ft. | Measured PB depth: | 8926 ft. | | True Vertical TD: | 8688 ft. | True Vertical PB depth: | 8641 ft. | | Top PZ Location: | Sec:8 Twp: 6S 94W | Footage: 783 FSL 2029 FEL | | Bottom Hole Location: | Sec:8 Twp: 6S 94W | Footage: 783 FSL 2029 FEL | | Log Types: | CBL, HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2862 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 703, Top: 0 ft., Bottom: 2862 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8958 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1236, Top: 4020 ft., Bottom: 8958 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2624 ft. | | N | N | | MESAVERDE | 5264 ft. | | N | N | | CAMEO | 8042 ft. | | N | N | | ROLLINS | 8944 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 2/28/2009 Interval Top: 6620 ft. Interval Bottom: 8613 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/10/2009 | Choke Size: | 0.188 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/3/2009 | | Treatment Summary: | 3482 GALS 7 1/2% HCL; 684100 # 20/40 SAND; 19472 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8267 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/28/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1096 | | CALC_GOR | 0 | | CASING_PRESS | 1926 | | GRAVITY_OIL | 55 | | MCF_GAS | 1255 | | TUBING_PRESS | 1566 |
| | Perforation Data: | | Interval Top: | 6620 ft. | # Of Holes: | 112 | | Interval Bottom: | 8613 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 60 |
| Total Gas Produced (MCF) | 15805 |
| GOR | 263416 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.615 |
| Average MCFE per Day | 44.189 |
| Federal Financial Assurance | i | Y |
|
|
