Wellbore #00 Wellbore Classification: GW Status: PR - 2/9/2017 Measured TD: 8544 ft. Vertical TD: 8387 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/9/2017 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20063786 | Expiration Date: | 9/14/2007 | | Proposed Top PZ Location: | Sec:4 Twp: 7S 94W | Footage: 241 FSL 440 FWL | | Bottom Hole Location: | Sec:4 Twp: 7S 94W | Footage: 241 FSL 440 FWL | | Proposed Depth/Form: | 8561 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 640, Drill Unit: ALL |
| | |

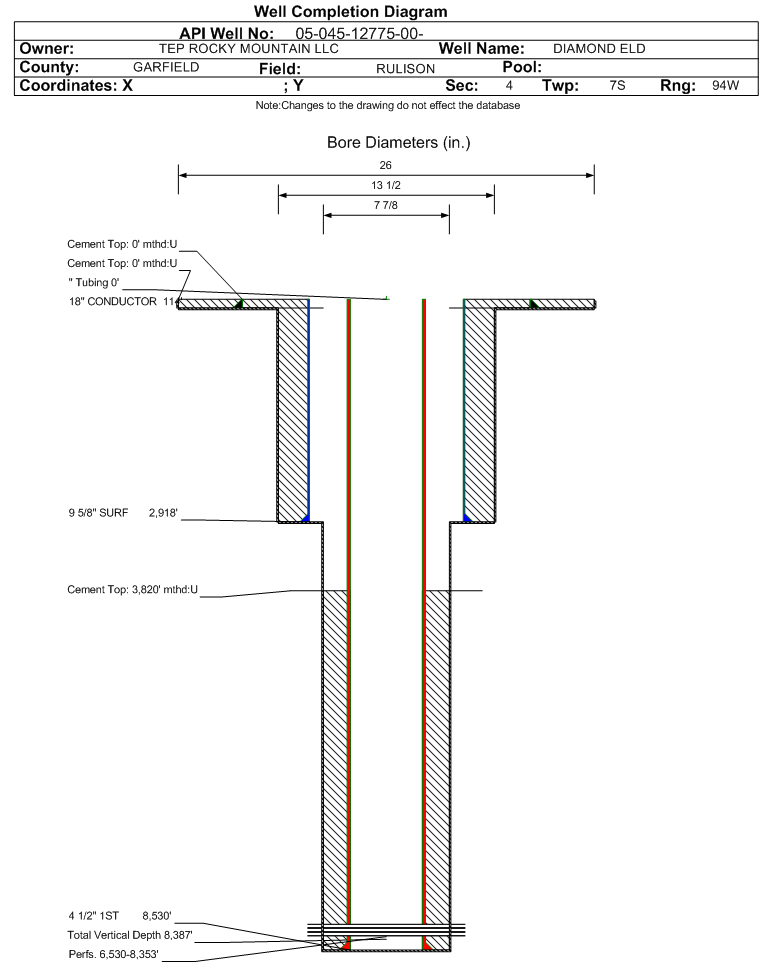

| Wellbore Completed | | Completion Date: | 4/17/2007 | | Spud Date: | 3/28/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 8544 ft. | Measured PB depth: | 8484 ft. | | True Vertical TD: | 8387 ft. | True Vertical PB depth: | 8327 ft. | | Top PZ Location: | Sec:4 Twp: 7S 94W | Footage: 241 FSL 440 FWL | | Bottom Hole Location: | Sec:4 Twp: 7S 94W | Footage: 247 FSL 423 FWL | | Log Types: | CBL; PLATFORM EXP, ARRAY INDUCTION TOOL, GR/SP | | Log Types: | | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 114 ft., Weight: 47.4 , Citings Type: ACTUAL | | Cement: | Sacks: 190, Top: 0 ft., Bottom: 114 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2918 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 757, Top: 0 ft., Bottom: 2918 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8530 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 980, Top: 3820 ft., Bottom: 8530 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2689 ft. | | | | | OHIO CREEK | 5000 ft. | | | | | MESAVERDE | 5091 ft. | | | | | WILLIAMS FORK | 6508 ft. | | | | | CAMEO | 7599 ft. | | | | | ROLLINS | 8564 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 2/9/2017 Interval Top: 6530 ft. Interval Bottom: 8353 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 6/12/2007 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/11/2007 | | Treatment Summary: | 3250 GALS 7 1/2% HCL, 602,700# 20/40 SAND, 17,295 BBLS SLICKWATER |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CASING_PRESS | 1759 | | MCF_GAS | 1461 | | TUBING_PRESS | 1596 |
| | Perforation Data: | | Interval Top: | 6530 ft. | # Of Holes: | 118 | | Interval Bottom: | 8353 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 12 |
| Total Gas Produced (MCF) | 11045 |
| GOR | 920416 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.250 |
| Average MCFE per Day | 30.460 |
| Federal Financial Assurance | i | |
|
|
