COGIS - WELL SCOUT CARD

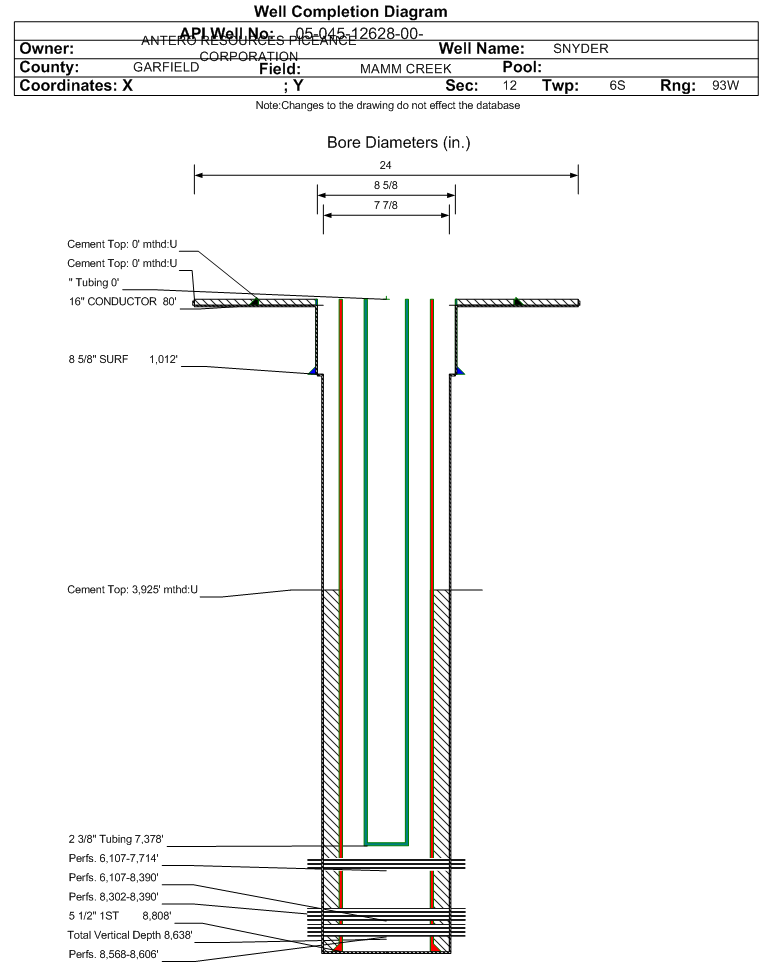

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-12628		Well Classification: GW Status: PR - 5/1/2020
Well Name/No:SNYDER #C8
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2020
FacilityID:286234LocationID:336021
County:GARFIELD #045Location:SESE 12 6S93W 6
Field:MAMM CREEK - #52500Elevation:5363 ft.
Basin:PICEANCE BASIN
Planned Location:779FSL  366 FELLat/Long: 39.535790 / -107.716370Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.535759 / -107.716433Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/1/2020             Measured TD: 8820 ft.    Vertical TD: 8638 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/1/2020
Wellbore PermitDIRECTIONAL
Permit #:20073149 Expiration Date:7/29/2008
Proposed Top PZ Location:Sec: Twp: Footage: 150 FNL  871 FEL
Bottom Hole Location:Sec:13 Twp: 6S 93W Footage: 150 FNL  871 FEL
Proposed Depth/Form:8726 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: COZZ , Formation: COZZETTE , Order: 191-25 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: CRCRN , Formation: CORCORAN , Order: 191-25 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-25 , Unit Acreage: 320, Drill Unit: N/2
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: 191-25 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-14 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:9/6/2007
Spud Date:8/25/2007Spud Date Is:ACTUAL
Measured TD:8820 ft.Measured PB depth:8770 ft.
True Vertical TD:8638 ft.True Vertical PB depth:8588 ft.
Top PZ Location:Sec:13 Twp: 6S 93WFootage: 629 FNL  238 FEL
Bottom Hole Location:Sec:13 Twp: 6S 93WFootage: 629 FNL  238 FEL
Log Types:TRIPLE COMBO (RMTE/CCL/GR) & CBL
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 80 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 8.625 in., Size: 8.625 in., Top: 0 ft., Depth: 1012 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 330, Top: 0 ft., Bottom: 1025 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8808 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 718, Top: 3925 ft., Bottom: 8820 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK4059 ft.NN
CAMEO6782 ft.NN
ROLLINS7739 ft.NN
COZZETTE8299 ft.NN
CORCORAN8559 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  SI - 10/1/2025                 Interval Top: 8568 ft.    Interval Bottom: 8606 ft.

 Completed Information for Formation CORCORAN
1st Production Date:11/27/2007Choke Size:
Formation Name:CORCORANCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/10/2007
Treatment Summary:CORC-COZZ-FRAC W/11,718 BBLS OF 2% KCL, 212,800 LBS 30/50 & 112,000 LBS 20/40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CRCRN.
Perforation Data:
Interval Top:8568 ft.# Of Holes:112
Interval Bottom:8606 ft.Hole Size:0.42 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 5/1/2020                  Interval Top: 8302 ft.    Interval Bottom: 8390 ft.

 Completed Information for Formation COZZETTE
1st Production Date:11/27/2007Choke Size:
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/19/2010
Treatment Summary:A portion of the COZZ is T&A'd from 8390' to 8439'.
Formation Treatment
Treatment Date:11/10/2007
Treatment Summary:CORC-COZZ-FRAC W/11,718 BBLS OF 2% KCL, 212,800 LBS 30/50 & 112,000 LBS 20/40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation COZZ.
Perforation Data:
Interval Top:8302 ft.# Of Holes:32
Interval Bottom:8390 ft.Hole Size:0.42 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/1/2020                  Interval Top: 6107 ft.    Interval Bottom: 7714 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:11/27/2007Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/19/2010
Treatment Summary:Frac'd with 52,768 bbls 2% KCL SLickwater and 1049300 lbs 20/40 sand Perfs - 168 (Original) + 126 (Recomplete) = 294
Formation Treatment
Treatment Date:11/11/2007
Treatment Summary:WFCM-FRAC W/19,603 BBL 2% KCL, 337,800 LBS 30/50 ECONO SAND & 196,900 LBS 20/40 CAR LITE SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:6107 ft.# Of Holes:294
Interval Bottom:7714 ft.Hole Size:0.42 in.

Formation WFILS                   Formation Classification:  GW                   Status:  CM - 10/13/2011                Interval Top: 6107 ft.    Interval Bottom: 8390 ft.

 Completed Information for Formation WILLIAMS FORK-ILES
1st Production Date:11/27/2007Choke Size:
Formation Name:WILLIAMS FORK-ILESCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/19/2010
Treatment Summary:See individual formations for summary of formation treatment Perfs -32 (COZZ Open) + 168 (WFCM Original) + 126 (Recomplete) = 294
Formation Treatment
Treatment Date:11/10/2007
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7378 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/4/2011Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 16
BTU_GAS 1078
CALC_BBLS_H2O 16
CALC_GOR 0
CALC_MCF_GAS 258
CASING_PRESS 820
MCF_GAS 258
TUBING_PRESS 715
Perforation Data:
Interval Top:6107 ft.# Of Holes:326
Interval Bottom:8390 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)166
Total Gas Produced (MCF)22487
GOR135463
GOR DeterminationMCFE
Average BOE per Day11.089
Average MCFE per Day64.299

 Federal Financial Assurance  i

 Tribal Well  i No
