Wellbore #00 Wellbore Classification: GW Status: PR - 6/7/2006 Measured TD: 7190 ft. Vertical TD: 6744 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/7/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20062887 | Expiration Date: | 8/10/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 857 FSL 1565 FWL | | Bottom Hole Location: | Sec:29 Twp: 6S 96W | Footage: 857 FSL 1565 FWL | | Proposed Depth/Form: | 7183 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 495-5&510-, Unit Acreage: , Drill Unit: |
| | |

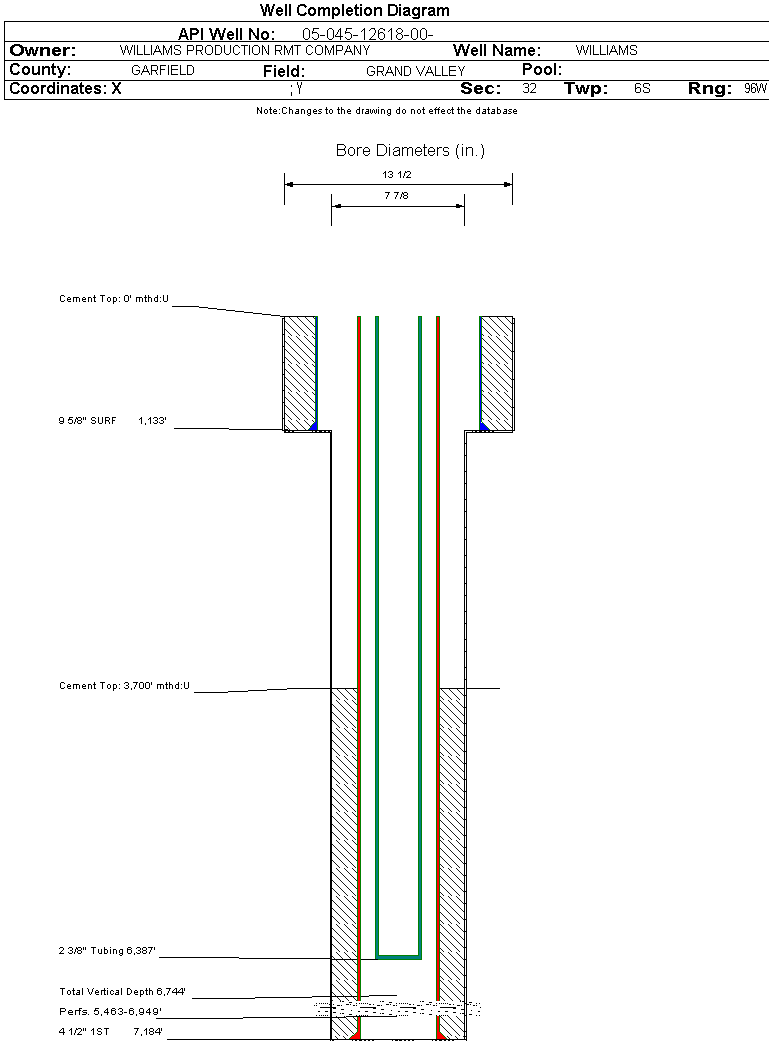

| Wellbore Completed | | Completion Date: | 12/11/2006 | | Spud Date: | 12/2/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7190 ft. | Measured PB depth: | 7160 ft. | | True Vertical TD: | 6744 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:29 Twp: 6S 96W | Footage: 858 FSL 1523 FWL | | Bottom Hole Location: | Sec:29 Twp: 6S 96W | Footage: 858 FSL 1523 FWL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1133 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 325, Top: , Bottom: 1133 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7184 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 830, Top: 3700 ft., Bottom: 7184 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2113 ft. | | N | N | | MESAVERDE | 3952 ft. | | N | N | | CAMEO | 6538 ft. | | N | N | | ROLLINS | 7012 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 3/10/2007 Interval Top: 5463 ft. Interval Bottom: 6949 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/27/2007 | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/26/2007 | | Treatment Summary: | 3473 GALS 7 1/2% HCL; 818100 # 30/50 SAND; 19517 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6387 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/10/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CASING_PRESS | 1883 | | MCF_GAS | 1444 | | TUBING_PRESS | 1779 |
| | Perforation Data: | | Interval Top: | 5463 ft. | # Of Holes: | 98 | | Interval Bottom: | 6949 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 14 |
| Total Gas Produced (MCF) | 9223 |
| GOR | 658785 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.399 |
| Average MCFE per Day | 25.543 |
| Federal Financial Assurance | i | Y |
|
|
