COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-12605		Well Classification: GW Status: PR - 2/24/2007
Well Name/No:CIRCLE B LAND #22C-35-692
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/24/2007
FacilityID:286064LocationID:334703
County:GARFIELD #045Location:SWNE 35 6S92W 6
Field:MAMM CREEK - #52500Elevation:5985 ft.
Basin:PICEANCE BASIN
Planned Location:1934FNL  1975 FELLat/Long: 39.485710 / -107.631570Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.485696 / -107.631569Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/24/2007             Measured TD: 7262 ft.    Vertical TD: 7032 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/24/2007
Wellbore Permit
Permit #:20062779 Expiration Date:8/7/2007
Proposed Top PZ Location:Sec: Twp: Footage: 1801 FNL  1988 FWL
Bottom Hole Location:Sec:35 Twp: 6S 92W Footage: 1801 FNL  1988 FWL
Proposed Depth/Form:7223 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-10 , Unit Acreage: 640, Drill Unit: ALL
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 640, Drill Unit: ALL
Wellbore Completed
Completion Date:10/23/2006
Spud Date:10/11/2006Spud Date Is:ACTUAL
Measured TD:7262 ft.Measured PB depth:7207 ft.
True Vertical TD:7032 ft.True Vertical PB depth:6977 ft.
Top PZ Location:Sec:35 Twp: 6S 92WFootage: 1813 FNL  2160 FWL
Bottom Hole Location:Sec:35 Twp: 6S 92WFootage: 1813 FNL  2160 FWL
Log Types:HALLIBURTON HRI; SD/DSN; WEAHERFORD CBL; TEMP LOG; MUDLOG

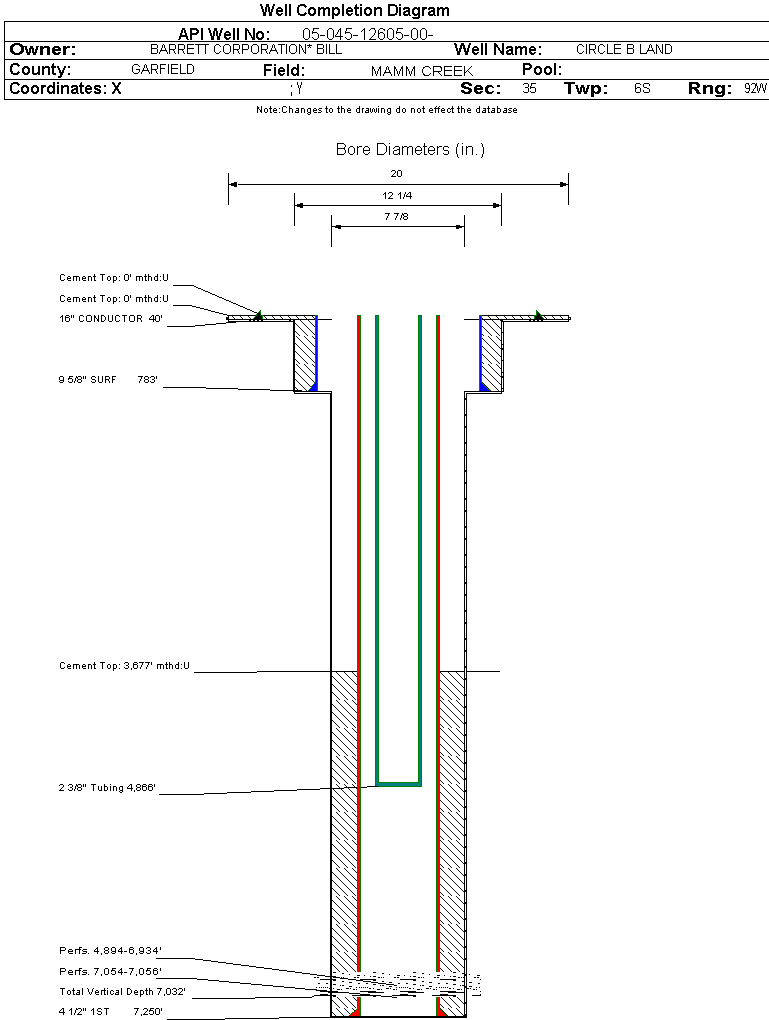

Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 783 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 0 ft., Bottom: 783 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7250 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 800, Top: 3677 ft., Bottom: 7250 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3185 ft.NN
ROLLINS6980 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 2/24/2007                 Interval Top: 7054 ft.    Interval Bottom: 7056 ft.

 Completed Information for Formation ROLLINS
1st Production Date:1/29/2007Choke Size:0.000 in.
Formation Name:ROLLINSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/23/2007
Treatment Summary:2,653 BBLS. OF SLICKWATER; 59,155 LBS. OF 20-40 SAND
Tubing Size:2.375 in.Tubing Setting Depth:4866 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/24/2007Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 2
BTU_GAS 1
CALC_BBLS_OIL 2
CALC_GOR 42588
CALC_MCF_GAS 76
MCF_GAS 76
Perforation Data:
Interval Top:7054 ft.# Of Holes:4
Interval Bottom:7056 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 2/24/2007                 Interval Top: 4894 ft.    Interval Bottom: 6934 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:1/29/2007Choke Size:0.000 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/23/2007
Treatment Summary:50,408 BBLS. OF SLICKWTER; 1,123,995 LBS. OF 20-40 SAND
Tubing Size:2.375 in.Tubing Setting Depth:4866 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/24/2007Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 34
BTU_GAS 1
CALC_BBLS_OIL 36
CALC_GOR 42588
CALC_MCF_GAS 1517
MCF_GAS 1441
Perforation Data:
Interval Top:4894 ft.# Of Holes:148
Interval Bottom:6934 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)88
Total Gas Produced (MCF)9745
GOR110738
GOR DeterminationMCFE
Average BOE per Day4.846
Average MCFE per Day28.104

 Federal Financial Assurance  i

 Tribal Well  i No
