Wellbore #00 Wellbore Classification: GW Status: PR - 6/1/2024 Measured TD: 10725 ft. Vertical TD: 10657 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20075265 | Expiration Date: | 9/12/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1073 FSL 2249 FEL | | Bottom Hole Location: | Sec:29 Twp: 6S 95W | Footage: 1073 FSL 2249 FEL | | Proposed Depth/Form: | 10500 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CSLGT , Formation: CASTLEGATE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: SEGO , Formation: SEGO , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: , Drill Unit: |
| | |

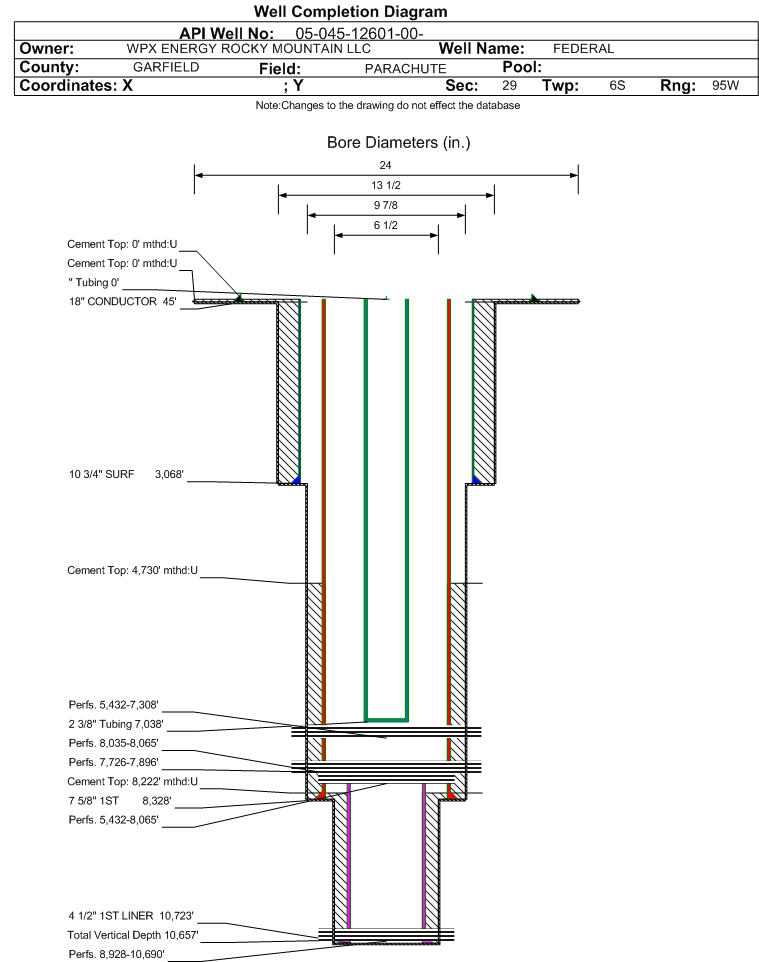

| Wellbore Completed | | Completion Date: | 11/10/2007 | | Spud Date: | 9/29/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 10725 ft. | Measured PB depth: | 9860 ft. | | True Vertical TD: | 10657 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:29 Twp: 6S 95W | Footage: 1075 FSL 2229 FEL | | Bottom Hole Location: | Sec:29 Twp: 6S 95W | Footage: 1023 FSL 2229 FEL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE. | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE. | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 10.75 in., Top: 0 ft., Depth: 3068 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1020, Top: 0 ft., Bottom: 3068 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 9.875 in., Size: 7.625 in., Top: 0 ft., Depth: 8328 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1030, Top: 4730 ft., Bottom: 8328 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.5 in., Size: 4.5 in., Top: 7933 ft., Depth: 10723 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 837, Top: 8222 ft., Bottom: 10723 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1854 ft. | | N | N | | MESAVERDE | 3998 ft. | | N | N | | CAMEO | 6725 ft. | | N | N | | ROLLINS | 7409 ft. | | N | N | | COZZETTE | 7707 ft. | | N | N | | CORCORAN | 7969 ft. | | N | N | | MANCOS A | 8525 ft. | | N | N | | MANCOS B | 9748 ft. | | N | N |
Formation MNCS Formation Classification: GW Status: AB - 7/22/2009 Interval Top: 8928 ft. Interval Bottom: 10690 ft.| Completed Information for Formation MANCOS | | 1st Production Date: | 9/22/2008 | Choke Size: | | | Formation Name: | MANCOS | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 7/22/2009 | | Treatment Summary: | Mancos A perfs: 8928-9678 squeezed on 11/8/2008.
Mancos B perfs: 9882-9946 closed with CIBP @9860 w/ 4 sxs on 7/22/2009. | | Formation Treatment | | Treatment Date: | 10/23/2008 | | Treatment Summary: | 4500 GALS 10% HCL; 89113 # 20/40 SAND; 3514 BBLS SLICKWATER (SUMMARY). |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | SHALE | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BTU_GAS | 984 | | CASING_PRESS | 2081 | | MCF_GAS | 234 | | TUBING_PRESS | 1336 |
| | Perforation Data: | | Interval Top: | 8928 ft. | # Of Holes: | 147 | | Interval Bottom: | 10690 ft. | Hole Size: | 0.35 in. |
|
Formation CRCRN Formation Classification: GW Status: AB - 9/4/2010 Interval Top: 8035 ft. Interval Bottom: 8065 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 9/4/2010 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/9/2009 | | Treatment Summary: | 25 gals 7.5% HCL; 1 BBLS Slickwater |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 8035 ft. | # Of Holes: | 6 | | Interval Bottom: | 8065 ft. | Hole Size: | 0.35 in. |
|
Formation COZZ Formation Classification: GW Status: AB - 9/4/2010 Interval Top: 7726 ft. Interval Bottom: 7896 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 9/4/2010 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/14/2009 | | Treatment Summary: | 499 gals 7.5% HCL; 127,300# 30/50 Sand; 142 BBLS Slickwater |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation COZZ. |
| | Perforation Data: | | Interval Top: | 7726 ft. | # Of Holes: | 23 | | Interval Bottom: | 7896 ft. | Hole Size: | 0.35 in. |
|
Formation WFCM Formation Classification: GW Status: PR - 6/1/2024 Interval Top: 5432 ft. Interval Bottom: 7308 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/15/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/7/2010 | | Treatment Summary: | 3971 gals 7.5% HCL; 936,800# 30/50 Sand; 194,600# 100-MESH Sand; 31,633 BBLS Slickwater | | Formation Treatment | | Treatment Date: | 10/23/2008 | | Treatment Summary: | 4500 GALS 10% HCL; 89113# 20/40 SAND; 3514 BBLS SLICKWATER |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BTU_GAS | 984 | | CASING_PRESS | 2081 | | MCF_GAS | 234 | | TUBING_PRESS | 1336 |
| | Perforation Data: | | Interval Top: | 5432 ft. | # Of Holes: | 136 | | Interval Bottom: | 7308 ft. | Hole Size: | 0.35 in. |
|
Formation WFILS Formation Classification: GW Status: CM - 3/25/2013 Interval Top: 5432 ft. Interval Bottom: 8065 ft.| Completed Information for Formation WILLIAMS FORK-ILES | | 1st Production Date: | 9/22/2008 | Choke Size: | | | Formation Name: | WILLIAMS FORK-ILES | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/9/2009 | | Treatment Summary: | 4495 gals 7.5% HCL; 1,064,100# 30/50; 194,600# 100-MESH; 31,776 BBLS SLICKWATERS |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7038 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/31/2010 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 984 | | CALC_MCF_GAS | 966 | | CASING_PRESS | 1504 | | MCF_GAS | 966 | | TUBING_PRESS | 1361 |
| | Perforation Data: | | Interval Top: | 5432 ft. | # Of Holes: | 165 | | Interval Bottom: | 8065 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 28 |
| Total Gas Produced (MCF) | 17083 |
| GOR | 610107 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.147 |
| Average MCFE per Day | 47.246 |
| Federal Financial Assurance | i | Y |
|
|
