Wellbore #00 Wellbore Classification: GW Status: PR - 5/19/2006 Measured TD: 7000 ft. Vertical TD: 6564 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/19/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20062527 | Expiration Date: | 7/18/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1731 FNL 2192 FEL | | Bottom Hole Location: | Sec:4 Twp: 7S 95W | Footage: 1731 FNL 2192 FEL | | Proposed Depth/Form: | 8981 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-12 , Unit Acreage: 640, Drill Unit: SEC. |
| | |

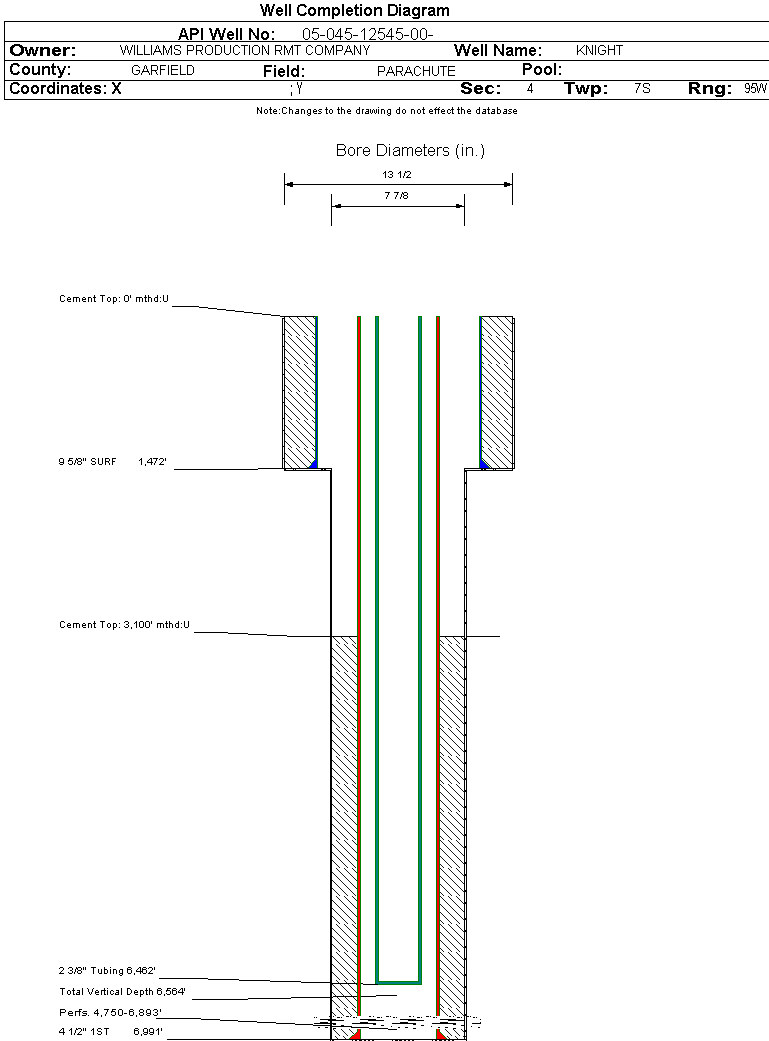

| Wellbore Completed | | Completion Date: | 9/25/2006 | | Spud Date: | 9/17/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7000 ft. | Measured PB depth: | 6960 ft. | | True Vertical TD: | 6564 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:4 Twp: 7S 95W | Footage: 1572 FNL 2442 FEL | | Bottom Hole Location: | Sec:4 Twp: 7S 95W | Footage: 1572 FNL 2442 FEL | | Log Types: | CBL; HIGH RESOLUTION INDUCTION/SPECTRAL DENSITY/DUAL SPACED NEUTRON; MUDLOG | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1472 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 280, Top: 0 ft., Bottom: 1472 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6991 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 978, Top: 3100 ft., Bottom: 6991 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1256 ft. | | N | N | | MESAVERDE | 3564 ft. | | N | N | | CAMEO | 6182 ft. | | N | N | | ROLLINS | 6961 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 4/2/2007 Interval Top: 4750 ft. Interval Bottom: 6893 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/10/2006 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/6/2006 | | Treatment Summary: | 4000 GAL 7 1/2% HCL; 978,600# 30/50 SAND; 23,198 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6462 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/2/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CASING_PRESS | 1379 | | TUBING_PRESS | 1248 |
| | Perforation Data: | | Interval Top: | 4750 ft. | # Of Holes: | 150 | | Interval Bottom: | 6893 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 25 |
| Total Gas Produced (MCF) | 16347 |
| GOR | 653880 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.794 |
| Average MCFE per Day | 45.218 |
| Federal Financial Assurance | i | |
|
|
