Wellbore #00 Wellbore Classification: GW Status: PR - 5/18/2006 Measured TD: 8133 ft. Vertical TD: 8026 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/18/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20062537 | Expiration Date: | 7/18/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1055 FNL 1692 FWL | | Bottom Hole Location: | Sec:21 Twp: 6S 94W | Footage: 1055 FNL 1692 FWL | | Proposed Depth/Form: | 8056 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: N2 |
| | |

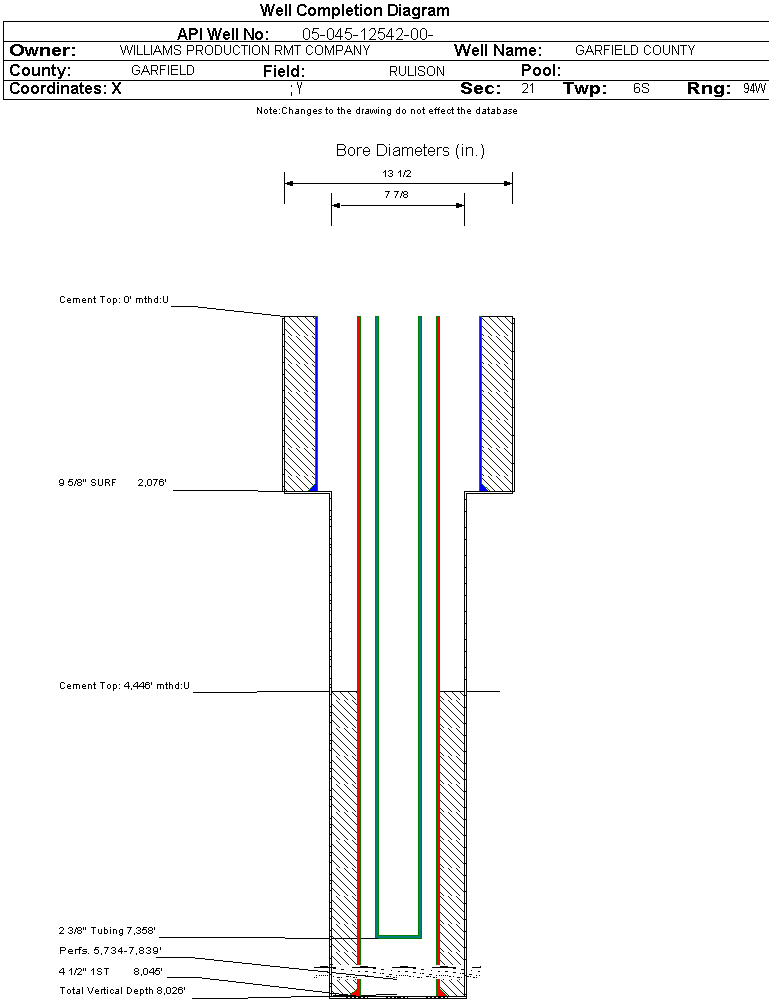

| Wellbore Completed | | Completion Date: | 11/21/2006 | | Spud Date: | 11/7/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 8133 ft. | Measured PB depth: | 8014 ft. | | True Vertical TD: | 8026 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:21 Twp: 6S 94W | Footage: 1040 FNL 1714 FWL | | Bottom Hole Location: | Sec:21 Twp: 6S 94W | Footage: 1040 FNL 1714 FWL | | Log Types: | 2-CBLS | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2076 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 550, Top: 0 ft., Bottom: 2076 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8045 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1014, Top: 4446 ft., Bottom: 8045 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1864 ft. | | N | N | | MESAVERDE | 4352 ft. | | N | N | | CAMEO | 7129 ft. | | N | N | | ROLLINS | 8031 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 2/15/2007 Interval Top: 5734 ft. Interval Bottom: 7839 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 12/24/2006 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/23/2006 | | Treatment Summary: | 3621 GALS 7 1/2% HCL; 812,100# 20/40 SAND; 20,994 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7358 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/15/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CASING_PRESS | 1348 | | MCF_GAS | 1132 | | TUBING_PRESS | 1233 |
| | Perforation Data: | | Interval Top: | 5734 ft. | # Of Holes: | 135 | | Interval Bottom: | 7839 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 46 |
| Total Gas Produced (MCF) | 22665 |
| GOR | 492717 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.829 |
| Average MCFE per Day | 62.829 |
| Federal Financial Assurance | i | Y |
|
|
