Wellbore #00 Wellbore Classification: GW Status: PR - 7/7/2007 Measured TD: 8012 ft. Vertical TD: 7974 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/7/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20062343 | Expiration Date: | 7/12/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2580 FSL 660 FEL | | Bottom Hole Location: | Sec:23 Twp: 7S 93W | Footage: 2580 FSL 660 FEL | | Proposed Depth/Form: | 9463 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55972X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

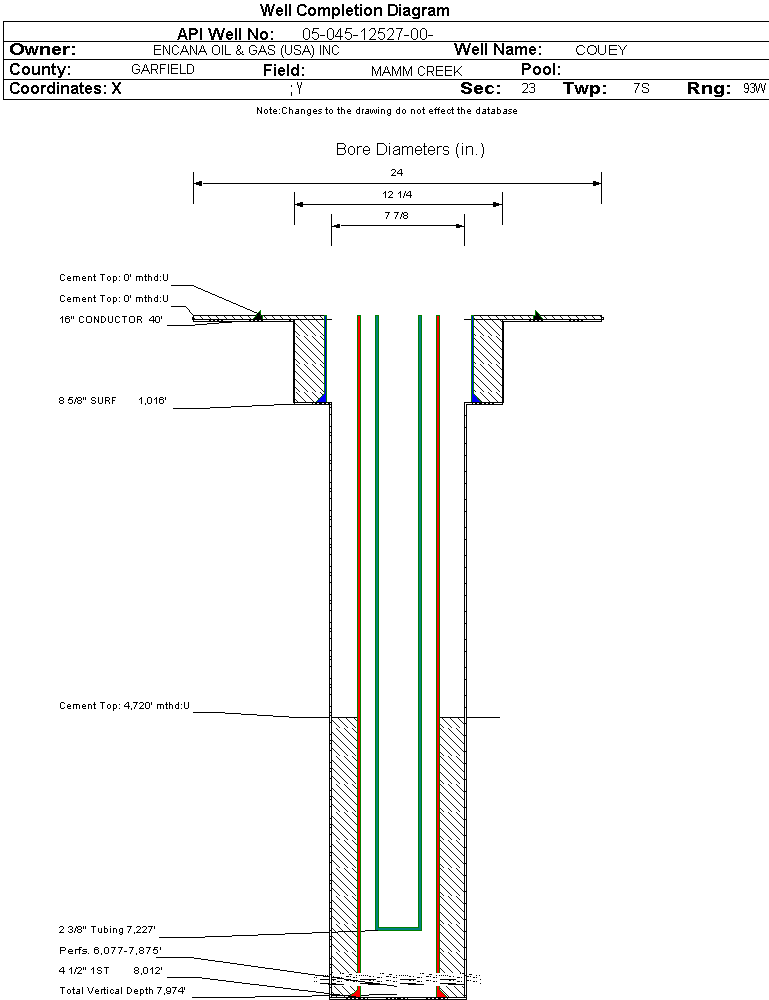

| Wellbore Completed | | Completion Date: | 4/18/2007 | | Spud Date: | 4/6/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 8012 ft. | Measured PB depth: | | | True Vertical TD: | 7974 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:23 Twp: 7S 93W | Footage: 2520 FNL 601 FEL | | Bottom Hole Location: | Sec:23 Twp: 7S 93W | Footage: 2520 FNL 601 FEL | | Log Types: | RST; CBL/TEMP | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 4, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1016 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 710, Top: 0 ft., Bottom: 1035 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8012 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 600, Top: 4720 ft., Bottom: 8012 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 5156 ft. | N | N | | WILLIAMS FORK | 5157 ft. | 8012 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 7/7/2007 Interval Top: 6077 ft. Interval Bottom: 7875 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 6/23/2007 | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/18/2007 | | Treatment Summary: | DRILLED OUT CEMENT & CBP SET AT 6000'. LANDED TUBING AT 7227' & RETURNED WELL TO PRODUCTION ON 5/15/2008. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7227 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/7/2007 | Test Method: | FLOWING | | Hours Tested: | 12 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 700 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 1400 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 2634 | | CASING_PRESS | 2400 | | MCF_GAS | 1317 | | TUBING_PRESS | 1600 |
| | Perforation Data: | | Interval Top: | 6077 ft. | # Of Holes: | 112 | | Interval Bottom: | 7875 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 16 |
| Total Gas Produced (MCF) | 13881 |
| GOR | 867562 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.604 |
| Average MCFE per Day | 38.310 |
| Federal Financial Assurance | i | Y |
|
|
