COGIS - WELL SCOUT CARD

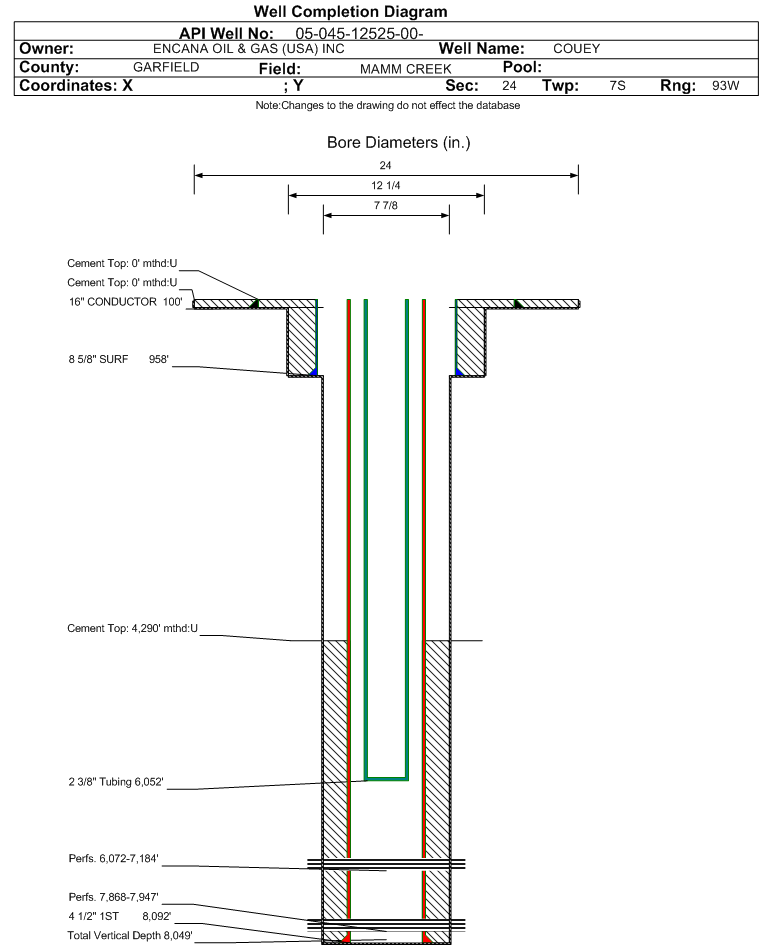

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-12525		Well Classification: GW Status: PR - 6/14/2010
Well Name/No:COUEY #24-6 (F24W)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/14/2010
FacilityID:285600LocationID:334693
County:GARFIELD #045Location:SENW 24 7S93W 6
Field:MAMM CREEK - #52500Elevation:6465 ft.
Basin:PICEANCE BASIN
Planned Location:1507FNL  1684 FWLLat/Long: 39.434290 / -107.726810Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.434340 / -107.727120Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/14/2010             Measured TD: 8092 ft.    Vertical TD: 8049 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/14/2010
Wellbore PermitDIRECTIONAL
Permit #:20062341 Expiration Date:7/12/2007
Proposed Top PZ Location:Sec: Twp: Footage: 1870 FNL  1970 FWL
Bottom Hole Location:Sec:24 Twp: 7S 93W Footage: 1870 FNL  1970 FWL
Proposed Depth/Form:9120 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:COC 55792X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:6/3/2007
Spud Date:5/24/2007Spud Date Is:ACTUAL
Measured TD:8092 ft.Measured PB depth:8109 ft.
True Vertical TD:8049 ft.True Vertical PB depth:
Top PZ Location:Sec:24 Twp: 7S 93WFootage: 1873 FNL  1960 FWL
Bottom Hole Location:Sec:24 Twp: 7S 93WFootage: 1873 FNL  1960 FWL
Log Types:OPEN HOLE, PEX, CBL/GR/TEMP
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 10, Top: 0 ft., Bottom: 100 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 958 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 675, Top: 0 ft., Bottom: 968 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8092 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 965, Top: 4290 ft., Bottom: 8092 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.4839 ft.NN
WILLIAMS FORK4840 ft.7858 ft.NN
ROLLINS7859 ft.8092 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 7/18/2007                 Interval Top: 7868 ft.    Interval Bottom: 7947 ft.

 Completed Information for Formation ROLLINS
1st Production Date:6/26/2007Choke Size:
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:6/21/2007
Treatment Summary:STAGES 01 TREATED WITH A TOTAL OF 2944 BBLS OF SLICKWATER, 96980 LBS 20/40 WHITE, 3000 LB NON API 14-30 MESH
Tubing Size:2.375 in.Tubing Setting Depth:6052 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/18/2007Test Method:PRODUCING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 11
BTU_GAS 1170
CALC_BBLS_H2O 11
CALC_MCF_GAS 114
CASING_PRESS 1050
MCF_GAS 114
TUBING_PRESS 700
Perforation Data:
Interval Top:7868 ft.# Of Holes:20
Interval Bottom:7947 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 7/18/2007                 Interval Top: 6072 ft.    Interval Bottom: 7184 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:6/26/2007Choke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:6/21/2007
Treatment Summary:STAGES 02-04 TREATED WITH A TOTAL OF 14896 BBLS OF SLICKWATER, 312103 LBS 20/40 WHITE, 7500 LBS NON API 14/30 MESH.
Tubing Size:2.375 in.Tubing Setting Depth:6052 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/18/2007Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 44
BTU_GAS 1170
CALC_BBLS_H2O 44
CALC_MCF_GAS 457
CASING_PRESS 1050
MCF_GAS 457
TUBING_PRESS 700
Perforation Data:
Interval Top:6072 ft.# Of Holes:62
Interval Bottom:7184 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)9
Total Gas Produced (MCF)8448
GOR938666
GOR DeterminationMCFE
Average BOE per Day4.016
Average MCFE per Day23.304

 Federal Financial Assurance  i Y

 Tribal Well  i No
