Wellbore #00 Wellbore Classification: GW Status: PR - 7/15/2007 Measured TD: 7892 ft. Vertical TD: 7861 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/15/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20062339 | Expiration Date: | 7/12/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1250 FNL 1970 FWL | | Bottom Hole Location: | Sec:24 Twp: 7S 93W | Footage: 1250 FNL 1970 FWL | | Proposed Depth/Form: | 7893 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55792X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

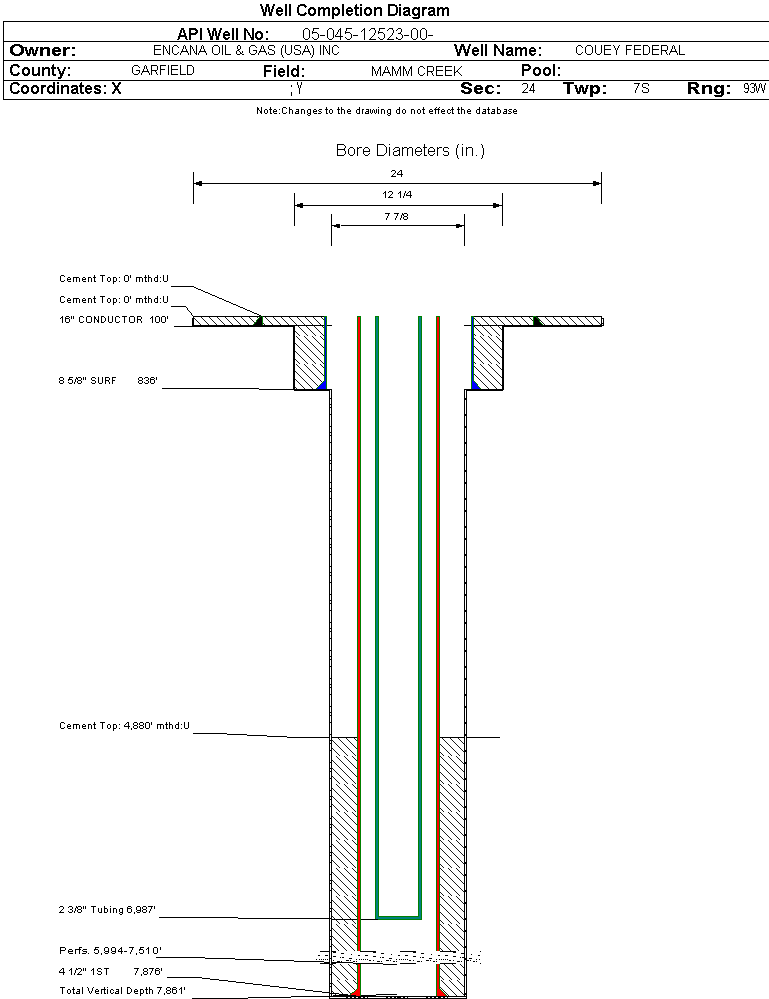

| Wellbore Completed | | Completion Date: | 5/21/2007 | | Spud Date: | 5/12/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7892 ft. | Measured PB depth: | 7842 ft. | | True Vertical TD: | 7861 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:24 Twp: 7S 93W | Footage: 1238 FNL 1959 FWL | | Bottom Hole Location: | Sec:24 Twp: 7S 93W | Footage: 1238 FNL 1959 FWL | | Log Types: | RST/GR, CBL/GR/TEMP | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 100 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 836 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 560, Top: 0 ft., Bottom: 836 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7876 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 785, Top: 4880 ft., Bottom: 7881 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 4779 ft. | N | N | | WILLIAMS FORK | 4780 ft. | 7800 ft. | N | N | | ROLLINS | 7801 ft. | 7892 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 7/15/2007 Interval Top: 5994 ft. Interval Bottom: 7510 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 6/29/2007 | Choke Size: | 0.281 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/21/2007 | | Treatment Summary: | STAGES 01-06 TREATED WITH A TOTAL OF 36,511 BBLS OF SLICKWATER, 823,292 LBS 20-40 WHITE SAND, AND 15,300 LBS NON API 14/30 MESH SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6987 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/15/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 600 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 600 | | CALC_MCF_GAS | 1266 | | CASING_PRESS | 2150 | | MCF_GAS | 1266 | | TUBING_PRESS | 1500 |
| | Perforation Data: | | Interval Top: | 5994 ft. | # Of Holes: | 124 | | Interval Bottom: | 7510 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 33 |
| Total Gas Produced (MCF) | 27979 |
| GOR | 847848 |
| GOR Determination | MCFE |
| Average BOE per Day | 13.303 |
| Average MCFE per Day | 77.195 |
| Federal Financial Assurance | i | Y |
|
|
