Wellbore #00 Wellbore Classification: GW Status: PR - 1/6/2007 Measured TD: 6007 ft. Vertical TD: 5997 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/6/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20062608 | Expiration Date: | 7/11/2007 | | Proposed Top PZ Location: | Sec:1 Twp: 7S 92W | Footage: 1231 FSL 603 FWL | | Bottom Hole Location: | Sec:1 Twp: 7S 92W | Footage: 1231 FSL 603 FWL | | Proposed Depth/Form: | 6567 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA | Unit Number: | COC 55972X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

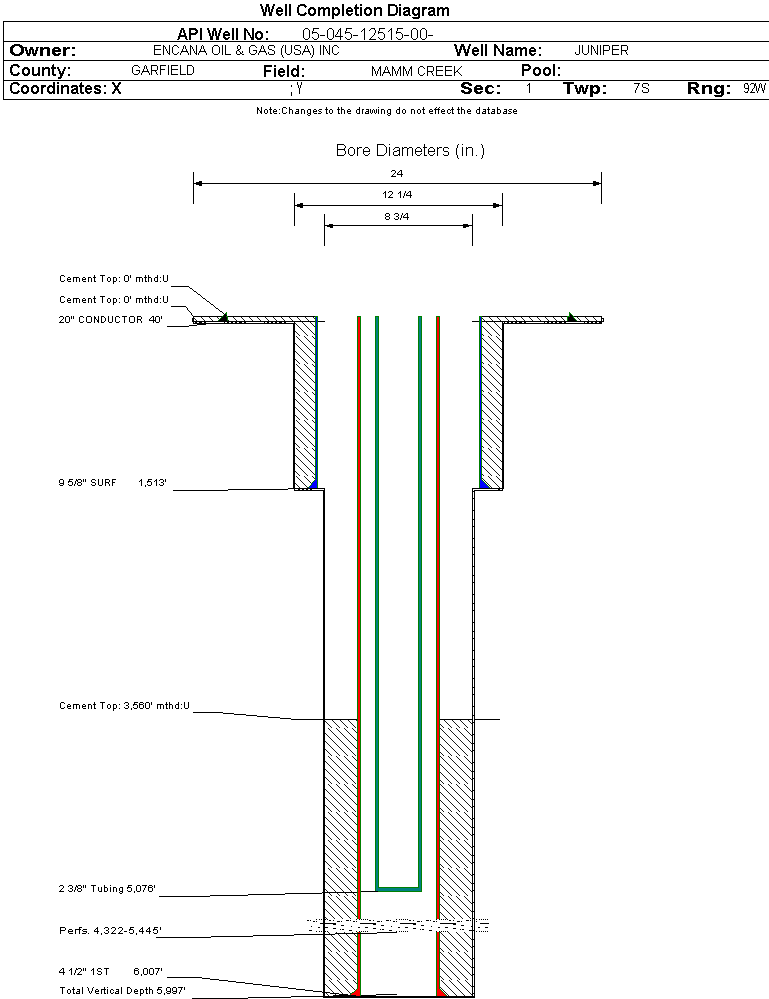

| Wellbore Completed | | Completion Date: | 9/11/2006 | | Spud Date: | 8/12/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 6007 ft. | Measured PB depth: | 5753 ft. | | True Vertical TD: | 5997 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:1 Twp: 7S 92W | Footage: 1231 FSL 603 FWL | | Bottom Hole Location: | Sec:1 Twp: 7S 92W | Footage: 1231 FSL 603 FWL | | Log Types: | CBL/VDL/TEMP/PRESS/GR/CCL; CBL/GR; ULTRA SONIC IMAGE/GR; 2-PEX-AI/GR/SP | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 20 in., Top: 0 ft., Depth: 40 ft., Weight: 52.7 , Citings Type: ACTUAL | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1513 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 735, Top: 0 ft., Bottom: 1513 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6007 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1050, Top: 3560 ft., Bottom: 6007 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3205 ft. | N | N | | WILLIAMS FORK | 3206 ft. | 6007 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 1/6/2007 Interval Top: 4322 ft. Interval Bottom: 5445 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 12/19/2006 | Choke Size: | 0.180 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/12/2006 | | Treatment Summary: | STAGES 1 THROUGH 5 WERE TREATED WITH A TOTAL OF 43,193 BBLS OF SLICKWATER AND 931,274 LBS 20-40 SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5076 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/6/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1000 | | BBLS_OIL | 8 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 1000 | | CALC_BBLS_OIL | 8 | | CALC_GOR | 124375 | | CALC_MCF_GAS | 995 | | CASING_PRESS | 2100 | | MCF_GAS | 995 | | TUBING_PRESS | 1100 |
| | Perforation Data: | | Interval Top: | 4322 ft. | # Of Holes: | 88 | | Interval Bottom: | 5445 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 275 |
| Total Gas Produced (MCF) | 29531 |
| GOR | 107385 |
| GOR Determination | MCFE |
| Average BOE per Day | 14.718 |
| Average MCFE per Day | 85.362 |
| Federal Financial Assurance | i | |
|
|
