COGIS - WELL SCOUT CARD

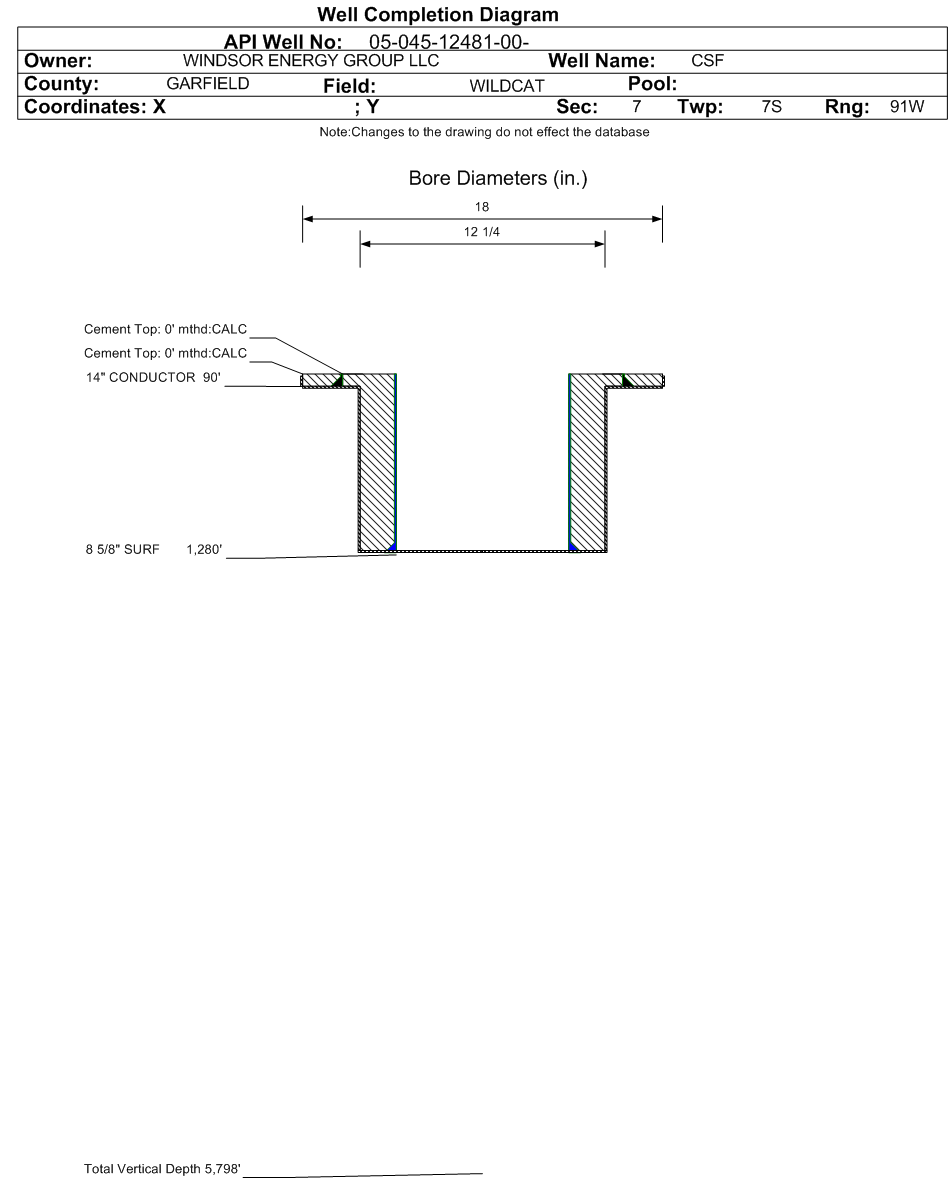

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-12481		Well Classification: DA Status: PA - 8/12/2006
Well Name/No:CSF #21-18-7-91
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:WINDSOR ENERGY GROUP LLC - 10081
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 66579
Facility Status:PAStatus Date8/12/2006
FacilityID:285458LocationID:335053
County:GARFIELD #045Location:SESW 7 7S91W 6
Field:WILDCAT - #99999Elevation:6954 ft.
Basin:PICEANCE BASIN
Planned Location:625FSL  2319 FWLLat/Long: 39.456221 / -107.597597Lat/Long Source: Calculated From Footages
As Drilled Location:625 FSL  2319 FWLLat/Long: 39.456190 / -107.597630Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 8/12/2006             Measured TD: 6136 ft.    Vertical TD: 5798 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 8/12/2006
Wellbore PermitDIRECTIONAL
Permit #:20062184 Expiration Date:6/29/2007
Proposed Top PZ Location:Sec: Twp: Footage: 536 FNL  2198 FWL
Bottom Hole Location:Sec:18 Twp: 7S 91W Footage: 642 FNL  2184 FWL
Proposed Depth/Form:6812 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 143-5 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 143-5 , Unit Acreage: , Drill Unit:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 9812 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 834, Top: 200 ft., Bottom: 6812 ft.
Wellbore Completed
Completion Date:8/12/2006
Spud Date:7/15/2006Spud Date Is:ACTUAL
Measured TD:6136 ft.Measured PB depth:0 ft.
True Vertical TD:5798 ft.True Vertical PB depth:0 ft.
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:NO LOGS RUN
Casing:String Type: CONDUCTOR, Hole Size: 18 in., Size: 14 in., Top: 0 ft., Depth: 90 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 90 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1280 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 455, Top: 0 ft., Bottom: 1280 ft., Determination Method: CALC
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/12/2006
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
