Wellbore #00 Wellbore Classification: GW Status: PR - 4/26/2006 Measured TD: 7802 ft. Vertical TD: 7774 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/26/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20062101 | Expiration Date: | 6/27/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2527 FSL 722 FWL | | Bottom Hole Location: | Sec:28 Twp: 6S 95W | Footage: 2527 FSL 722 FWL | | Proposed Depth/Form: | 7793 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: W/2 |
| | |

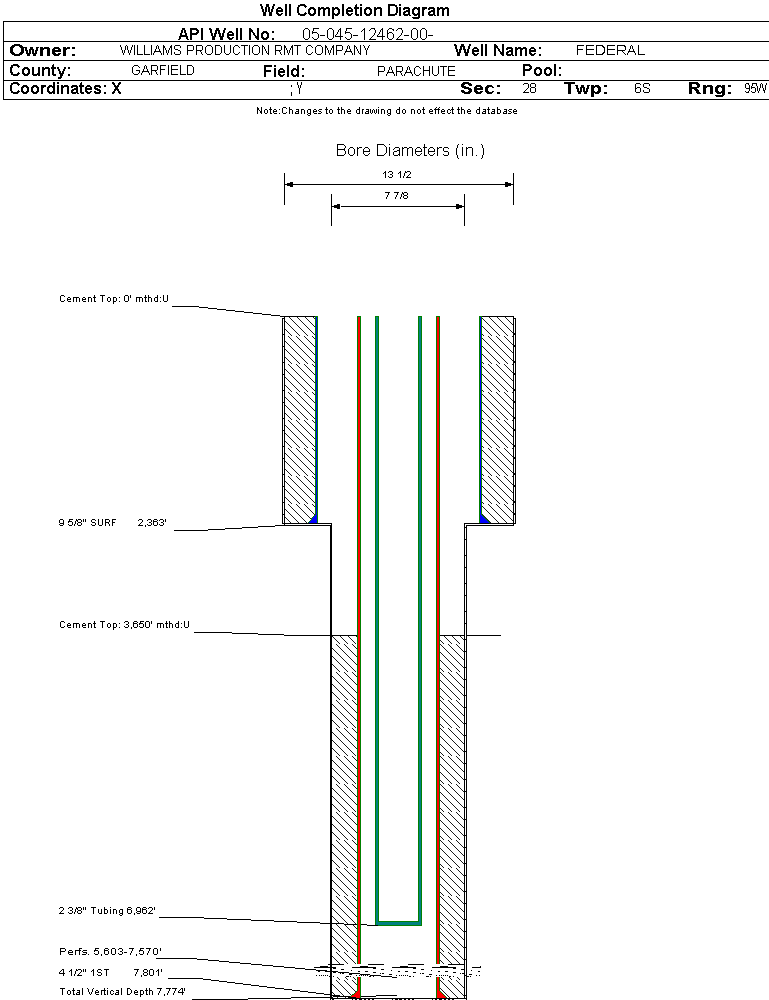

| Wellbore Completed | | Completion Date: | 9/28/2006 | | Spud Date: | 9/16/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7802 ft. | Measured PB depth: | 7777 ft. | | True Vertical TD: | 7774 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:28 Twp: 6S 95W | Footage: 2535 FSL 723 FWL | | Bottom Hole Location: | Sec:28 Twp: 6S 95W | Footage: 2535 FSL 723 FWL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2363 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 650, Top: 0 ft., Bottom: 2363 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7801 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 910, Top: 3650 ft., Bottom: 7801 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2099 ft. | | N | N | | MESAVERDE | 4283 ft. | | N | N | | CAMEO | 6941 ft. | | N | N | | ROLLINS | 7643 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 12/8/2006 Interval Top: 5603 ft. Interval Bottom: 7570 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/14/2006 | Choke Size: | 0.266 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/7/2006 | | Treatment Summary: | 3942 GALS 7 1/2% HCL; 859,400# 30/50 SAND; 19,687 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6962 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/8/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CASING_PRESS | 1131 | | MCF_GAS | 966 | | TUBING_PRESS | 853 |
| | Perforation Data: | | Interval Top: | 5603 ft. | # Of Holes: | 137 | | Interval Bottom: | 7570 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 21 |
| Total Gas Produced (MCF) | 11349 |
| GOR | 540428 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.414 |
| Average MCFE per Day | 31.441 |
| Federal Financial Assurance | i | Y |
|
|
