Wellbore #00 Wellbore Classification: GW Status: PR - 4/25/2006 Measured TD: 8830 ft. Vertical TD: 8576 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/25/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20062044 | Expiration Date: | 6/22/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 259 FNL 1847 FWL | | Bottom Hole Location: | Sec:23 Twp: 6S 96W | Footage: 259 FNL 1847 FWL | | Proposed Depth/Form: | 8818 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-12 , Unit Acreage: 320, Drill Unit: N2 |
| | |

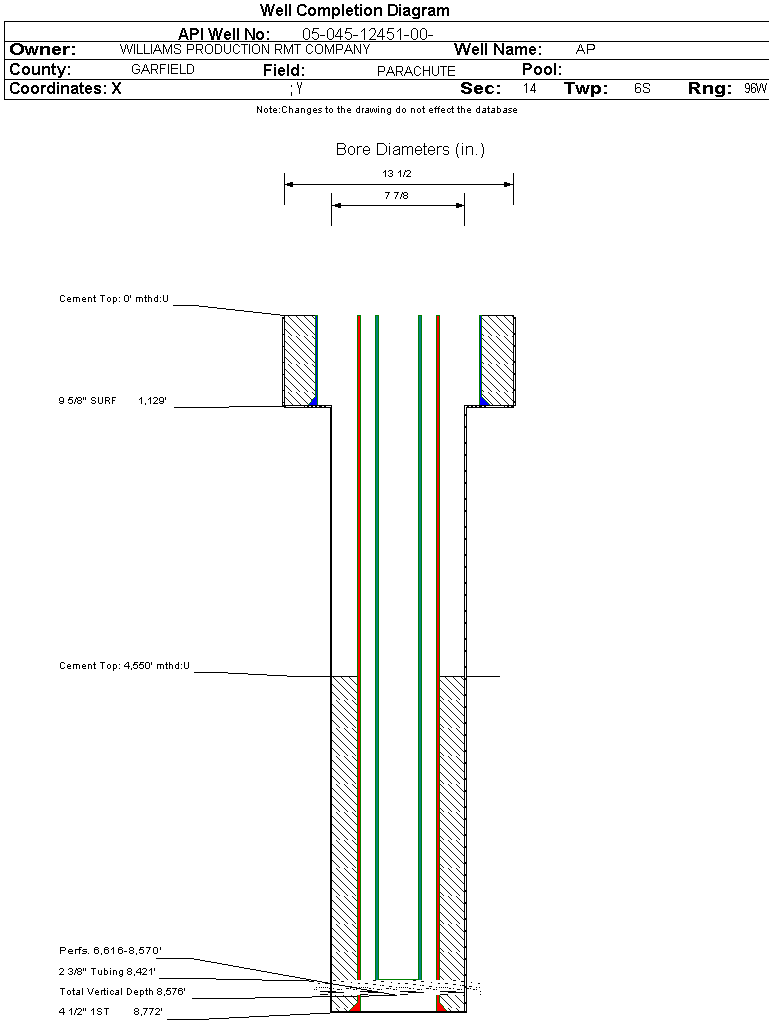

| Wellbore Completed | | Completion Date: | 11/18/2006 | | Spud Date: | 11/5/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 8830 ft. | Measured PB depth: | 8760 ft. | | True Vertical TD: | 8576 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:23 Twp: 6S 96W | Footage: 248 FNL 1835 FWL | | Bottom Hole Location: | Sec:23 Twp: 6S 96W | Footage: 248 FNL 1835 FWL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE; MUDLOG | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1129 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 355, Top: 0 ft., Bottom: 1128 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8772 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 902, Top: 4550 ft., Bottom: 8771 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 3237 ft. | | N | N | | FORT HAYS | 3709 ft. | | N | N | | MESAVERDE | 5326 ft. | | N | N | | CAMEO | 8200 ft. | | N | N | | ROLLINS | 8652 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 3/1/2007 Interval Top: 6616 ft. Interval Bottom: 8570 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 12/25/2006 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/22/2006 | | Treatment Summary: | 6750 GALS 10% HCL; 793600# 20/40 SAND; 17344 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8421 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/1/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CASING_PRESS | 1493 | | MCF_GAS | 1493 | | TUBING_PRESS | 1360 |
| | Perforation Data: | | Interval Top: | 6616 ft. | # Of Holes: | 167 | | Interval Bottom: | 8570 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 26 |
| Total Gas Produced (MCF) | 11715 |
| GOR | 450576 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.602 |
| Average MCFE per Day | 32.511 |
| Federal Financial Assurance | i | |
|
|
