Wellbore #00 Wellbore Classification: GW Status: PR - 4/25/2006 Measured TD: 8590 ft. Vertical TD: 8575 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/25/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20062041 | Expiration Date: | 6/22/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 550 FSL 1688 FEL | | Bottom Hole Location: | Sec:14 Twp: 6S 96W | Footage: 550 FSL 1688 FEL | | Proposed Depth/Form: | 8652 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-12 , Unit Acreage: , Drill Unit: |
| | |

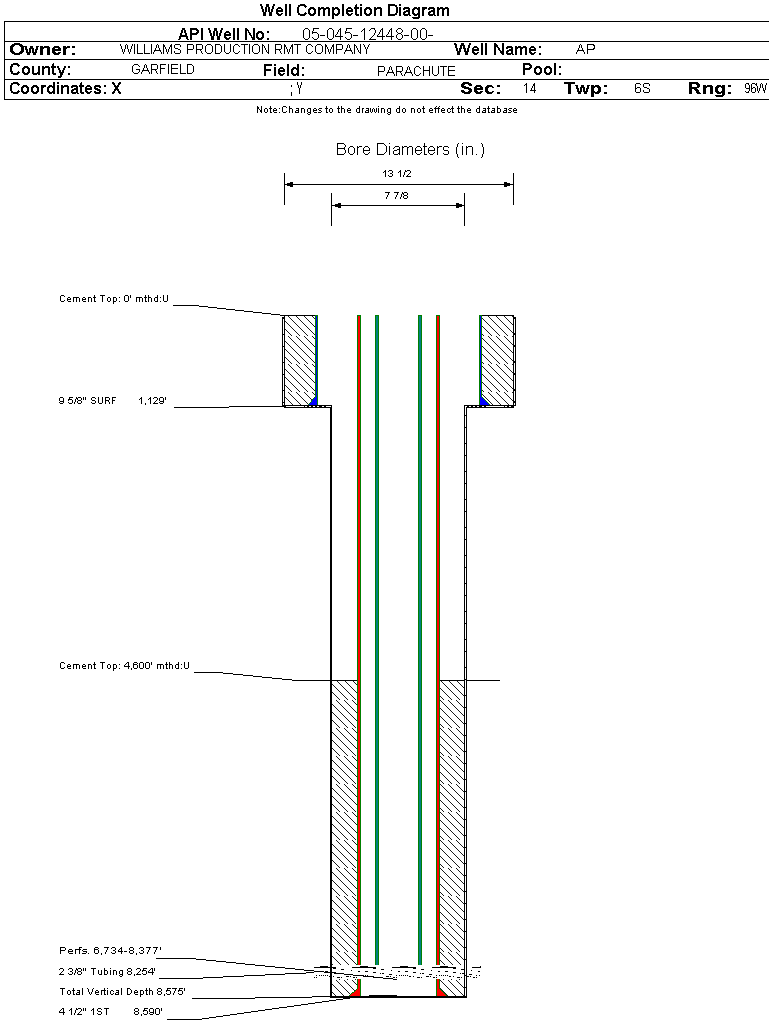

| Wellbore Completed | | Completion Date: | 10/18/2006 | | Spud Date: | 10/7/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 8590 ft. | Measured PB depth: | 8489 ft. | | True Vertical TD: | 8575 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:14 Twp: 6S 96W | Footage: 569 FSL 1672 FEL | | Bottom Hole Location: | Sec:14 Twp: 6S 96W | Footage: 569 FSL 1672 FEL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE; MUDLOG | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1129 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 325, Top: 0 ft., Bottom: 1129 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8590 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 860, Top: 4600 ft., Bottom: 8590 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 3204 ft. | | N | N | | FORT UNION | 3622 ft. | | N | N | | MESAVERDE | 5159 ft. | | N | N | | CAMEO | 8021 ft. | | N | N | | ROLLINS | 8476 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 3/8/2007 Interval Top: 6734 ft. Interval Bottom: 8377 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 12/23/2006 | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/22/2006 | | Treatment Summary: | 7250 GALS 10% HCL; 665,193# 20/40 SAND; 18,534 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8254 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/8/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CASING_PRESS | 1066 | | MCF_GAS | 945 | | TUBING_PRESS | 962 |
| | Perforation Data: | | Interval Top: | 6734 ft. | # Of Holes: | 146 | | Interval Bottom: | 8377 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 12 |
| Total Gas Produced (MCF) | 9274 |
| GOR | 772833 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.408 |
| Average MCFE per Day | 25.604 |
| Federal Financial Assurance | i | |
|
|
