COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-12417		Well Classification: GW Status: PR - 8/1/2012
Well Name/No:NORTH BANK #B7 PA
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/1/2012
FacilityID:285221LocationID:311621
County:GARFIELD #045Location:NENE 12 6S93W 6
Field:MAMM CREEK - #52500Elevation:5413 ft.
Basin:PICEANCE BASIN
Planned Location:1295FNL  529 FELLat/Long: 39.544646 / -107.717073Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.544647 / -107.717073Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/1/2012             Measured TD: 8373 ft.    Vertical TD: 8221 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/1/2012
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:5/14/2013
Proposed Top PZ Location:Sec:7 Twp: 6S 92W Footage: 1168 FNL  220 FWL
Bottom Hole Location:Sec:7 Twp: 6S 92W Footage: 1168 FNL  220 FWL
Proposed Depth/Form:9052 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-25 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WFILS , Formation: WILLIAMS FORK-ILES , Order: 191-58 , Unit Acreage: 37, Drill Unit: SEE ORDER
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-16 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 55# , Citings Type: PLANNED
Cement:Sacks: 177, Top: 0 ft., Bottom: 60 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 24/32# , Citings Type: PLANNED
Cement:Sacks: 416, Top: 0 ft., Bottom: 1000 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9052 ft., Weight: 11.6# , Citings Type: PLANNED
Cement:Sacks: 356, Top: , Bottom: 9052 ft.
Casing:String Type: 3RD, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 9052 ft., Weight: 17# , Citings Type: PLANNED
Cement:Sacks: 804, Top: 4652 ft., Bottom: 9052 ft.

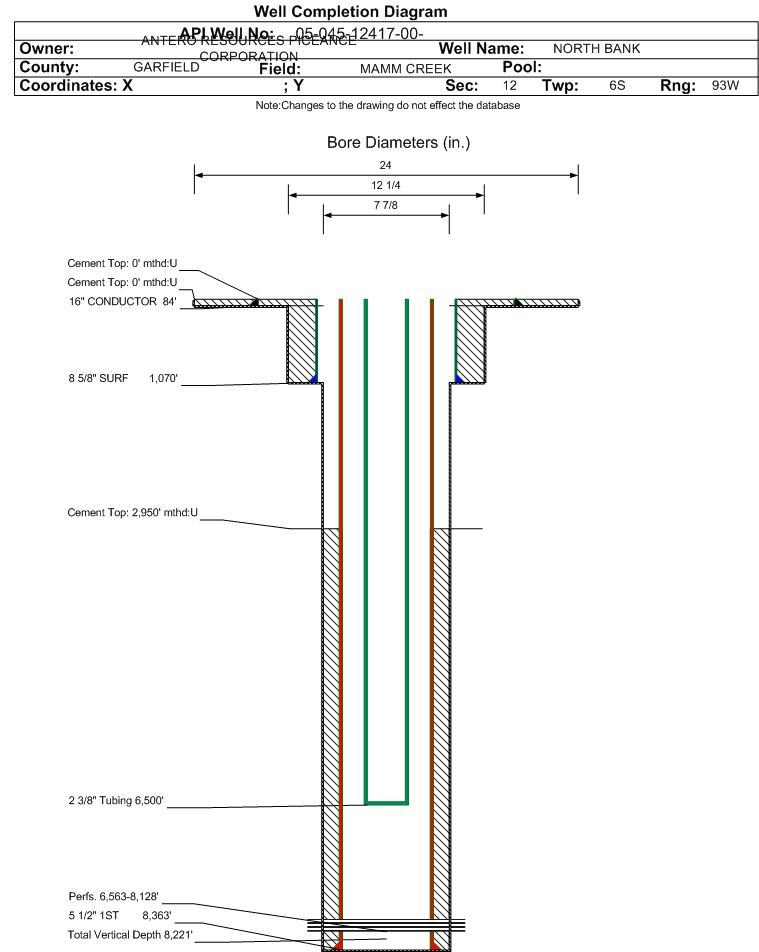

Wellbore Completed
Completion Date:9/21/2011
Spud Date:8/31/2011Spud Date Is:ACTUAL
Measured TD:8373 ft.Measured PB depth:8323 ft.
True Vertical TD:8221 ft.True Vertical PB depth:8171 ft.
Top PZ Location:Sec:12 Twp: 6S 93WFootage: 213 FNL  750 FEL
Bottom Hole Location:Sec:12 Twp: 6S 93WFootage: 216 FNL  744 FEL
Log Types:CBL/ Temp Combo, Mud log, and Triple Combo
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 84 ft., Weight: 55# , Citings Type: ACTUAL
Cement:Sacks: 177, Top: 0 ft., Bottom: 84 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1070 ft., Weight: 32# , Citings Type: ACTUAL
Cement:Sacks: 355, Top: 0 ft., Bottom: 1081 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8363 ft., Weight: 17# , Citings Type: ACTUAL
Cement:Sacks: 837, Top: 2950 ft., Bottom: 8373 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK4479 ft.
ROLLINS8169 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/1/2012                 Interval Top: 6563 ft.    Interval Bottom: 8128 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:10/25/2011Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/17/2011
Treatment Summary:WFCM - Frac'd with 91,655 bbls 2% KCL Slickwater, 1,267,200 lbs 30/50 sand, 413,100 lbs 20/40 sand and 193,300 lbs 20/40 SLC sand
Tubing Size:2.375 in.Tubing Setting Depth:6500 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/3/2011Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 405
BTU_GAS 1104
CALC_BBLS_H2O 405
CALC_MCF_GAS 605
CASING_PRESS 1050
MCF_GAS 605
TUBING_PRESS 425
Perforation Data:
Interval Top:6563 ft.# Of Holes:238
Interval Bottom:8128 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)82
Total Gas Produced (MCF)21235
GOR258963
GOR DeterminationMCFE
Average BOE per Day10.252
Average MCFE per Day59.496

 Federal Financial Assurance  i

 Tribal Well  i No
