Wellbore #00 Wellbore Classification: GW Status: PR - 12/1/2025 Measured TD: 10500 ft. Vertical TD: 10357 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20073154 | Expiration Date: | 7/29/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2003 FNL 185 FWL | | Bottom Hole Location: | Sec:7 Twp: 6S 92W | Footage: 1640 FNL 650 FWL | | Proposed Depth/Form: | 10455 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 191-25 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: MNCS , Formation: MANCOS , Order: 191-60 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-16 , Unit Acreage: , Drill Unit: |
| | |

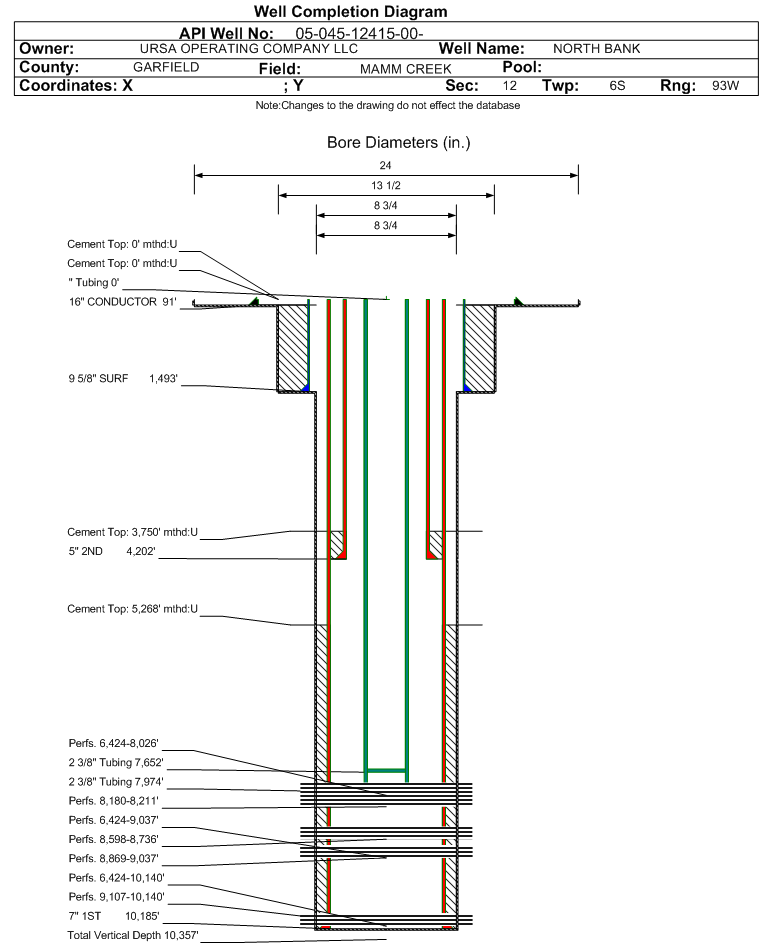

| Wellbore Completed | | Completion Date: | 2/7/2008 | | Spud Date: | 1/17/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 10500 ft. | Measured PB depth: | 10230 ft. | | True Vertical TD: | 10357 ft. | True Vertical PB depth: | 10088 ft. | | Top PZ Location: | Sec:7 Twp: 6S 92W | Footage: 1638 FNL 647 FWL | | Bottom Hole Location: | Sec:7 Twp: 6S 92W | Footage: 1646 FNL 668 FWL | | Log Types: | NEUTRON DENSITY, INDUCTION & CBL | | Log Types: | CBL (dated 9/9/2011 after casing repair) | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 91 ft., Weight: 65# , Citings Type: ACTUAL | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 91 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1493 ft., Weight: 36# , Citings Type: ACTUAL | | Cement: | Sacks: 726, Top: 0 ft., Bottom: 1503 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 10185 ft., Weight: 29# , Citings Type: ACTUAL | | Cement: | Sacks: 538, Top: 5268 ft., Bottom: 10185 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 8.75 in., Size: 5 in., Top: 0 ft., Depth: 4202 ft., Weight: 18# , Citings Type: ACTUAL | | Cement: | Sacks: 260, Top: 3750 ft., Bottom: 4202 ft., Determination Method: CALC | | Additional Cement: | String Type: 1ST , Top: 4100 ft., Depth: 6320 ft., Bottom: 6320 ft., Sacks: 255, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 4401 ft. | | | | | CAMEO | 7079 ft. | | | | | ROLLINS | 8044 ft. | | | | | COZZETTE | 8695 ft. | | | | | CORCORAN | 8862 ft. | | | | | MANCOS | 9061 ft. | | | |
Formation MNCS Formation Classification: GW Status: SI - 11/1/2025 Interval Top: 9107 ft. Interval Bottom: 10140 ft.| Completed Information for Formation MANCOS | | 1st Production Date: | 3/10/2008 | Choke Size: | | | Formation Name: | MANCOS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Date: | 3/3/2008 | | Treatment Summary: | MNCS-FRAC 9107 - 10,500 WITH 67,415 BBLS OF 2% KCL, & 859,000 LBS 30/50 SAND & 710,700 LBS 30/60 SINTERLITE. PLUG @ 9070' WHICH HAD T & A' THIS FORMATION ON 9/13/08 WAS DRILLED OUT ON 10/25/09, SO FORMATION IS NOW PRODUCING. OPEN HOLE INTERVAL (10,185'. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | SHALE | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 650 | | BBLS_OIL | 0 | | BTU_GAS | 1026 | | CALC_BBLS_H2O | 650 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1407 | | CASING_PRESS | 2000 | | MCF_GAS | 1407 | | TUBING_PRESS | 0 |
| | Perforation Data: | | Interval Top: | 9107 ft. | # Of Holes: | 240 | | Interval Bottom: | 10140 ft. | Hole Size: | 0.42 in. |
|
Formation CRCRN Formation Classification: GW Status: SI - 11/1/2025 Interval Top: 8869 ft. Interval Bottom: 9037 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 9/26/2008 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/15/2008 | | Treatment Summary: | CORCRN - FRAC WITH 10,706 BBLS OF KCL, & 248,000 LBS 30/50 SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 8869 ft. | # Of Holes: | 39 | | Interval Bottom: | 9037 ft. | Hole Size: | 0.42 in. |
|
Formation COZZ Formation Classification: GW Status: SI - 11/1/2025 Interval Top: 8598 ft. Interval Bottom: 8736 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 9/26/2008 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/15/2008 | | Treatment Summary: | COZZ - FRAC WITH 7,925 BBLS OF 2% KCL, & 859,000 LBS 30/50 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation COZZ. |
| | Perforation Data: | | Interval Top: | 8598 ft. | # Of Holes: | 36 | | Interval Bottom: | 8736 ft. | Hole Size: | 0.42 in. |
|
Formation RLNS Formation Classification: GW Status: SI - 11/1/2025 Interval Top: 8180 ft. Interval Bottom: 8211 ft.| Completed Information for Formation ROLLINS | | 1st Production Date: | 9/26/2008 | Choke Size: | | | Formation Name: | ROLLINS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/15/2008 | | Treatment Summary: | WFCM & ROLLINS - FRAC WITH 41,377 BBLS OF 2% KCL, & 1,107,000 LBS 30/50 SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation RLNS. |
| | Perforation Data: | | Interval Top: | 8180 ft. | # Of Holes: | 12 | | Interval Bottom: | 8211 ft. | Hole Size: | 0.42 in. |
|
Formation WFCM Formation Classification: GW Status: PR - 3/1/2015 Interval Top: 6424 ft. Interval Bottom: 8026 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/26/2008 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/18/2008 | | Treatment Summary: | WFCM & ROLLINS - FRAC WITH 41,377 BBLS OF 2% KCL, & 1,107,000 LBS 30/50 SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WFCM. |
| | Perforation Data: | | Interval Top: | 6424 ft. | # Of Holes: | 177 | | Interval Bottom: | 8026 ft. | Hole Size: | 0.42 in. |
|
Formation WFILM Formation Classification: GW Status: CM - 11/30/2009 Interval Top: 6424 ft. Interval Bottom: 10140 ft.| Completed Information for Formation WILLIAMS FORK- ILES - MANCOS | | 1st Production Date: | 3/10/2008 | Choke Size: | 0.469 in. | | Formation Name: | WILLIAMS FORK- ILES - MANCOS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/18/2008 | | Treatment Summary: | *REVISION |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7652 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/30/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 173 | | BBLS_OIL | 0 | | BTU_GAS | 1026 | | CALC_BBLS_H2O | 173 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 444 | | CASING_PRESS | 651 | | MCF_GAS | 444 | | TUBING_PRESS | 857 |
| | Perforation Data: | | Interval Top: | 6424 ft. | # Of Holes: | 504 | | Interval Bottom: | 10140 ft. | Hole Size: | 0.42 in. |
|
Formation WFILS Formation Classification: GW Status: CM - 10/6/2008 Interval Top: 6424 ft. Interval Bottom: 9037 ft.| Completed Information for Formation WILLIAMS FORK-ILES | | 1st Production Date: | 9/26/2008 | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK-ILES | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/14/2008 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7974 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/6/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 665 | | BBLS_OIL | 0 | | BTU_GAS | 1012 | | CALC_BBLS_H2O | 665 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1340 | | CASING_PRESS | 2850 | | MCF_GAS | 1340 | | TUBING_PRESS | 1800 |
| | Perforation Data: | | Interval Top: | 6424 ft. | # Of Holes: | 264 | | Interval Bottom: | 9037 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 161 |
| Total Gas Produced (MCF) | 41210 |
| GOR | 255962 |
| GOR Determination | MCFE |
| Average BOE per Day | 19.918 |
| Average MCFE per Day | 115.506 |
| Federal Financial Assurance | i | |
|
|
