COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-12390		Well Classification: GW Status: PR - 5/3/2011
Well Name/No:NORTH BANK #A7
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/3/2011
FacilityID:285161LocationID:336016
County:GARFIELD #045Location:SENW 12 6S93W 6
Field:MAMM CREEK - #52500Elevation:5393 ft.
Basin:PICEANCE BASIN
Planned Location:1805FNL  2553 FWLLat/Long: 39.543212 / -107.724870Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.543212 / -107.724874Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/3/2011             Measured TD: 9097 ft.    Vertical TD: 8985 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/3/2011
Wellbore PermitDIRECTIONAL
Permit #:20061646 Expiration Date:6/14/2007
Proposed Top PZ Location:Sec: Twp: Footage: 1646 FNL  1730 FEL
Bottom Hole Location:Sec:12 Twp: 6S 93W Footage: 1646 FNL  1730 FEL
Proposed Depth/Form:9101 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-25 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-16 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/17/2006
Spud Date:6/14/2006Spud Date Is:ACTUAL
Measured TD:9097 ft.Measured PB depth:9040 ft.
True Vertical TD:8985 ft.True Vertical PB depth:8928 ft.
Top PZ Location:Sec:12 Twp: 6S 93WFootage: 1830 FNL  1608 FEL
Bottom Hole Location:Sec:12 Twp: 6S 93WFootage: 1830 FNL  1608 FEL
Log Types:CBL/GR/CCL/TEMP, SP, RESISTIVITY, NEUTRON POROSITY, PE, BULK DENSITY, DENSITY POROSITY

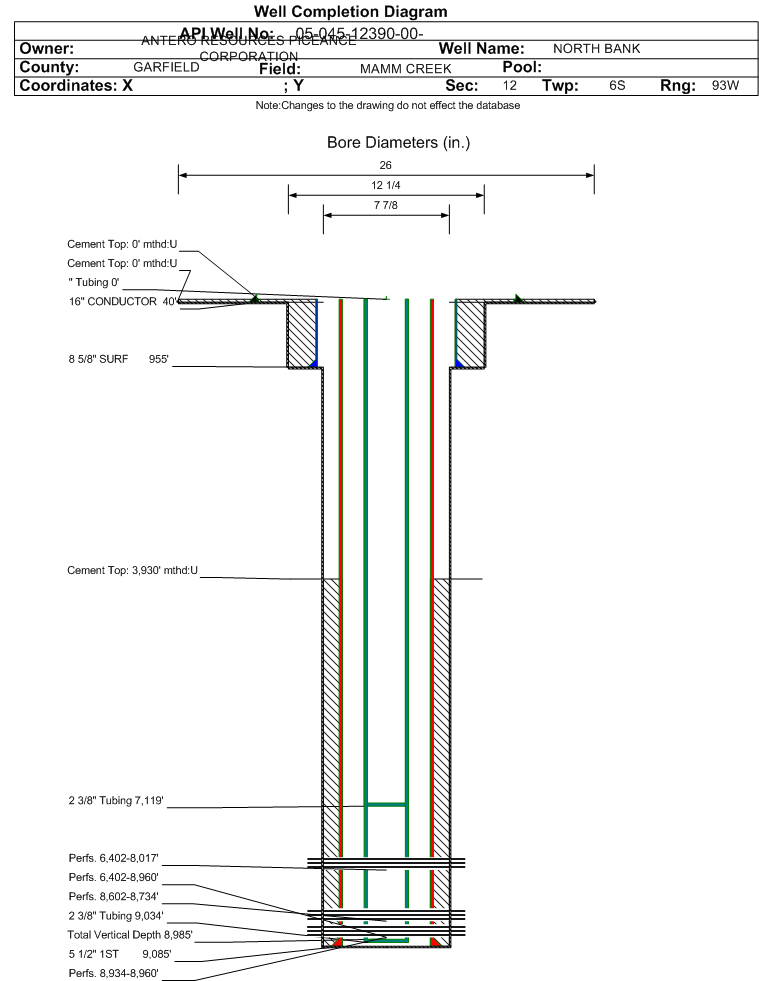

Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 4, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 955 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 330, Top: 0 ft., Bottom: 955 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 9085 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 755, Top: 3930 ft., Bottom: 9085 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK4234 ft.NN
CAMEO7030 ft.NN
ROLLINS8038 ft.NN
COZZETTE8586 ft.NN
CORCORAN8860 ft.NN

Formation CRCRN                   Formation Classification:  OW                   Status:  PR - 10/1/2012                 Interval Top: 8934 ft.    Interval Bottom: 8960 ft.

 Completed Information for Formation CORCORAN
1st Production Date:9/28/2006Choke Size:
Formation Name:CORCORANCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/1/2010
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CRCRN.
Perforation Data:
Interval Top:8934 ft.# Of Holes:60
Interval Bottom:8960 ft.Hole Size:0.42 in.

Formation COZZ                     Formation Classification:  OW                     Status:  PR - 12/1/2012                 Interval Top: 8602 ft.    Interval Bottom: 8734 ft.

 Completed Information for Formation COZZETTE
1st Production Date:9/28/2006Choke Size:0.469 in.
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/1/2010
Treatment Summary:A PORTION OF THE COZZETTE WAS T&A'D FROM 8680-'8734'.
Tubing Size:2.375 in.Tubing Setting Depth:7119 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/3/2011Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 0
BTU_GAS 1008
CALC_BBLS_H2O 5
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 119
CASING_PRESS 724
GRAVITY_OIL 0
MCF_GAS 119
TUBING_PRESS 580
Perforation Data:
Interval Top:8602 ft.# Of Holes:208
Interval Bottom:8734 ft.Hole Size:0.42 in.

Formation CZCRW                   Formation Classification:  GW                   Status:  CM - 10/8/2006                 Interval Top: 6402 ft.    Interval Bottom: 8960 ft.

 Completed Information for Formation COZZETTE-CORORAN-WMFK
1st Production Date:9/28/2006Choke Size:0.313 in.
Formation Name:COZZETTE-CORORAN-WMFKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/22/2006
Treatment Summary:TOTAL:STAGES 1-3, WFCM,COZZ,CRCRN: FRAC W/47,572 GAL 2% KCL, 1,898,400 LBS 30/70 SAND AND 607,250 LBS 30/50 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:9034 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/8/2006Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 724
CALC_BBLS_H2O 724
CALC_MCF_GAS 931
CASING_PRESS 2180
MCF_GAS 931
TUBING_PRESS 1155
Perforation Data:
Interval Top:6402 ft.# Of Holes:1180
Interval Bottom:8960 ft.Hole Size:0.42 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/3/2011                  Interval Top: 6402 ft.    Interval Bottom: 8017 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:9/28/2006Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/22/2006
Treatment Summary:STAGE 1: WFCM-FRAC W/38,240 BBL OF 2% KCL, 1,519,000 LBS OF 30/70 SAND AND 483,550 LBS OF 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:6402 ft.# Of Holes:912
Interval Bottom:8017 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)14
Total Gas Produced (MCF)10186
GOR727571
GOR DeterminationMCFE
Average BOE per Day4.853
Average MCFE per Day28.137

 Federal Financial Assurance  i

 Tribal Well  i No
