Wellbore #00 Wellbore Classification: GW Status: PR - 7/1/2024 Measured TD: 10036 ft. Vertical TD: 9979 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20061774 | Expiration Date: | 6/8/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 330 FNL 330 FWL | | Bottom Hole Location: | Sec:27 Twp: 5S 95W | Footage: 330 FNL 330 FWL | | Proposed Depth/Form: | 10192 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15, 51, Unit Acreage: , Drill Unit: |
| | |

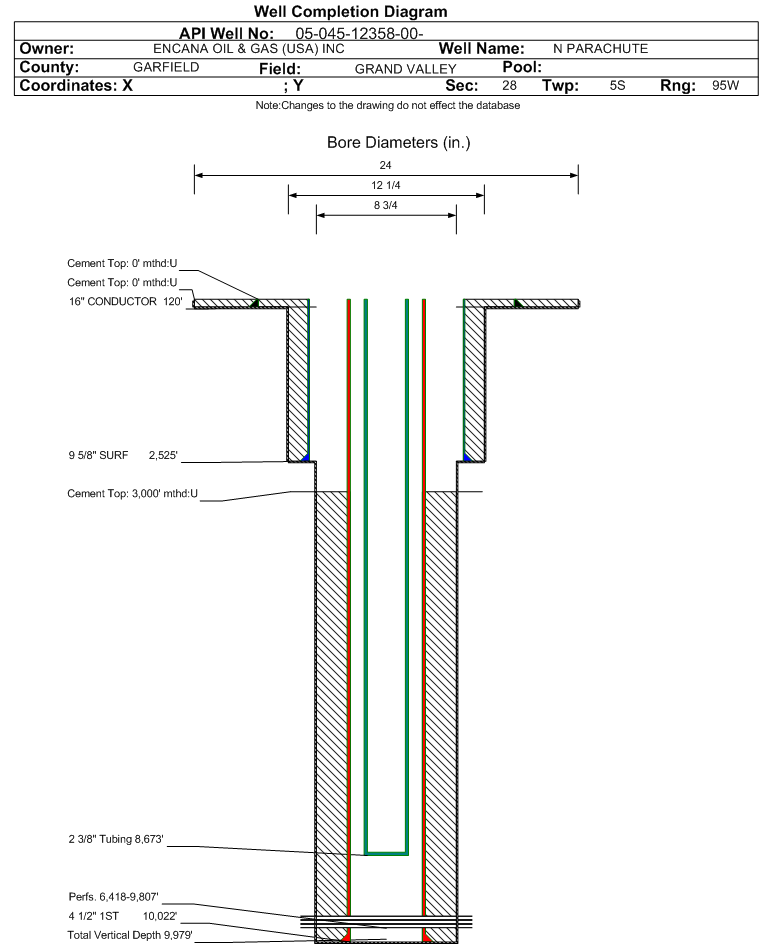

| Wellbore Completed | | Completion Date: | 11/19/2006 | | Spud Date: | 11/3/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 10036 ft. | Measured PB depth: | 10022 ft. | | True Vertical TD: | 9979 ft. | True Vertical PB depth: | 10036 ft. | | Top PZ Location: | Sec: Twp: | Footage: 330 FNL 330 FWL | | Bottom Hole Location: | Sec:27 Twp: 5S 95W | Footage: 330 FNL 330 FWL | | Log Types: | MUD, CBL, ARRAY INDUCTION | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: 120 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2525 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 660, Top: 0 ft., Bottom: 2535 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10022 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1435, Top: 3000 ft., Bottom: 10036 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 6091 ft. | 9919 ft. | N | N | | ROLLINS | 9919 ft. | 10036 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 7/1/2024 Interval Top: 6418 ft. Interval Bottom: 9807 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 1/27/2007 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/19/2007 | | Treatment Summary: | STAGES 01-09 TREATED WITH A TOTAL OF 10,938 BBLS OF CLEAR FRAC SLICKWATER AND 22,471 BBLS OF SLICKWATER WITH 1,030,960 LBS 20-40 SAND AND 72 BBLS 15% HCL |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8673 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/18/2007 | Test Method: | | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CALC_MCF_GAS | 887 | | MCF_GAS | 887 |
| | Perforation Data: | | Interval Top: | 6418 ft. | # Of Holes: | 249 | | Interval Bottom: | 9807 ft. | Hole Size: | 0.43 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 58 |
| Total Gas Produced (MCF) | 11110 |
| GOR | 191551 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.413 |
| Average MCFE per Day | 31.361 |
| Federal Financial Assurance | i | |
|
|
