Wellbore #00 Wellbore Classification: GW Status: PR - 8/1/2021 Measured TD: 8970 ft. Vertical TD: 8376 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/1/2021 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20061803 | Expiration Date: | 6/4/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2987 FNL 990 FEL | | Bottom Hole Location: | Sec:4 Twp: 6S 96W | Footage: 2987 FNL 990 FEL | | Proposed Depth/Form: | 9557 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15, 51, Unit Acreage: , Drill Unit: |
| | |

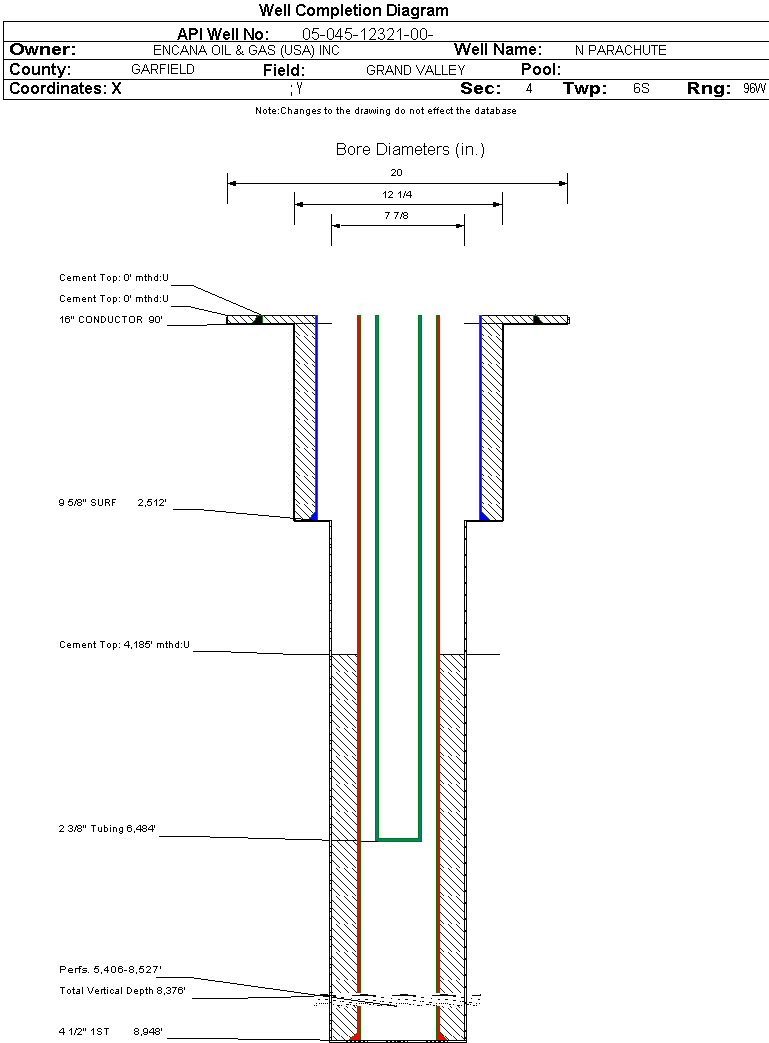

| Wellbore Completed | | Completion Date: | 8/30/2006 | | Spud Date: | 8/16/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 8970 ft. | Measured PB depth: | 8905 ft. | | True Vertical TD: | 8376 ft. | True Vertical PB depth: | 8311 ft. | | Top PZ Location: | Sec:4 Twp: 6S 96W | Footage: 2958 FNL 1093 FEL | | Bottom Hole Location: | Sec:4 Twp: 6S 96W | Footage: 2958 FNL 1093 FEL | | Log Types: | MUDLOG & CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 90 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 90 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2512 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 700, Top: 0 ft., Bottom: 2512 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8948 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1372, Top: 4185 ft., Bottom: 8948 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 5322 ft. | 8814 ft. | N | N | | ROLLINS | 8814 ft. | 8970 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 8/1/2021 Interval Top: 5406 ft. Interval Bottom: 8527 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 1/8/2007 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/23/2007 | | Treatment Summary: | STAGES 1-9 TREATED WITH A TOTAL OF: 55,512 BBLS OF SLICKWATER, 1,708,071 LBS 20-40 SAND AND 64 BBLS OF 15% HCL |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6484 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/23/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CASING_PRESS | 747 | | MCF_GAS | 466 | | TUBING_PRESS | 367 |
| | Perforation Data: | | Interval Top: | 5406 ft. | # Of Holes: | 207 | | Interval Bottom: | 8527 ft. | Hole Size: | 0.43 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 46 |
| Total Gas Produced (MCF) | 8393 |
| GOR | 182456 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.088 |
| Average MCFE per Day | 23.722 |
| Federal Financial Assurance | i | |
|
|
