Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-12317		Well Classification: GW	Status: PR - 9/1/2021
Well Name/No:	N.PARACHUTE #MF 18C N04 696 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	QB ENERGY OPERATING LLC - 10844 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PR	Status Date	9/1/2021
FacilityID:	284965	LocationID:	335598
County:	GARFIELD #045	Location:	NESW 4 6S96W 6
Field:	GRAND VALLEY - #31290	Elevation:	5862 ft.
Basin:	PICEANCE BASIN
Planned Location:	1828FSL 2400 FWL	Lat/Long: 39.551733 / -108.112161	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.551728 / -108.112256	Lat/Long Source: Field Measured

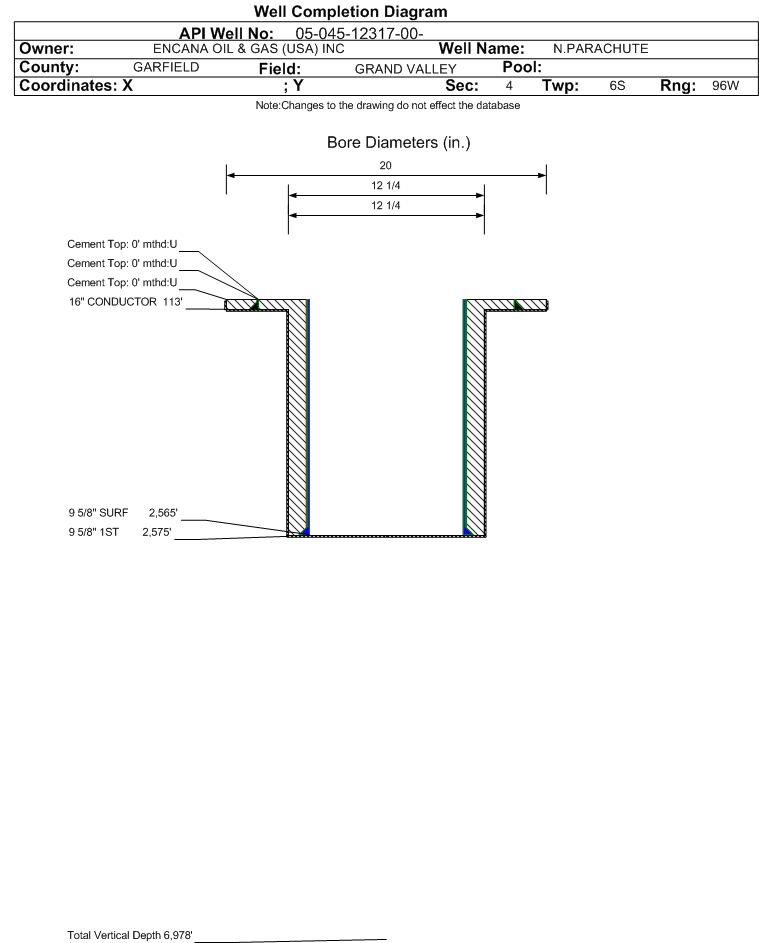

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: AB - 11/17/2006 Measured TD: 7036 ft. Vertical TD: 6978 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW AB - 11/17/2006
Wellbore Permit			DIRECTIONAL
Permit #:	20061793	Expiration Date:	6/4/2007
Proposed Top PZ Location:	Sec: Twp:	Footage: 330 FSL 2310 FEL
Bottom Hole Location:	Sec:4 Twp: 6S 96W	Footage: 330 FSL 2310 FEL
Proposed Depth/Form:	9292 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15, 51, Unit Acreage: , Drill Unit:
Casing:	String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 90 ft., Weight: , Citings Type: PLANNED
Cement:	Sacks: 6, Top: 0 ft., Bottom: 90 ft.
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 2500 ft., Weight: 36 , Citings Type: PLANNED
Cement:	Sacks: 2000, Top: 0 ft., Bottom: 2500 ft.
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 9292 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:	Sacks: 1100, Top: 200 ft., Bottom: 9292 ft.

Wellbore Completed
Completion Date:	11/17/2006
Spud Date:	10/26/2006	Spud Date Is:	ACTUAL
Measured TD:	7036 ft.	Measured PB depth:	5412 ft.
True Vertical TD:	6978 ft.	True Vertical PB depth:	5650 ft.
Bottom Hole Location:	Sec:4 Twp: 6S 96W	Footage: 330 FSL 2310 FEL
Log Types:	NO LOGS RUN....LOST BIT IN HOLE
Casing:	String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 113 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 9, Top: 0 ft., Bottom: 113 ft., Determination Method: CALC
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2565 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 660, Top: 0 ft., Bottom: 2575 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 2575 ft., Weight: 36 , Citings Type: ACTUAL
Cement:	Sacks: 660, Top: , Bottom: 2575 ft., Determination Method:
No formation data to display.

Sidetrack #01 Wellbore Classification: GW Status: PR - 9/1/2021 Measured TD: 8450 ft. Vertical TD: 8203 ft.

Wellbore Data for Sidetrack #01		Wellbore Classification: GW PR - 9/1/2021
Wellbore Permit			DIRECTIONAL
Permit #:	20066026	Expiration Date:	12/13/2007
Proposed Top PZ Location:	Sec: Twp:	Footage: 330 FSL 2310 FEL
Bottom Hole Location:	Sec:4 Twp: 6S 96W	Footage: 330 FSL 2310 FEL
Proposed Depth/Form:	9247 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEE	Surface Owner:	Not available
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15 , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:	11/26/2006
Spud Date:	10/26/2006	Spud Date Is:	ACTUAL
Measured TD:	8450 ft.	Measured PB depth:	8396 ft.
True Vertical TD:	8203 ft.	True Vertical PB depth:
Top PZ Location:	Sec:4 Twp: 6S 96W	Footage: 538 FSL 2568 FEL
Bottom Hole Location:	Sec:4 Twp: 6S 96W	Footage: 538 FSL 2568 FEL
Log Types:	CBL; MUDLOG (3)
Casing:	String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 113 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: , Top: 0 ft., Bottom: 113 ft., Determination Method: CALC
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2565 ft., Weight: 36 , Citings Type: ACTUAL
Cement:	Sacks: 660, Top: 0 ft., Bottom: 2575 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8441 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 1015, Top: 2100 ft., Bottom: 8450 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WILLIAMS FORK	4838 ft.	8218 ft.	N	N
ROLLINS	8218 ft.	8450 ft.	N	N

Formation WMFK Formation Classification: GW Status: PR - 9/1/2021 Interval Top: 4886 ft. Interval Bottom: 8125 ft.

Completed Information for Formation WILLIAMS FORK

1st Production Date:	3/1/2007	Choke Size:	0.375 in.
Formation Name:	WILLIAMS FORK	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	2/14/2007
Treatment Summary:	STAGES 1-10 TREATED WITH A TOTAL OF:55,233 BBLS SLICKWATER WITH 2,016,028 LBS 20-40 SAND WITH 36 BBLS 15 % HCL

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7337 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	9/5/2007	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1170
CASING_PRESS	851
MCF_GAS	1222
TUBING_PRESS	323

Perforation Data:
Interval Top:	4886 ft.	# Of Holes:	300
Interval Bottom:	8125 ft.	Hole Size:	0.41 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

October 2024 - September 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	98
Total Gas Produced (MCF)	18274
GOR	186469
GOR Determination	MCFE
Average BOE per Day	8.900
Average MCFE per Day	51.632

Federal Financial Assurance

Tribal Well
