Wellbore #00 Wellbore Classification: GW Status: PR - 4/6/2006 Measured TD: 8425 ft. Vertical TD: 8206 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/6/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20061794 | Expiration Date: | 6/4/2007 | | Proposed Top PZ Location: | Sec:4 Twp: 6S 96W | Footage: 1083 FSL 1802 FEL | | Bottom Hole Location: | Sec:4 Twp: 6S 96W | Footage: 1083 FSL 1802 FEL | | Proposed Depth/Form: | 9232 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15, 51, Unit Acreage: , Drill Unit: |
| | |

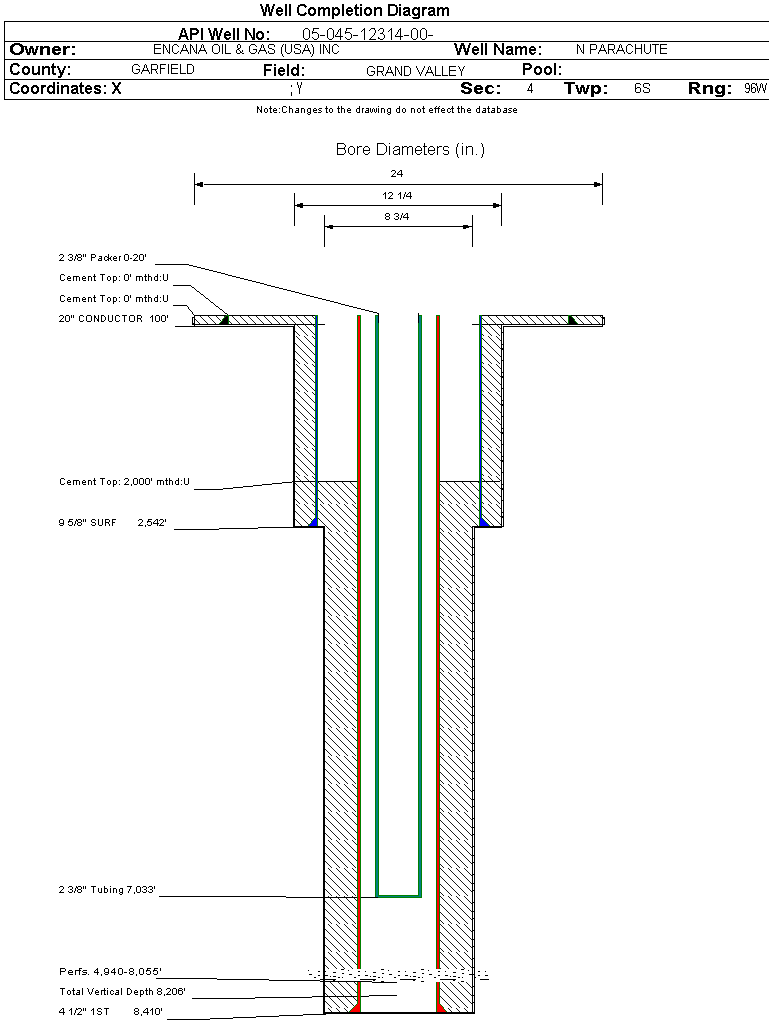

| Wellbore Completed | | Completion Date: | 9/25/2006 | | Spud Date: | 9/14/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 8425 ft. | Measured PB depth: | 8365 ft. | | True Vertical TD: | 8206 ft. | True Vertical PB depth: | 8146 ft. | | Top PZ Location: | Sec:4 Twp: 6S 96W | Footage: 1083 FSL 1802 FEL | | Bottom Hole Location: | Sec:4 Twp: 6S 96W | Footage: 1083 FSL 1802 FEL | | Log Types: | CBL AND MUDLOG | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 20 in., Top: 0 ft., Depth: 100 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 100 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2542 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 661, Top: 0 ft., Bottom: 2554 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8410 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1582, Top: 2000 ft., Bottom: 8425 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 4856 ft. | 8277 ft. | N | N | | ROLLINS | 8277 ft. | 8425 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 2/1/2011 Interval Top: 4940 ft. Interval Bottom: 8055 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 1/2/2007 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/28/2006 | | Treatment Summary: | STAGES 1-9 TREATED WITH A TOTAL OF 58,618 BBLS OF SLICKWATER, 1,812,787 LBS 20-40 SAND AND 60 BBLS OF 15% HCI |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7033 ft. | | Tubing Packer Depth: | 0 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/3/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 0 | | BTU_GAS | 1170 | | CASING_PRESS | 913 | | MCF_GAS | 753 | | TUBING_PRESS | 264 |
| | Perforation Data: | | Interval Top: | 4940 ft. | # Of Holes: | 216 | | Interval Bottom: | 8055 ft. | Hole Size: | 0.43 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 102 |
| Total Gas Produced (MCF) | 18067 |
| GOR | 177127 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.808 |
| Average MCFE per Day | 51.089 |
| Federal Financial Assurance | i | |
|
|
