Wellbore #00 Wellbore Classification: GW Status: PR - 4/3/2006 Measured TD: 7263 ft. Vertical TD: 7075 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/3/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20061563 | Expiration Date: | 5/30/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 495 FSL 439 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 95W | Footage: 495 FSL 439 FEL | | Proposed Depth/Form: | 7240 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 495-3 , Unit Acreage: 320, Drill Unit: S2 |
| | |

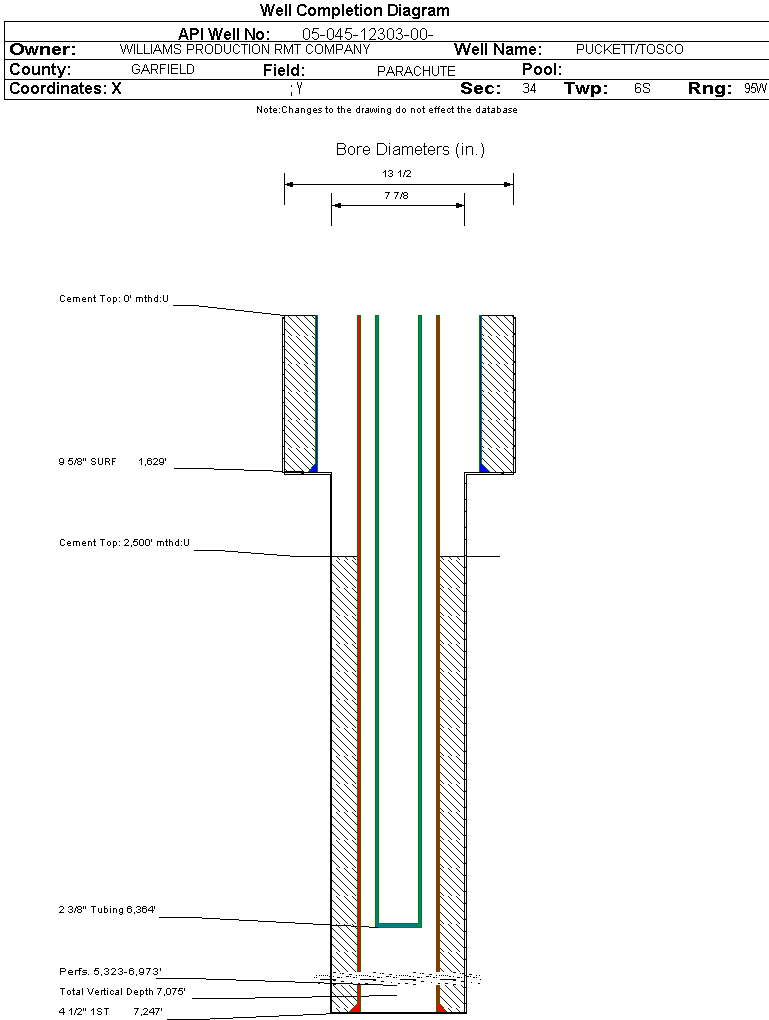

| Wellbore Completed | | Completion Date: | 11/29/2006 | | Spud Date: | 11/15/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 7263 ft. | Measured PB depth: | 7129 ft. | | True Vertical TD: | 7075 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:34 Twp: 6S 95W | Footage: 533 FNL 416 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 95W | Footage: 533 FNL 416 FEL | | Log Types: | CBL; HRI/SD/DSN | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1629 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 443, Top: 0 ft., Bottom: 1629 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7247 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 906, Top: 2500 ft., Bottom: 7247 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1395 ft. | | N | N | | FORT UNION | 1726 ft. | | N | N | | MESAVERDE | 3743 ft. | | N | N | | CAMEO | 6411 ft. | | N | N | | ROLLINS | 7058 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 2/2/2007 Interval Top: 5323 ft. Interval Bottom: 6973 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/2/2007 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/30/2006 | | Treatment Summary: | 3022 GALS 7 1/2% HCL; 757,900# 30/50 SAND; 17,155 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6364 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/2/2007 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CASING_PRESS | 1500 | | MCF_GAS | 742 | | TUBING_PRESS | 1425 |
| | Perforation Data: | | Interval Top: | 5323 ft. | # Of Holes: | 118 | | Interval Bottom: | 6973 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 18 |
| Total Gas Produced (MCF) | 14624 |
| GOR | 812444 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.958 |
| Average MCFE per Day | 40.371 |
| Federal Financial Assurance | i | |
|
|
