COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-12293		Well Classification: GW Status: PR - 3/30/2006
Well Name/No:NORTH BANK #B2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/30/2006
FacilityID:284841LocationID:311621
County:GARFIELD #045Location:NENE 12 6S93W 6
Field:MAMM CREEK - #52500Elevation:5413 ft.
Basin:PICEANCE BASIN
Planned Location:1308FNL  587 FELLat/Long: 39.544607 / -107.717280Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.544601 / -107.717315Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/30/2006             Measured TD: 8986 ft.    Vertical TD: 8941 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/30/2006
Wellbore PermitDIRECTIONAL
Permit #:20061466 Expiration Date:5/22/2007
Proposed Top PZ Location:Sec: Twp: Footage: 1998 FNL  830 FEL
Bottom Hole Location:Sec:12 Twp: 6S 93W Footage: 1998 FNL  830 FEL
Proposed Depth/Form:8927 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: COZZ , Formation: COZZETTE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: CRCRN , Formation: CORCORAN , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-16 , Unit Acreage: , Drill Unit: ALL
Wellbore Completed
Completion Date:6/23/2006
Spud Date:5/25/2006Spud Date Is:ACTUAL
Measured TD:8986 ft.Measured PB depth:8940 ft.
True Vertical TD:8941 ft.True Vertical PB depth:8895 ft.
Top PZ Location:Sec:12 Twp: 6S 93WFootage: 1962 FNL  827 FEL
Bottom Hole Location:Sec:12 Twp: 6S 93WFootage: 1962 FNL  827 FEL
Log Types:SPECTRAL DENSITY/DUAL SPACED NEUTRON, INDUCTION, CBL/GR/CCL/TEMP

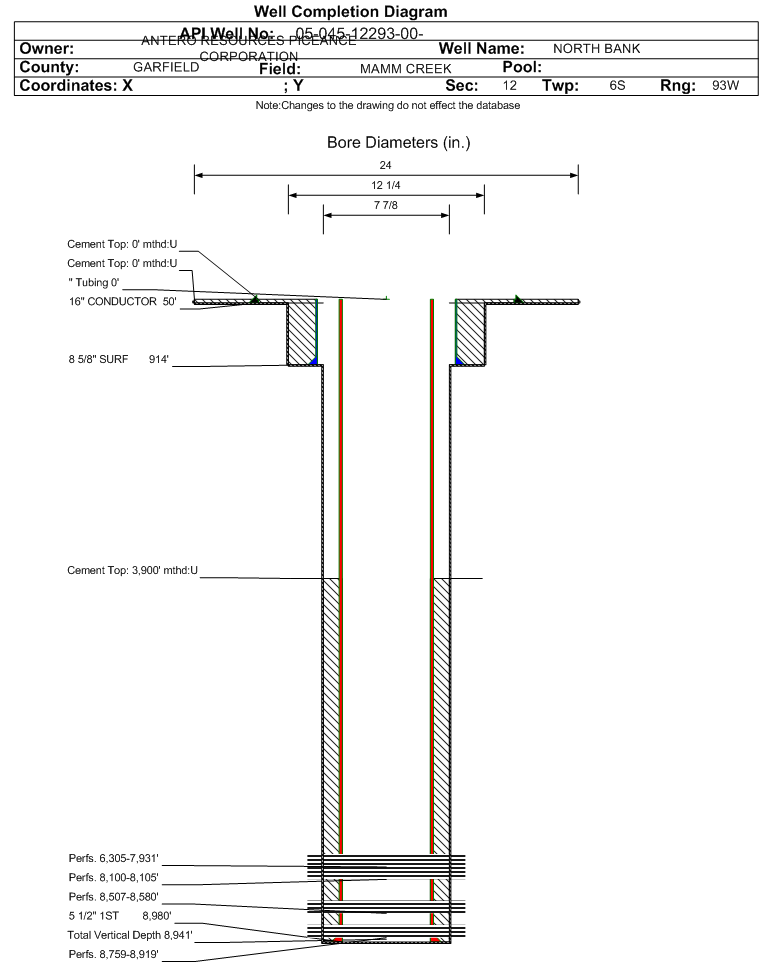

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 50 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 180, Top: 0 ft., Bottom: 50 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 914 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 385, Top: 0 ft., Bottom: 914 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8980 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 836, Top: 3900 ft., Bottom: 8980 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
MESAVERDE4287 ft.NN
COAL5205 ft.NN
CAMEO6928 ft.NN
ROLLINS7939 ft.NN
COZZETTE8490 ft.NN
CORCORAN8757 ft.NN

Formation CRCRN                   Formation Classification:  GW                   Status:  SI - 11/1/2025                 Interval Top: 8759 ft.    Interval Bottom: 8919 ft.

 Completed Information for Formation CORCORAN
1st Production Date:N/AChoke Size:
Formation Name:CORCORANCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/25/2006
Treatment Summary:STAGE 4: CORCORAN-FRAC WITH 3,617 BBLS OF 2% KCL, 174,000 LBS OF 30/70 SAND AND 58,000 LBS OF 20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CRCRN.
Perforation Data:
Interval Top:8759 ft.# Of Holes:232
Interval Bottom:8919 ft.Hole Size:0.42 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 7/8/2010                  Interval Top: 8507 ft.    Interval Bottom: 8580 ft.

 Completed Information for Formation COZZETTE
1st Production Date:N/AChoke Size:
Formation Name:COZZETTECommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:3/12/2010
Treatment Summary:A PORTION OF THE COZZETTE WAS T&A'D ON 03/12/2010, HOWEVER THERE ARE OPEN PERFORATIONS FROM 8507-8580.
Formation Treatment
Treatment Date:8/26/2006
Treatment Summary:STAGE 3: COZZETTE-FRAC WITH 5,705 BBLS OF KCL, 258,000 LBS OF 30/50 SAND AND 83,000 LBS OF 20/40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/25/2010Test Method:flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 51
BTU_GAS 1048
CALC_BBLS_H2O 51
CALC_MCF_GAS 97
CASING_PRESS 1218
MCF_GAS 97
TUBING_PRESS 958
Perforation Data:
Interval Top:8507 ft.# Of Holes:196
Interval Bottom:8580 ft.Hole Size:0.42 in.

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 3/30/2006                 Interval Top: 8100 ft.    Interval Bottom: 8105 ft.

 Completed Information for Formation ROLLINS
1st Production Date:9/12/2006Choke Size:
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/26/2006
Treatment Summary:STAGE 2: ROLLINGS-FRAC WITH 1,193 BBLS OF 2% KCL AND 27,700 LBS OF 30/70 SAND AND 4,500 LBS OF 30/50 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RLNS.
Perforation Data:
Interval Top:8100 ft.# Of Holes:20
Interval Bottom:8105 ft.Hole Size:0.42 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/30/2006                 Interval Top: 6305 ft.    Interval Bottom: 7931 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:9/12/2006Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/28/2006
Treatment Summary:STAGE 1: WFCM-FRAC WITH 25,045 BBLS OF 2% KCL, 277,200 LBS OF 30/70 SAND AND 90,800 LBS OF 30/50 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:6305 ft.# Of Holes:932
Interval Bottom:7931 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)48
Total Gas Produced (MCF)11978
GOR249541
GOR DeterminationMCFE
Average BOE per Day5.793
Average MCFE per Day33.600

 Federal Financial Assurance  i

 Tribal Well  i No
